Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Dome Lamp
>>
System Diagram
>>

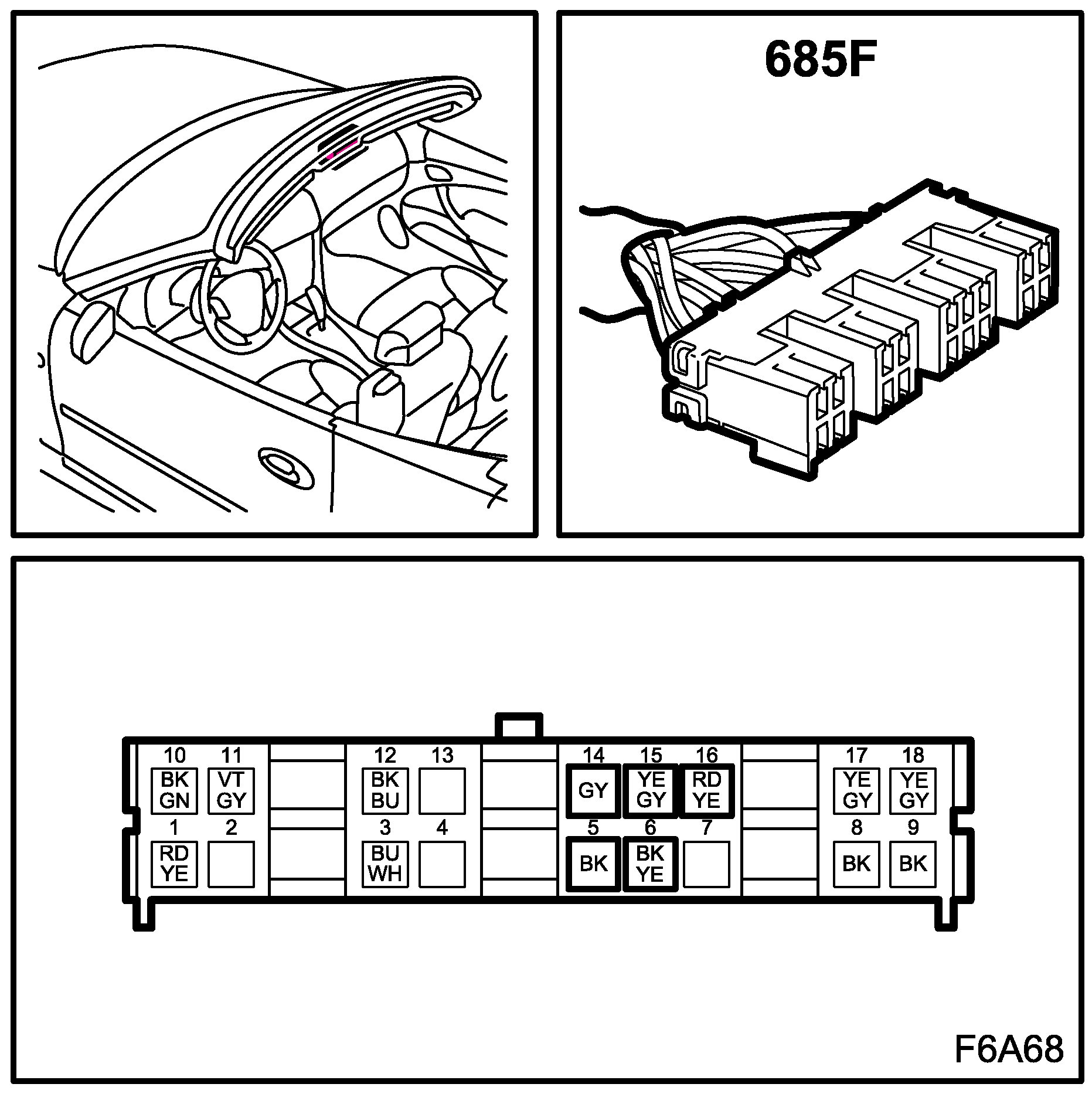

Front Dome Light Unit (685F)
>>
CV
CV
Front Dome Light Unit (685F)
Location:
in the roof by the windscreen
CV
Front Dome Light Unit (685F):
