Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Control Module >> Control Module, STC (565)

Control Module, STC (565)

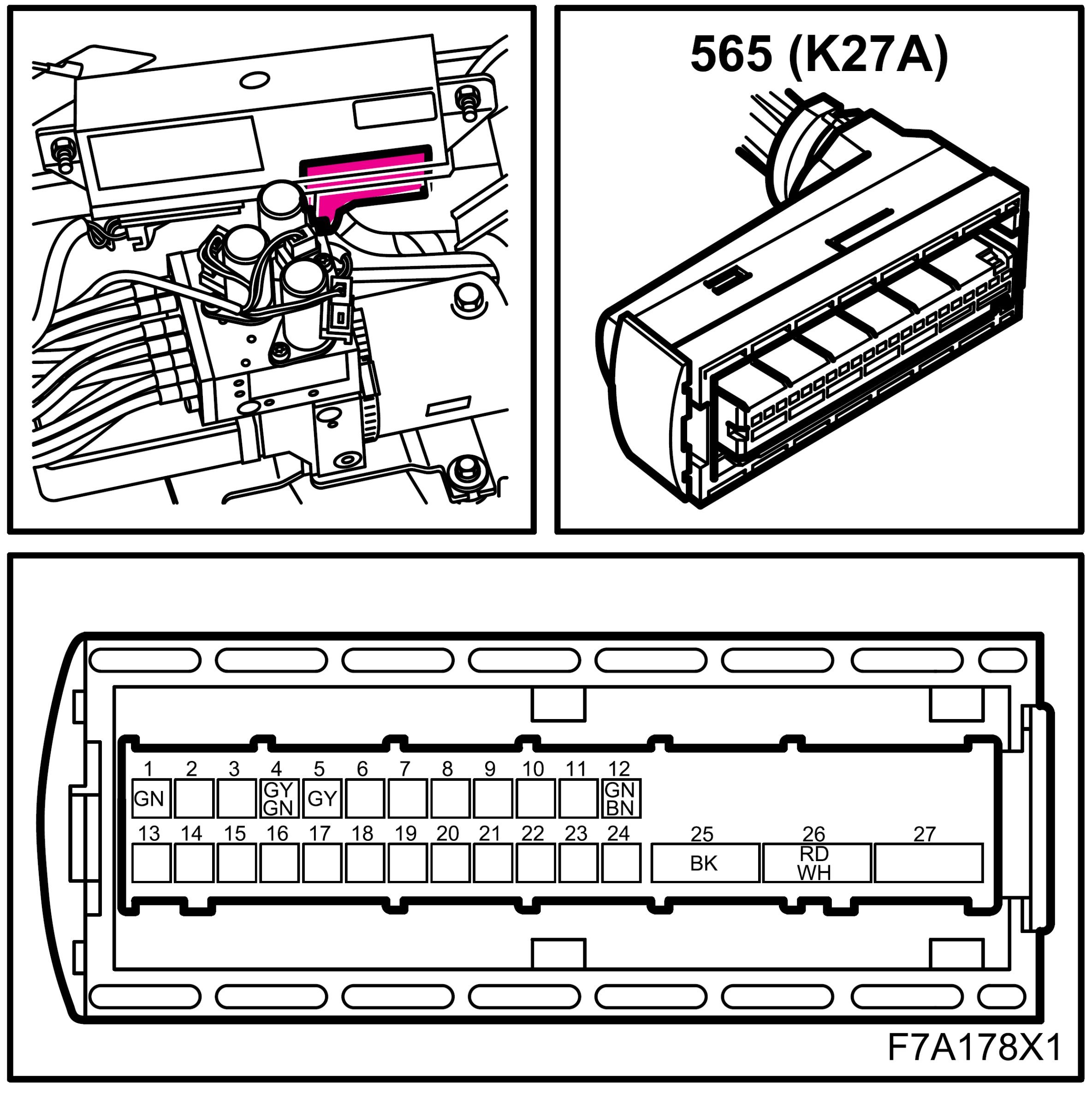

Control Module, STC (565):






Location: on the RH rear wheel housing. K27A

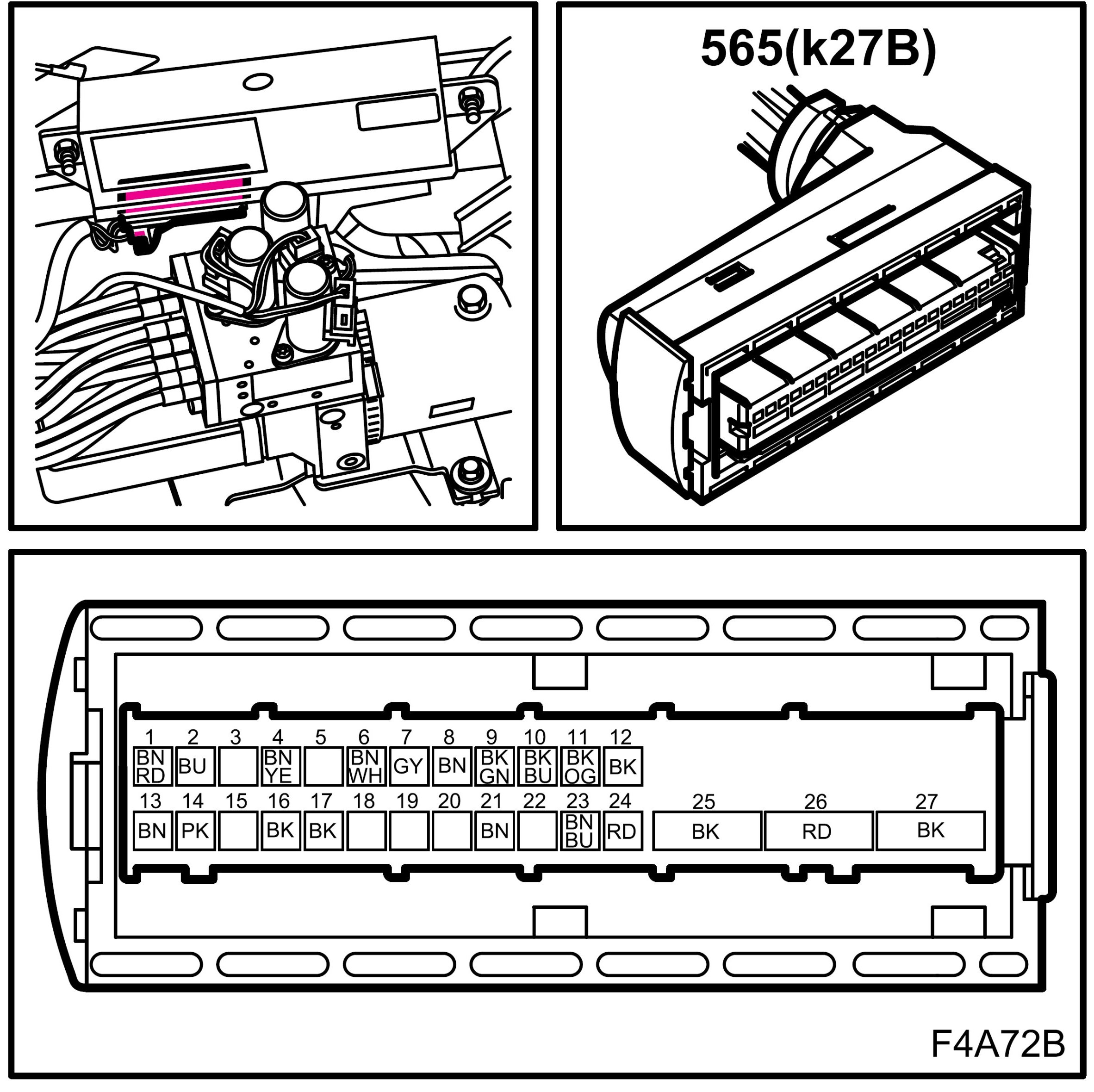

Control Module, STC (565):






Location: on the RH rear wheel housing. K27B
