Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T >> TCM Control Module, AF40 (502b)

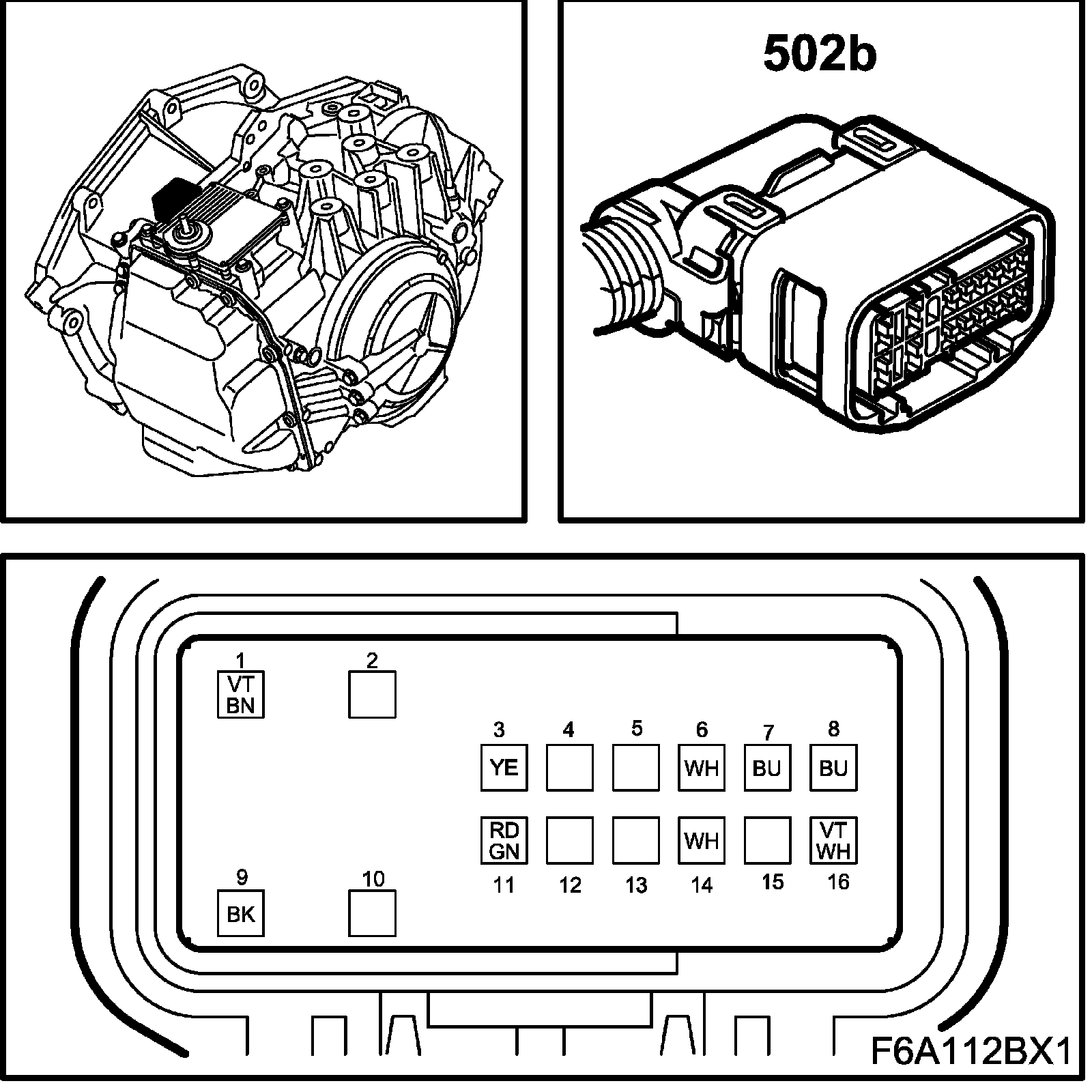

TCM Control Module, AF40 (502b)



Location: On transmission casing

K16


TCM Control Module, AF40 (502b):
