Connector H8-10
Connector H8-10

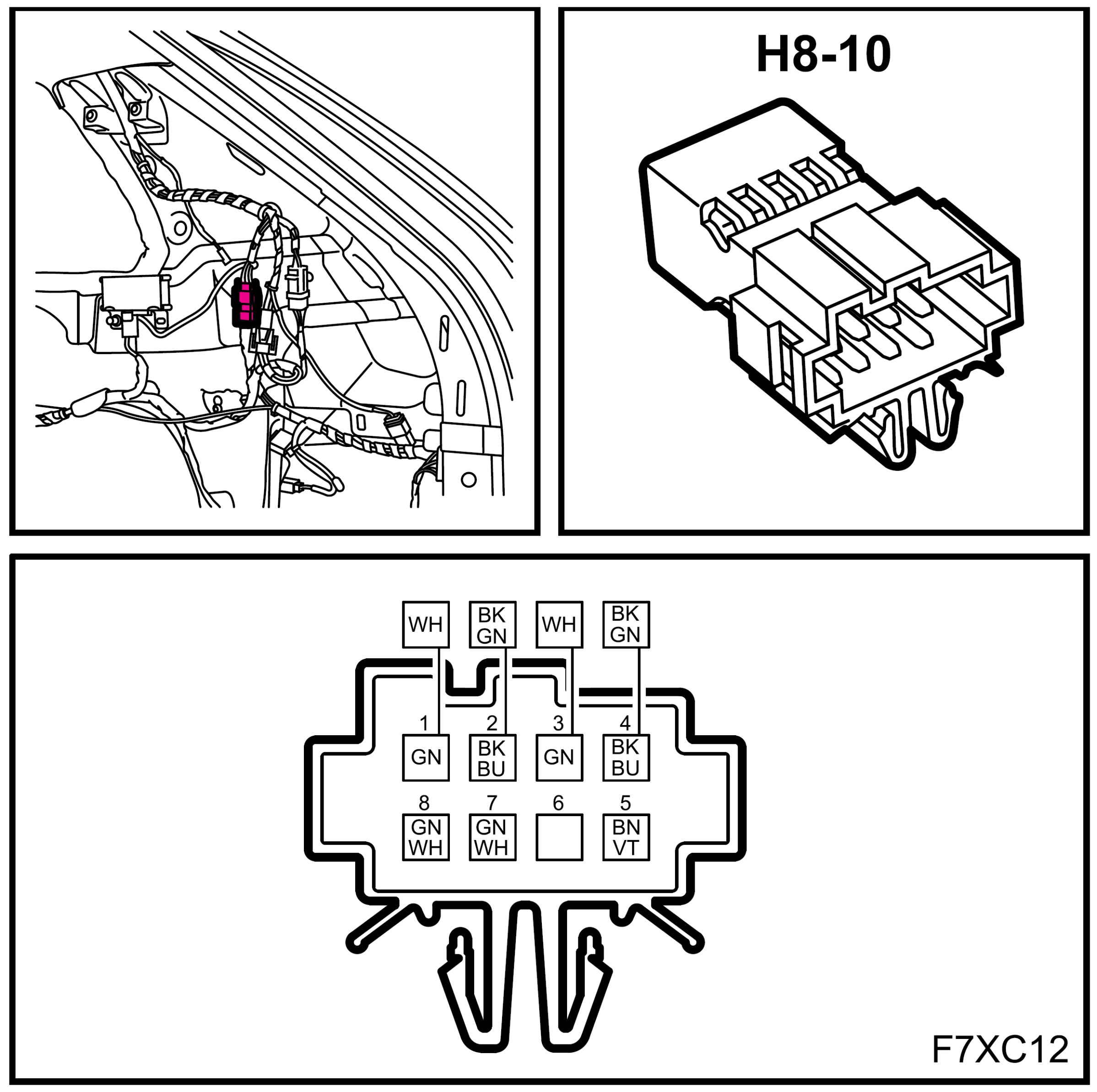

Connector H8-10:
Location:
on side under right-hand D-pillar closest to side window.
