Connector H7-1

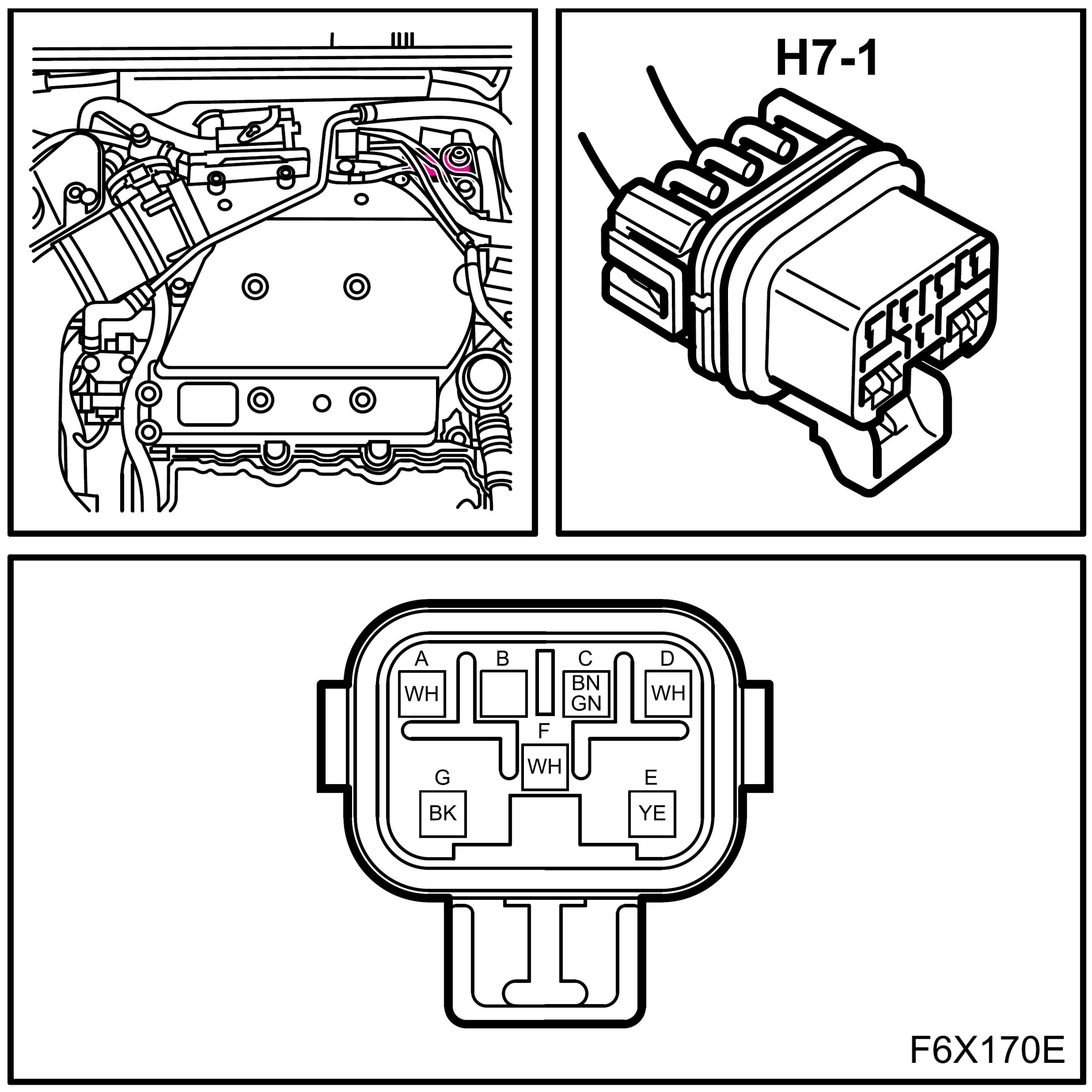

Connector H7-1:






Location: on engine at rear corner of upper intake manifold on gearbox side.
