Connector H10-3

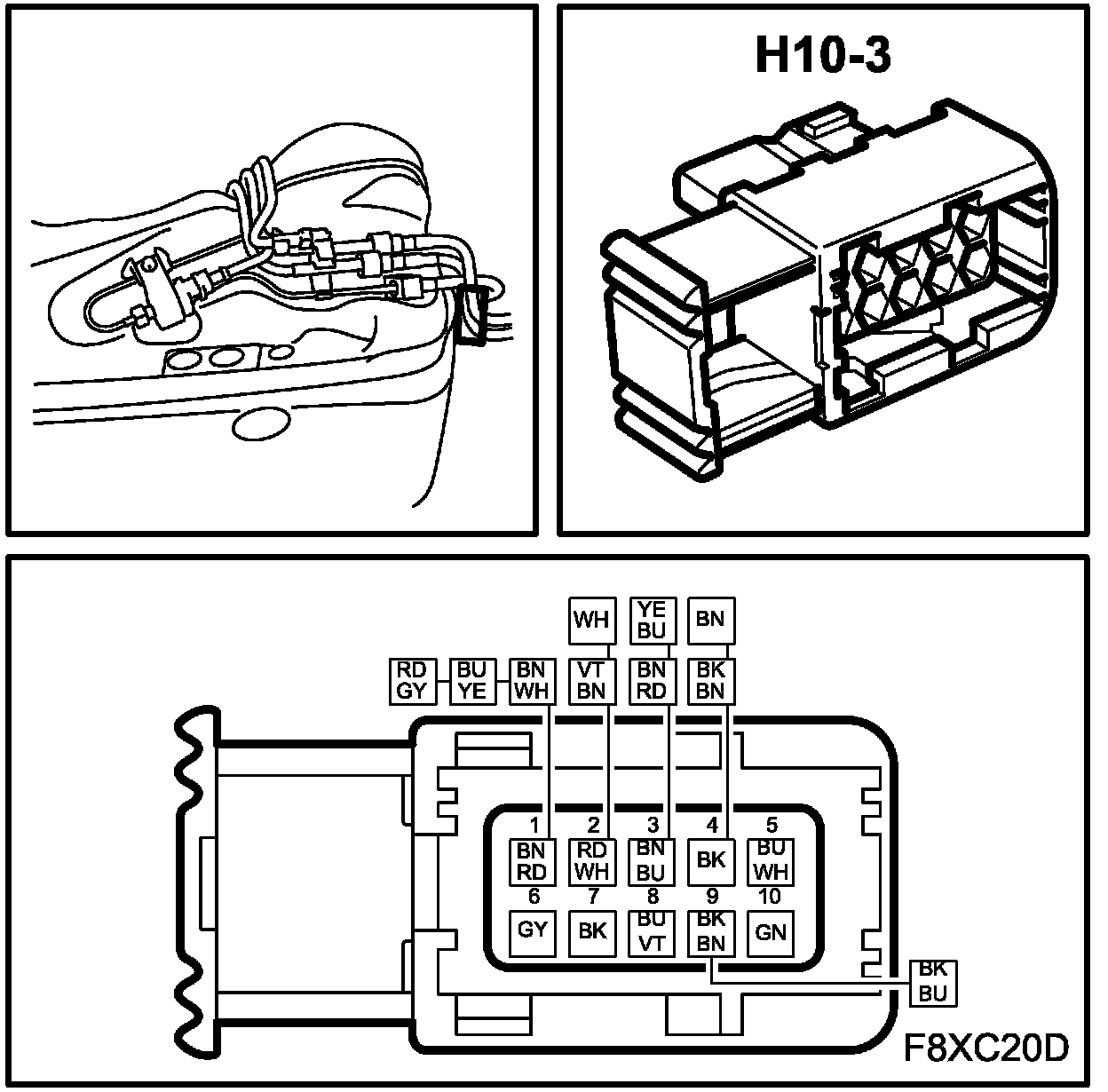

Fuel Tank

Location: on a bracket by the tank strap on the front edge of the fuel tank

Connector H10-3:

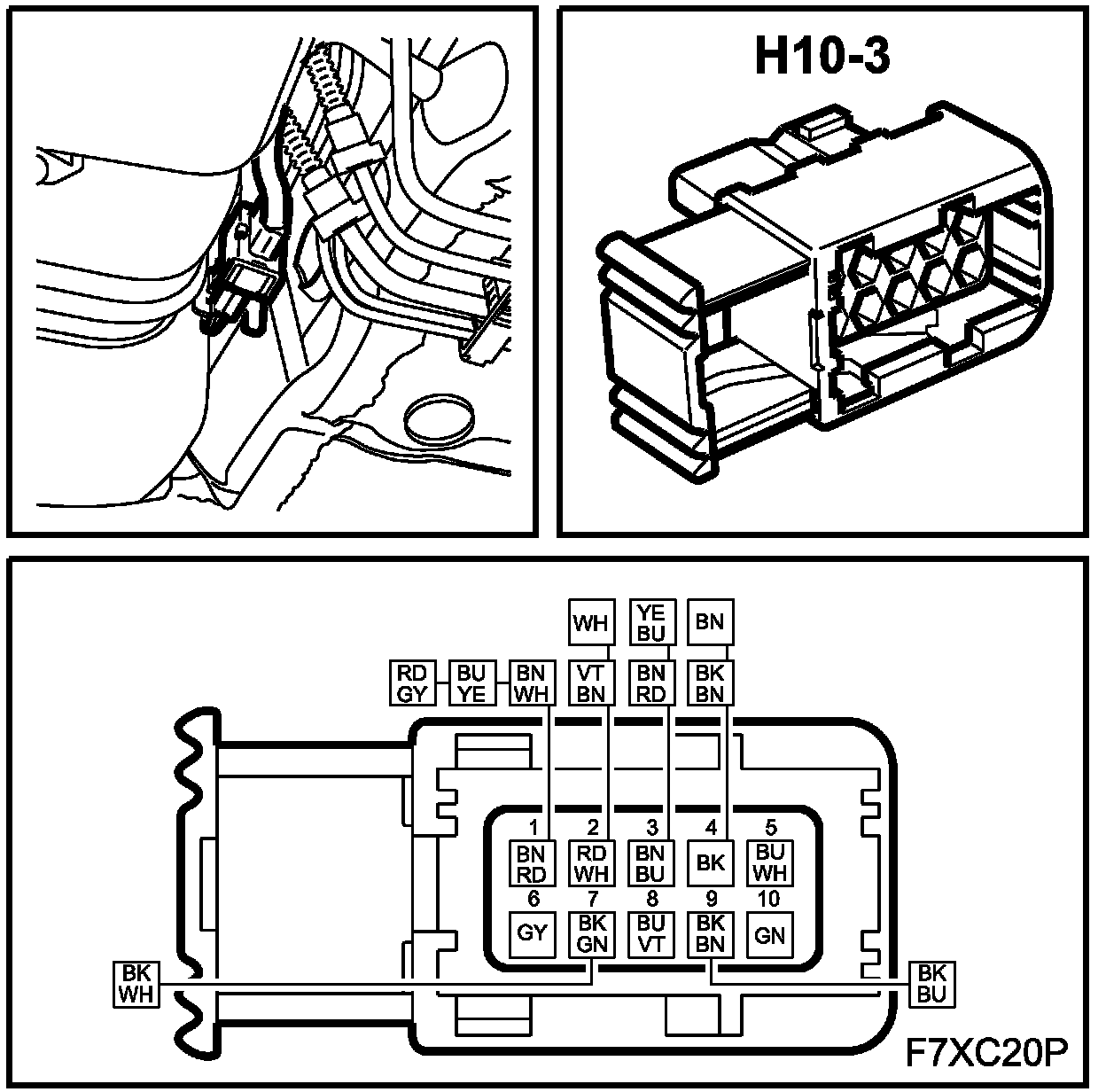

Diesel tank

Location: on the side of the tank

Connector H10-3:
