Center Mounted Brake Lamp
>>
4D
4D

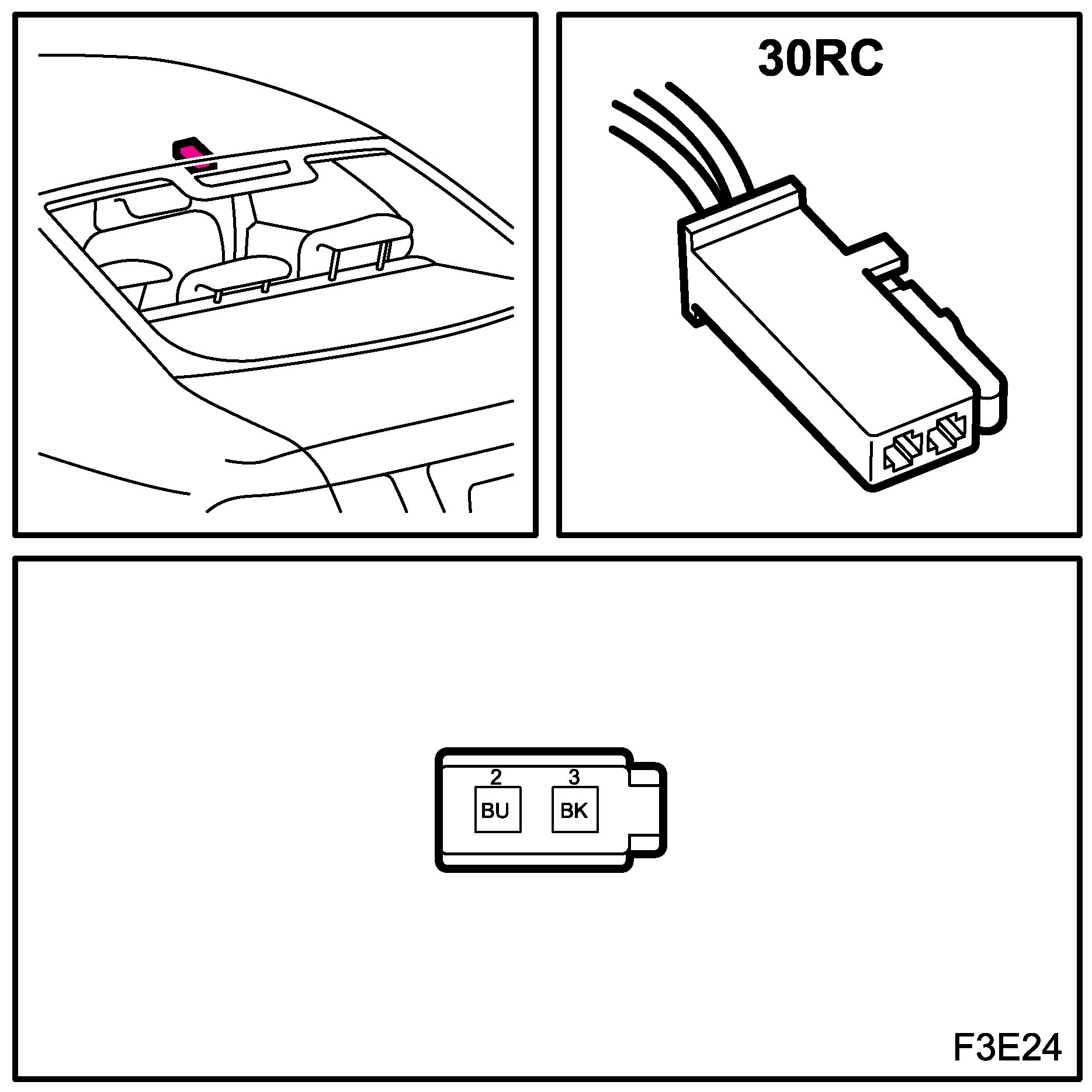

High Level Brake Light (30RC)
Location:
above rear screen
4D
High Level Brake Light (30RC):
