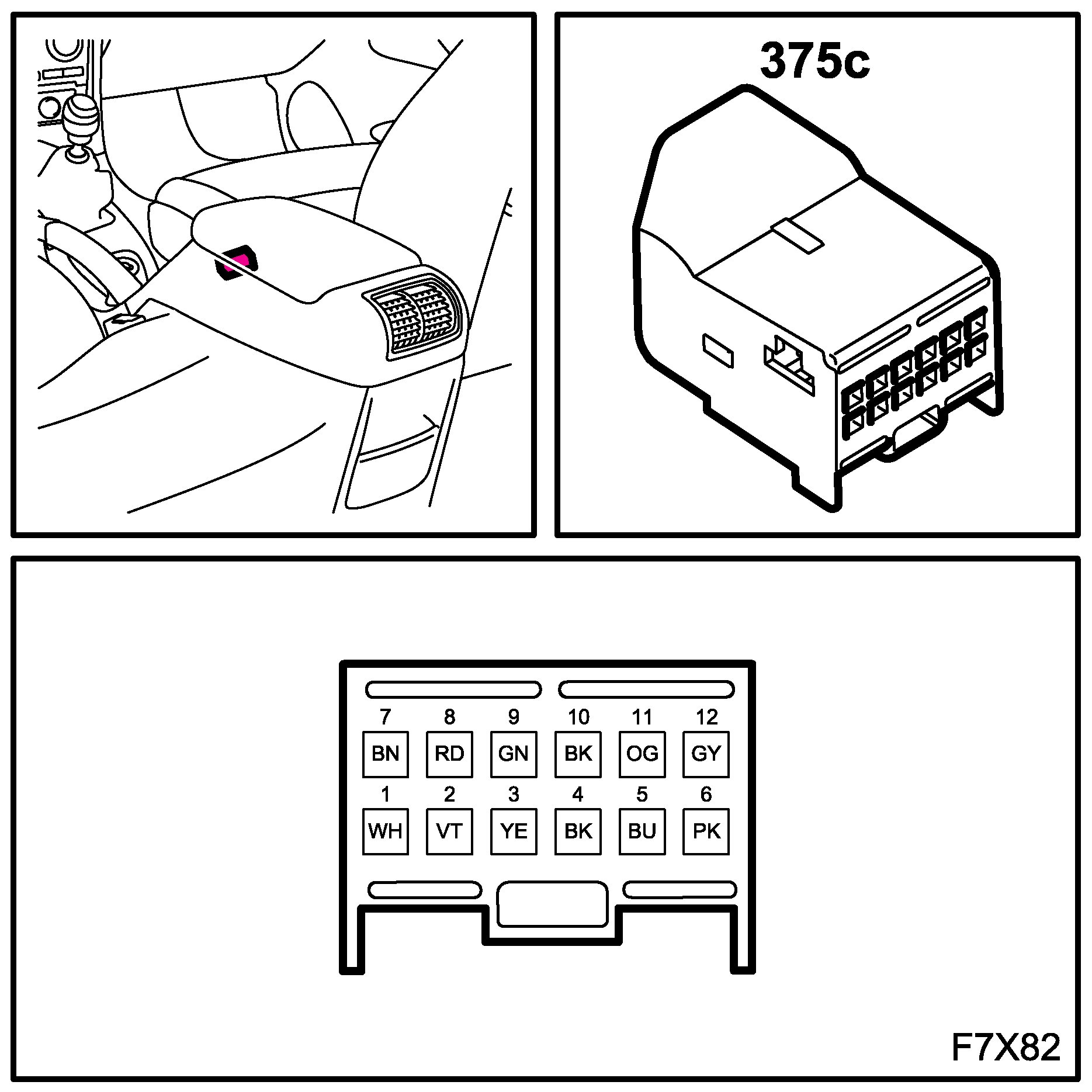

Mobile Phone Connection, Cradle (375c)



Mobile Phone Connection, Cradle (375c)

Location: in storage compartment between the seats


Mobile Phone Connection, Cradle (375c):
