9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
Communications Control Module
>>
UHP Unit (721)
UHP Unit (721)
UHP Unit (721)

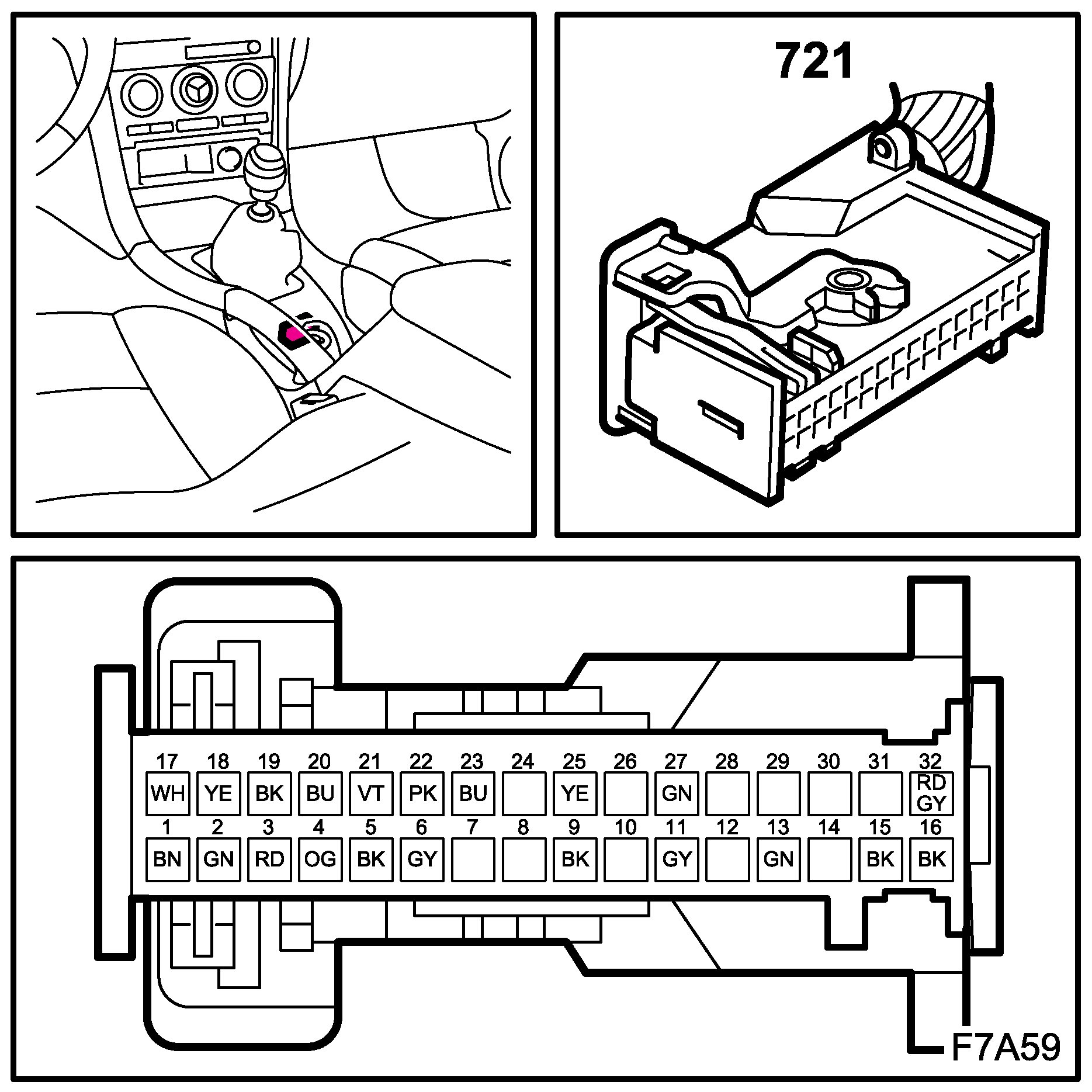

Location:
on the centre tunnel below the dashboard
UHP Unit (721):
