Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
System Diagram
>>

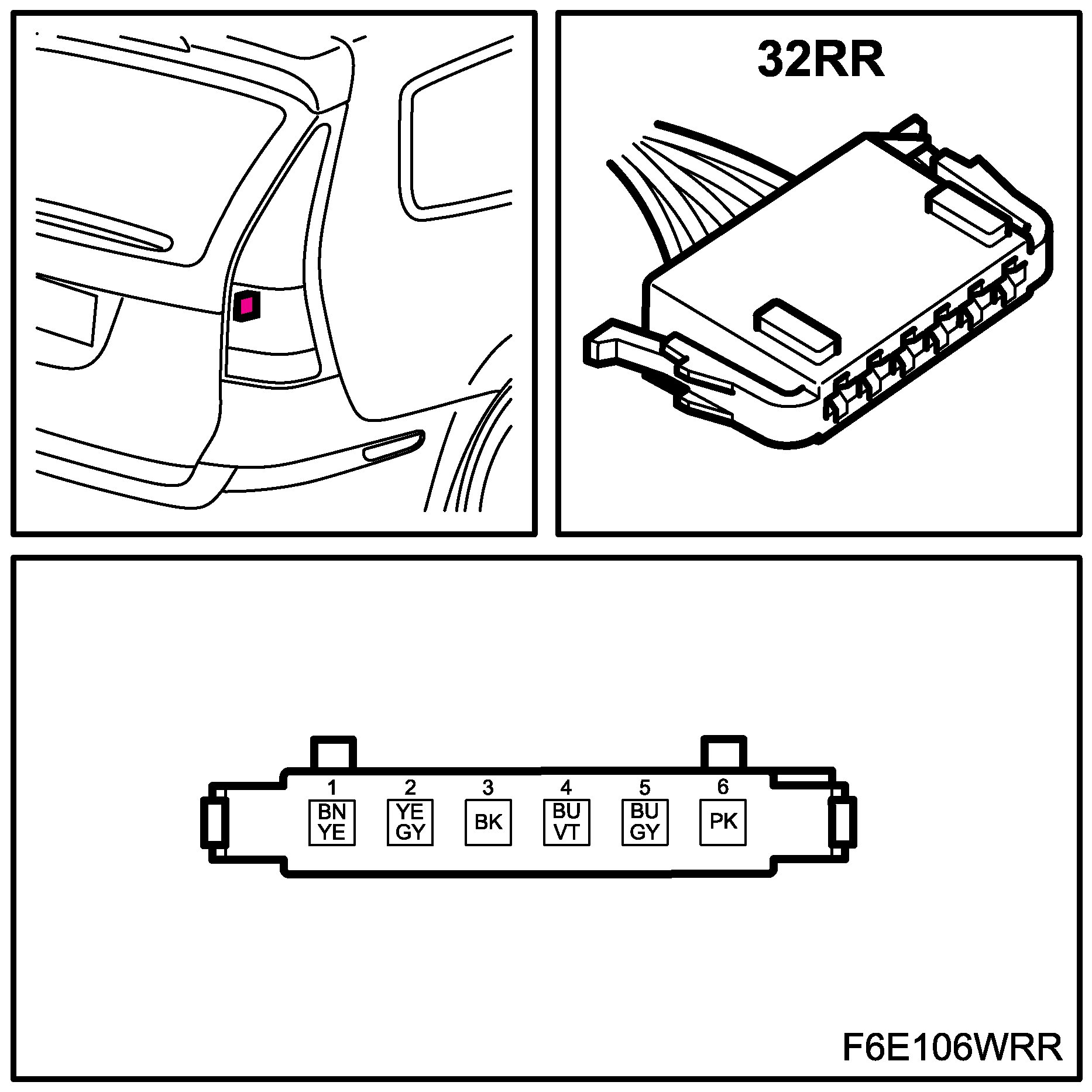

Right Reversing Light Bulb (32RR)
Right Reversing Light Bulb (32RR)
Right Reversing Light Bulb (32RR)
Location:
in the rear wing's light cluster
Right Reversing Light Bulb (32RR):
