Airbag Control Module (331)

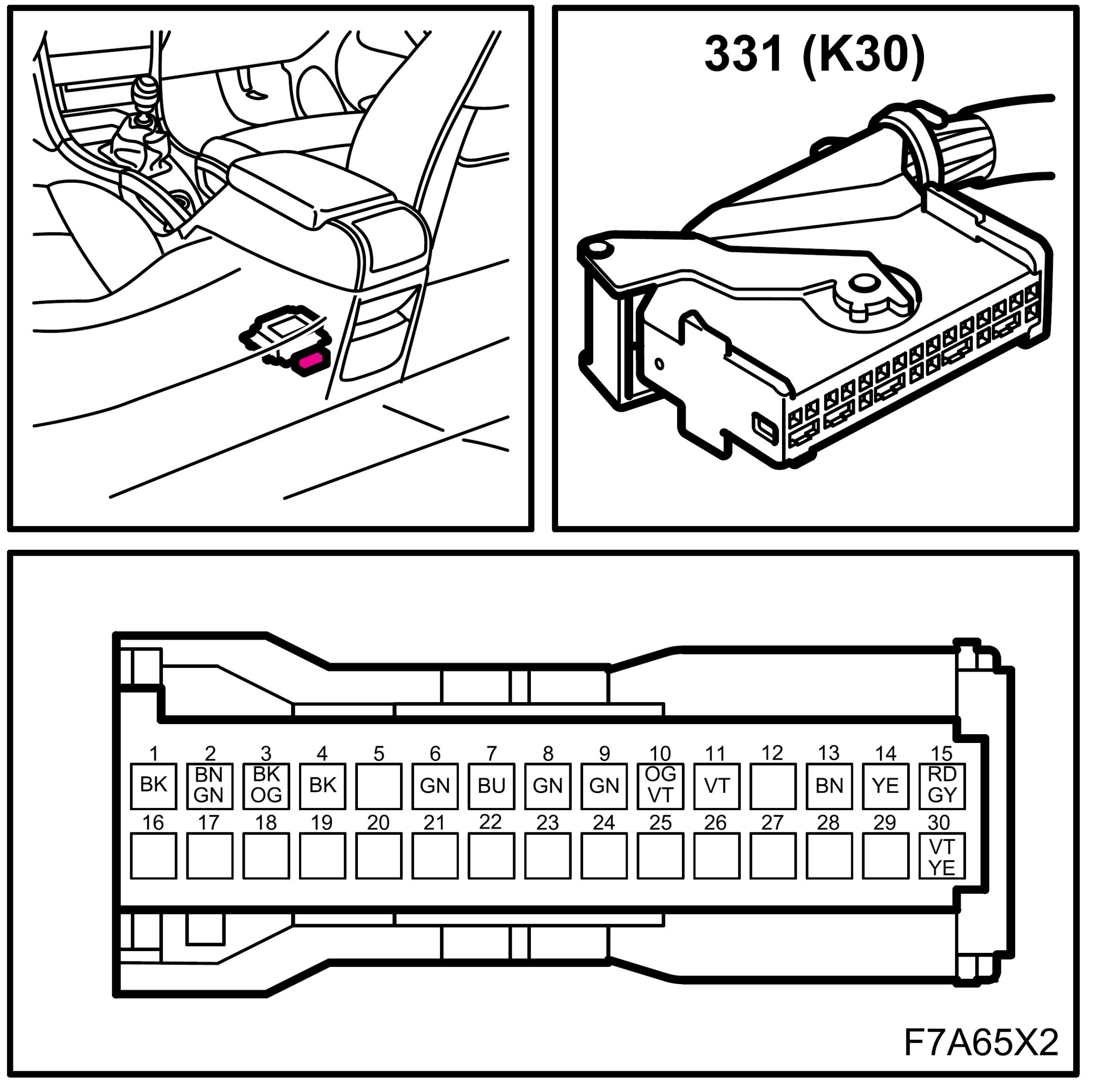

Air Bag Control Module (331):






Location: on the centre tunnel behind the gear selector unit. K30

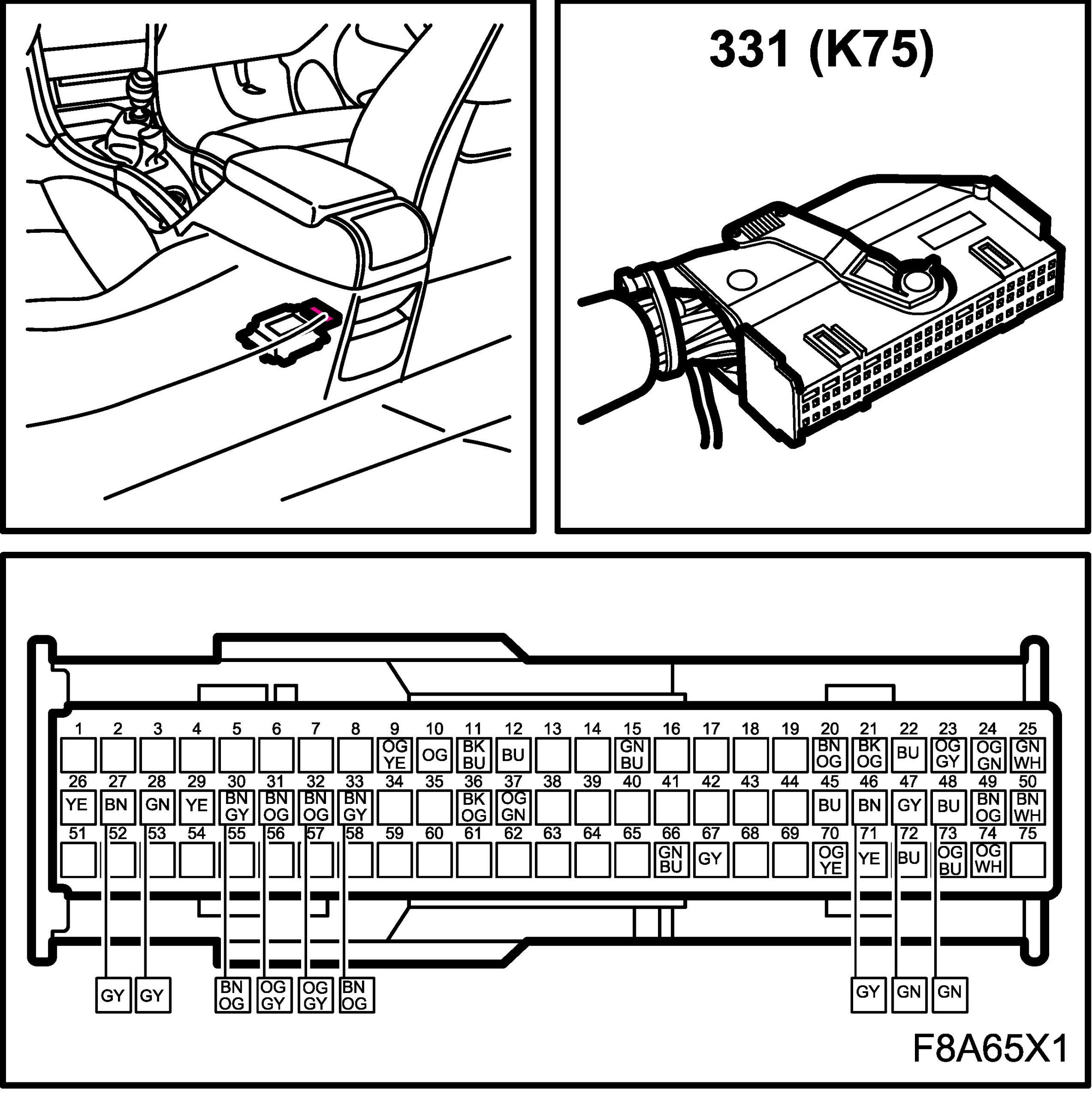

Air Bag Control Module (331):






Location: on the centre tunnel behind the gear selector unit. K75
