Poor Brake Servo Operation

Poor brake servo operation.





Fault symptom
Poor brakes.
Faulty function of the electric vacuum pump of the brake system.

Conditions
No leakage in vacuum system.
ME9

Diagnostic help

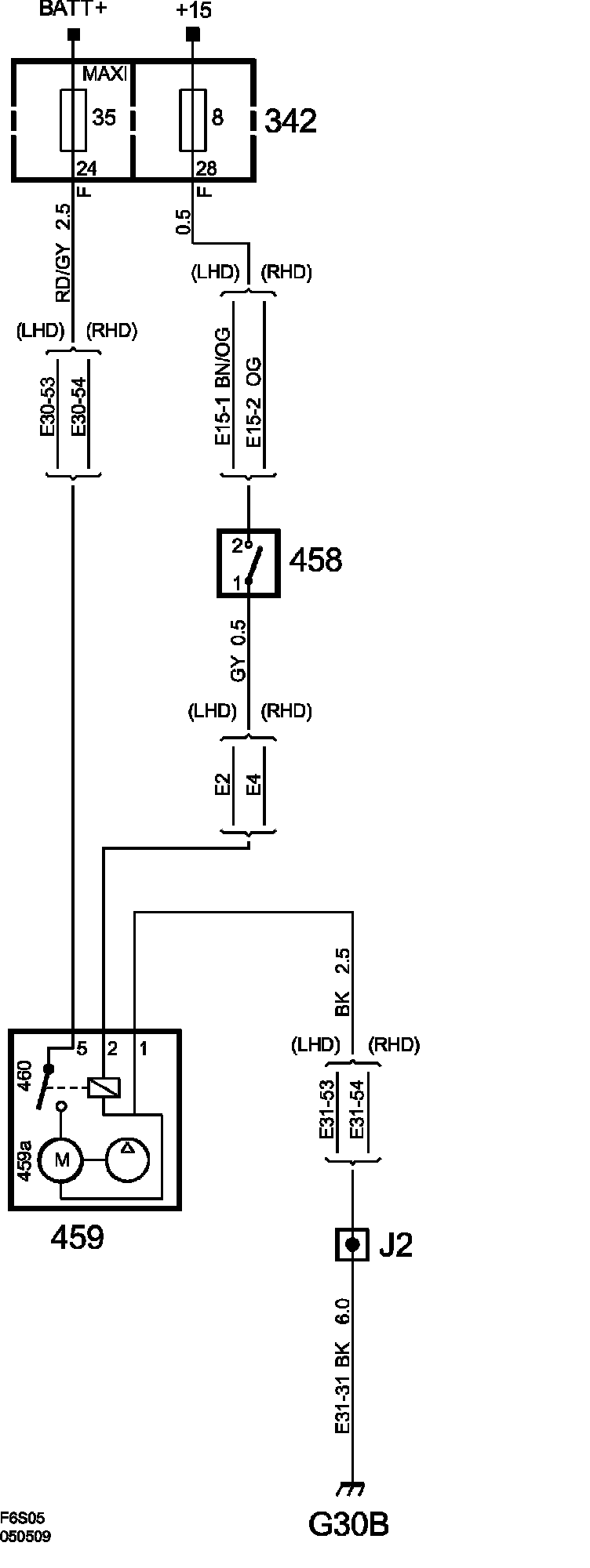

Fault diagnosis only covers the vacuum pump with corresponding leads and components.
Fault Diagnosis Procedure (MES)
