Position Sensor, Sixth Bow Locked, RH (578RH)

Position Sensor, Sixth Bow Locked, RH (578RH)

Location

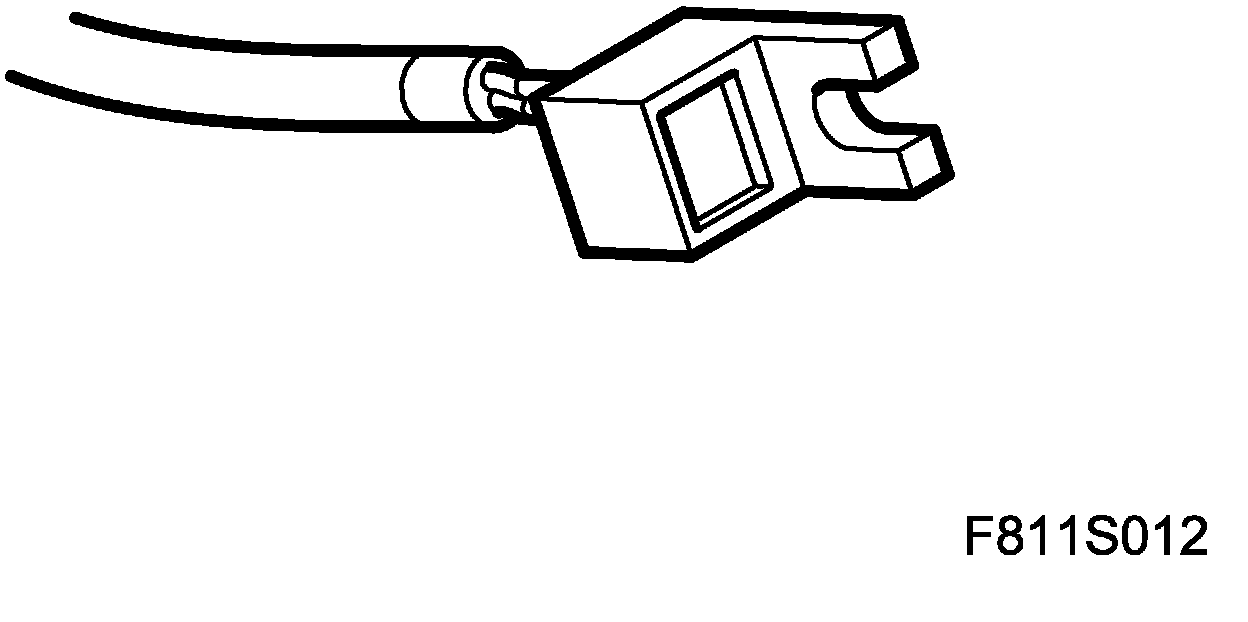

Position sensor, sixth bow locked, RH (578RH)







Main task
The sensor informs the STC control module if the sixth bow is locked on the RH side.

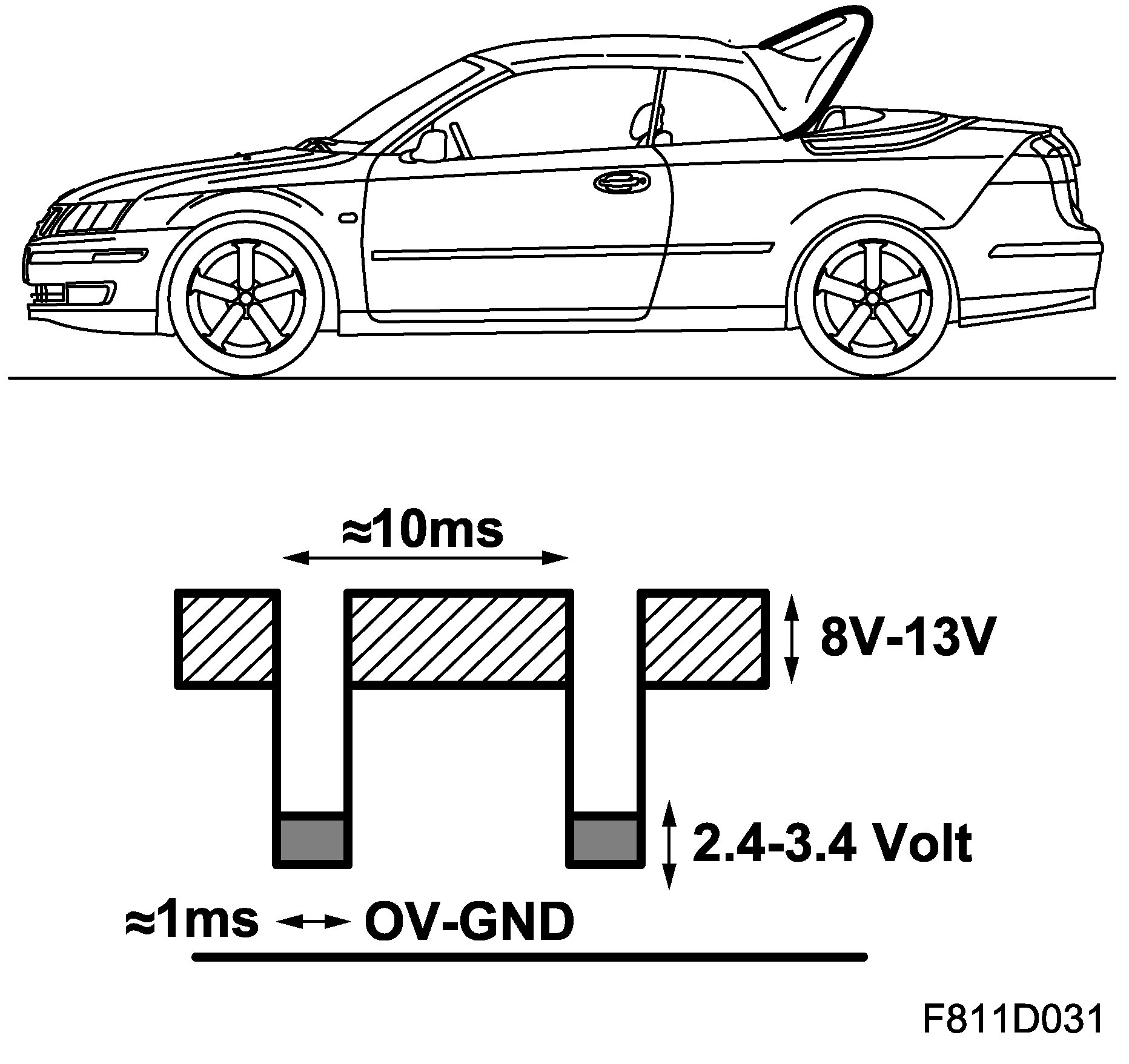

Unlocked

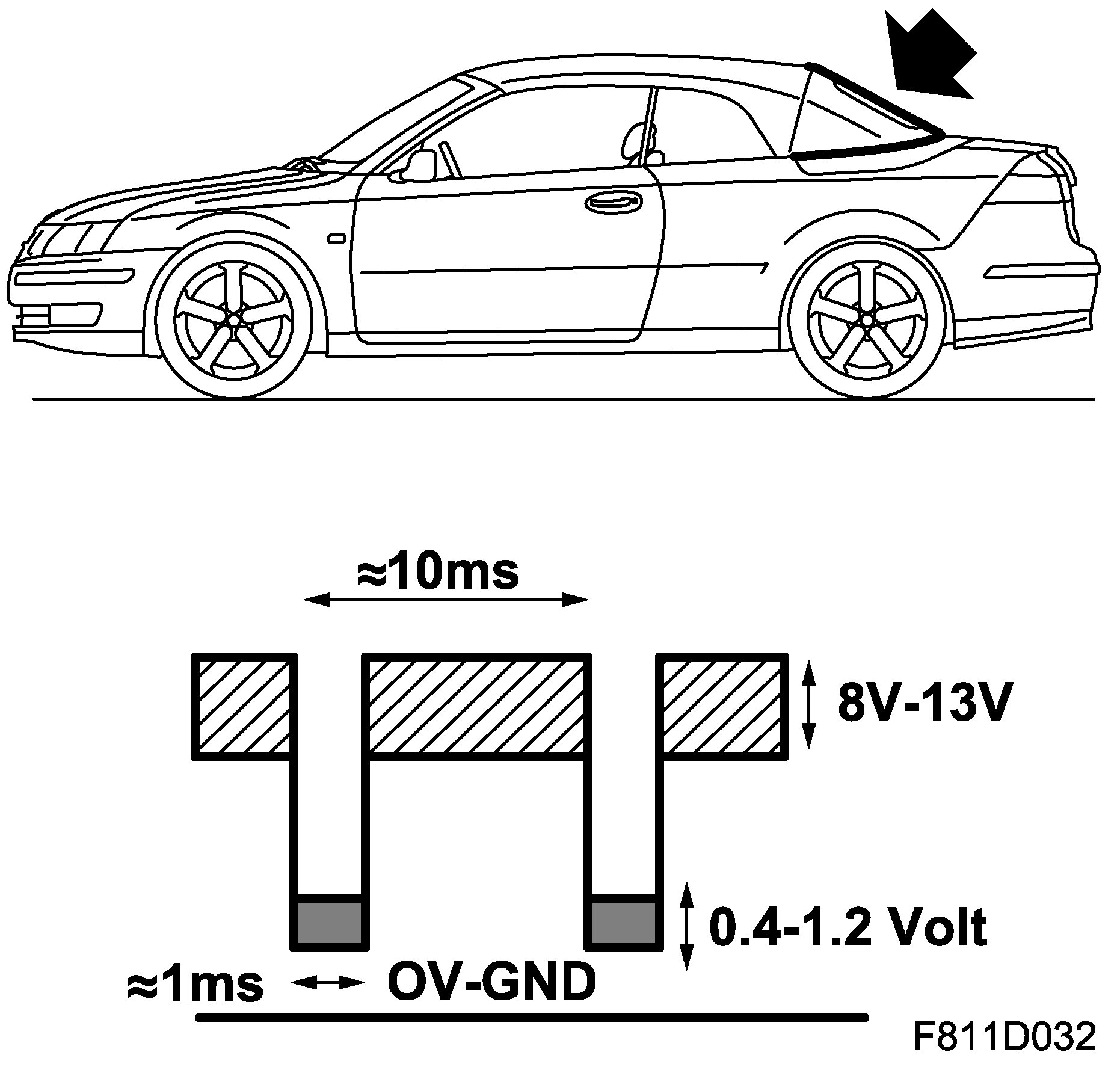

Locked







Type
Hall sensor with inbuilt magnet.

Technical data

Connection

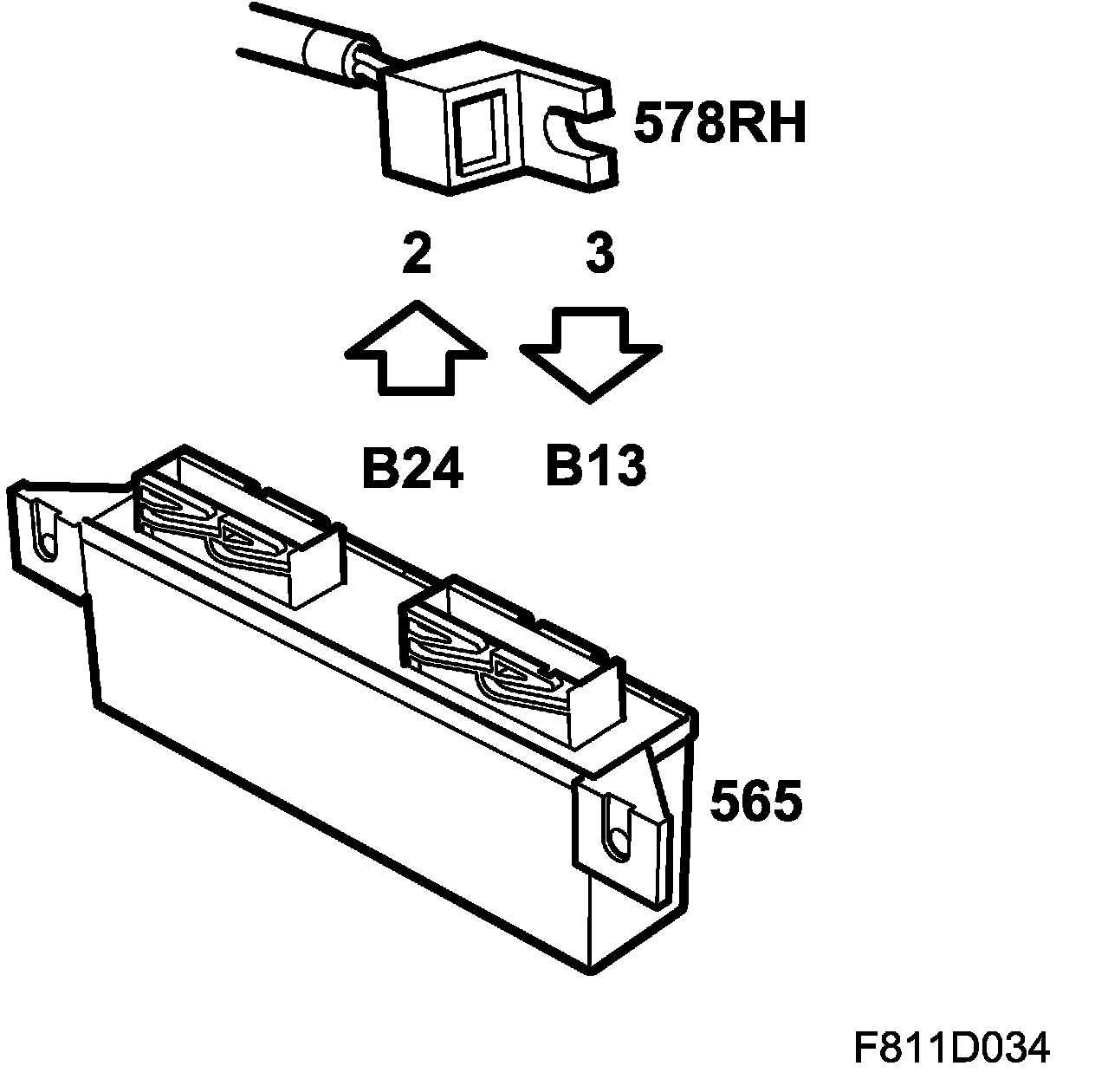

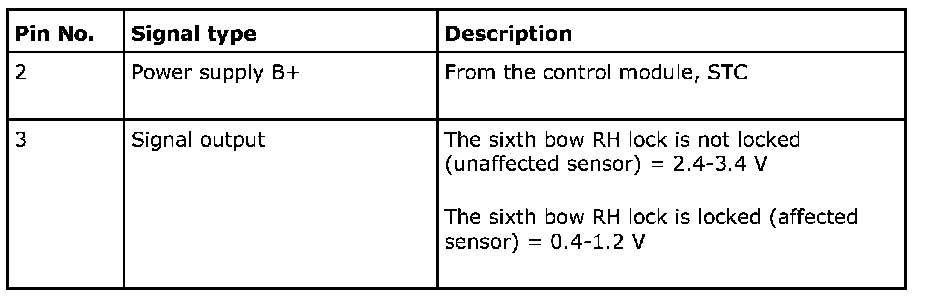

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.

The sensor is affected by a metal tongue on the sixth bow mechanism. The sensor is affected when the sixth bow is locked on the RH side.

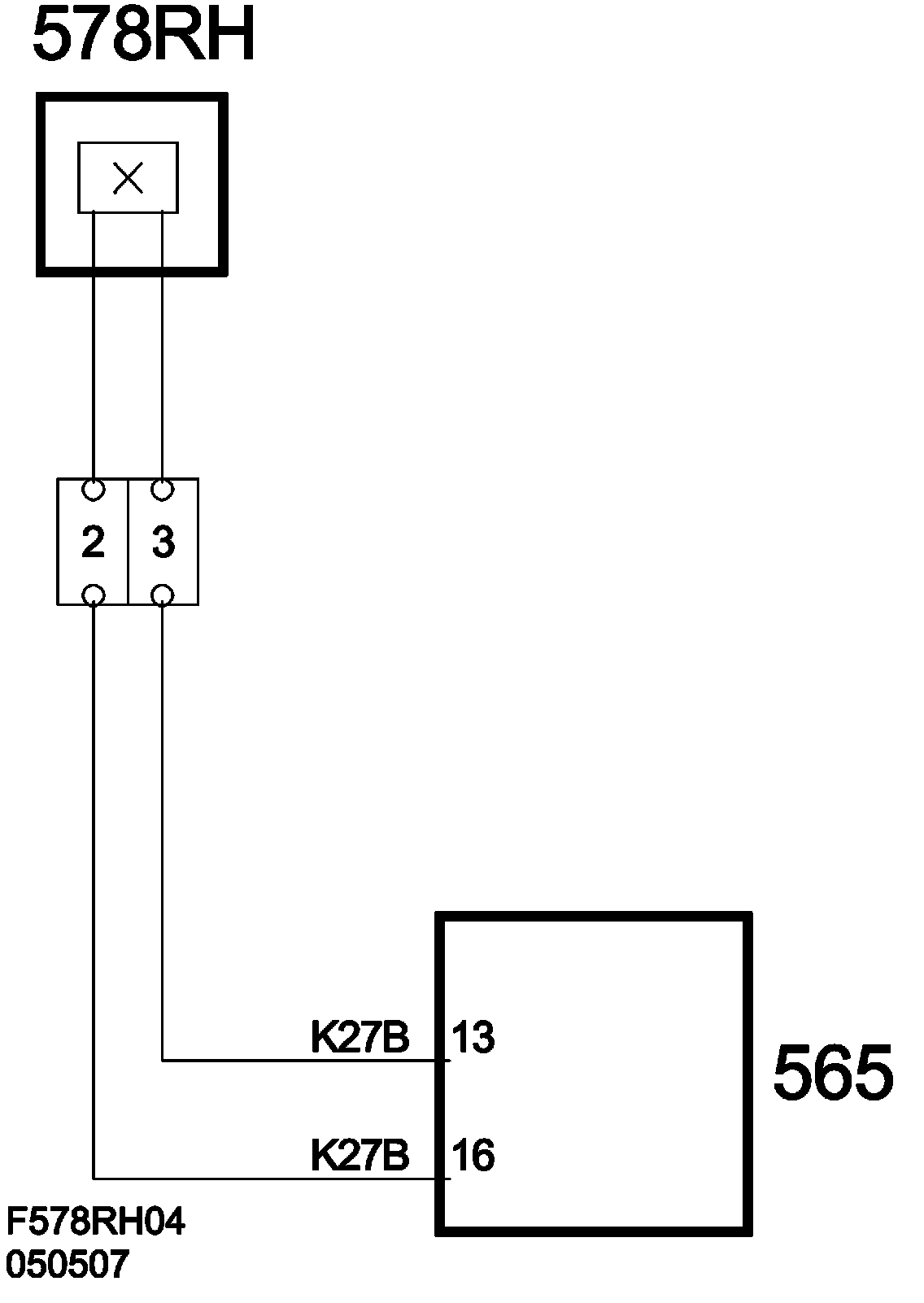

Diagram
