Electrically Operated Sunroof With Pinch Protection
Electrically Operated Sunroof With Pinch Protection

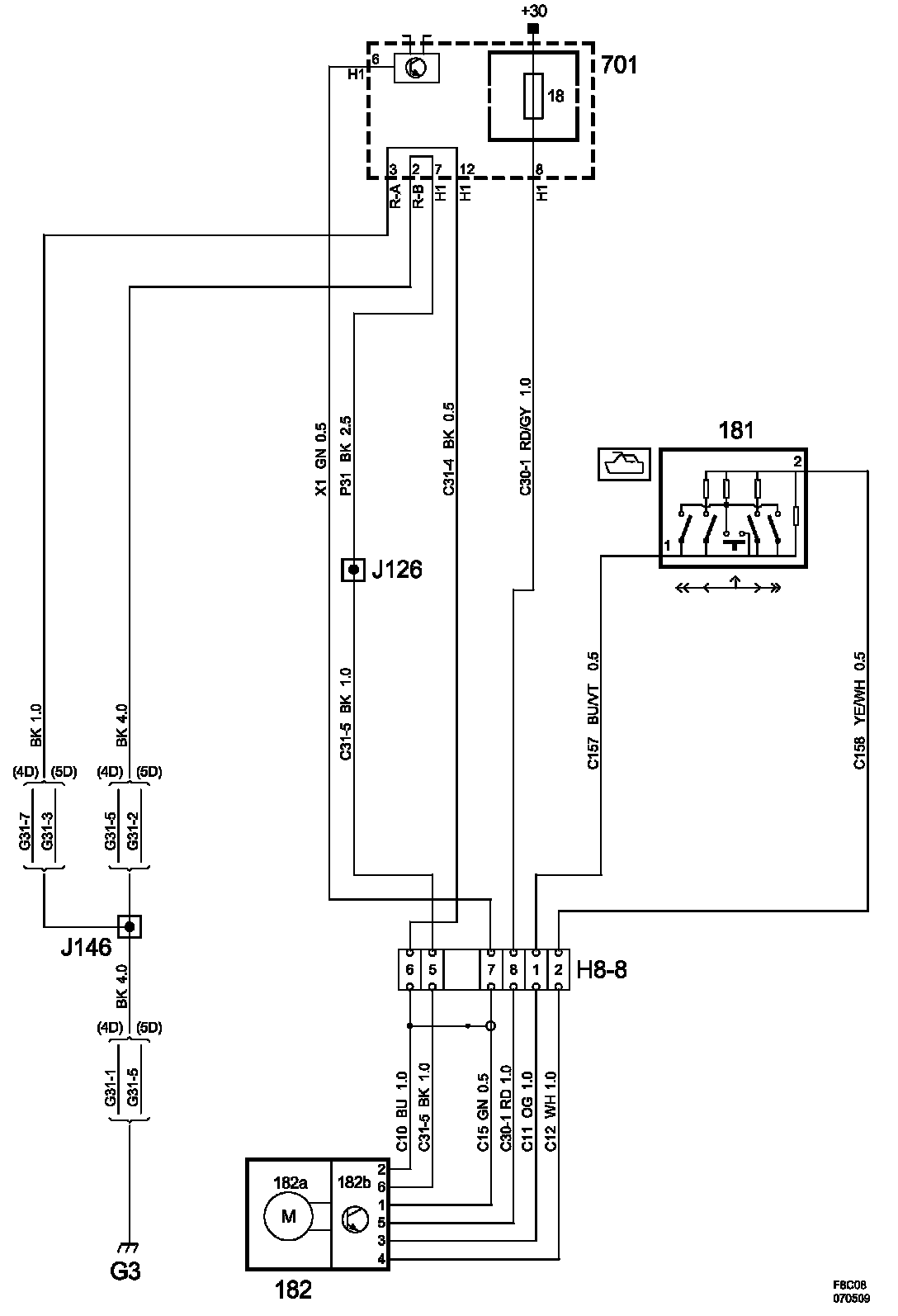

Electrically Operated Sunroof With Pinch Protection:

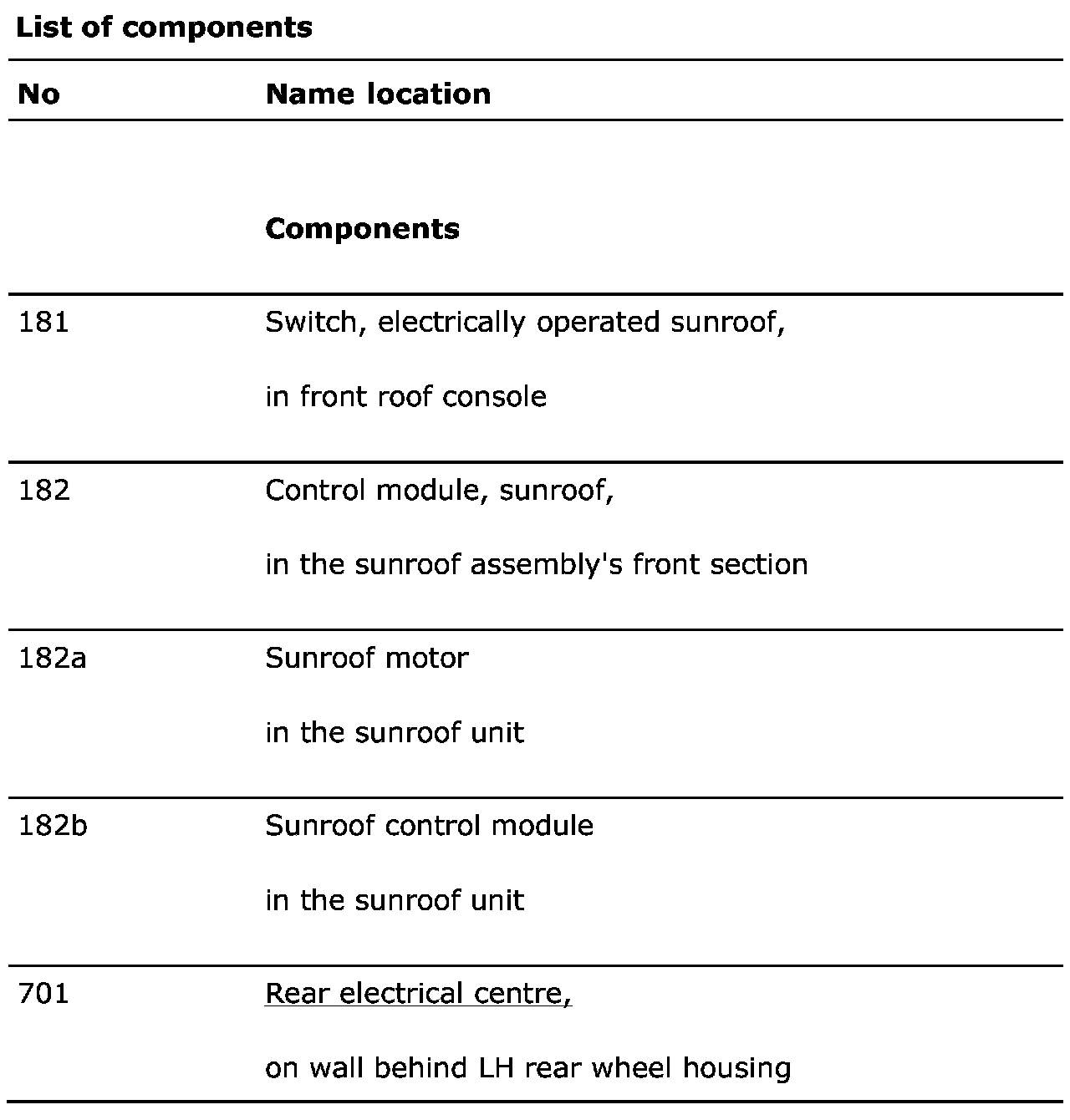

List Of Components (Part 1):

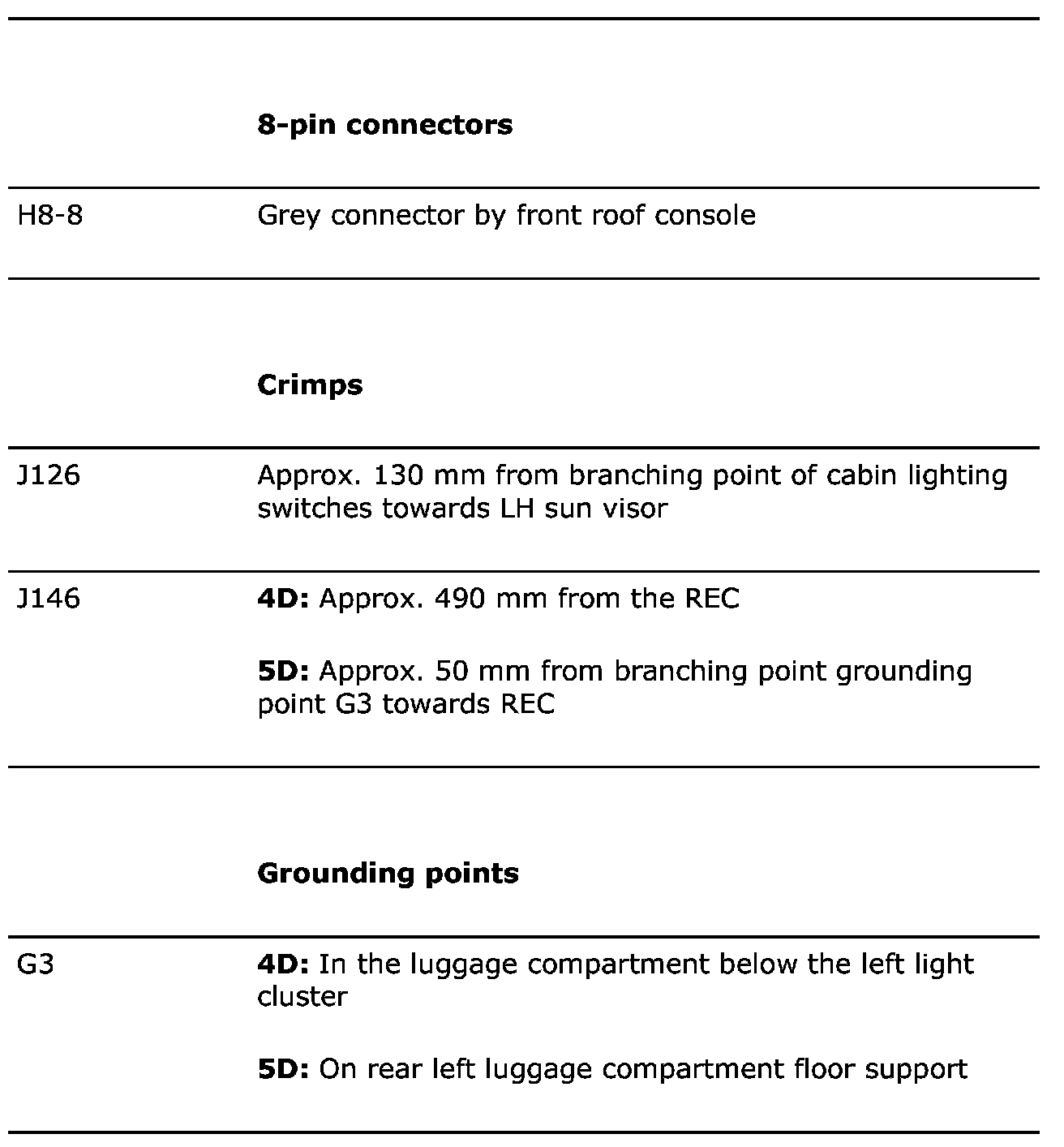

List Of Components (Part 2):
