Chassis Reinforcement, Front Subframe, CV, Petrol

Chassis reinforcement, front subframe, CV, petrol

To remove
1. Raise the car.

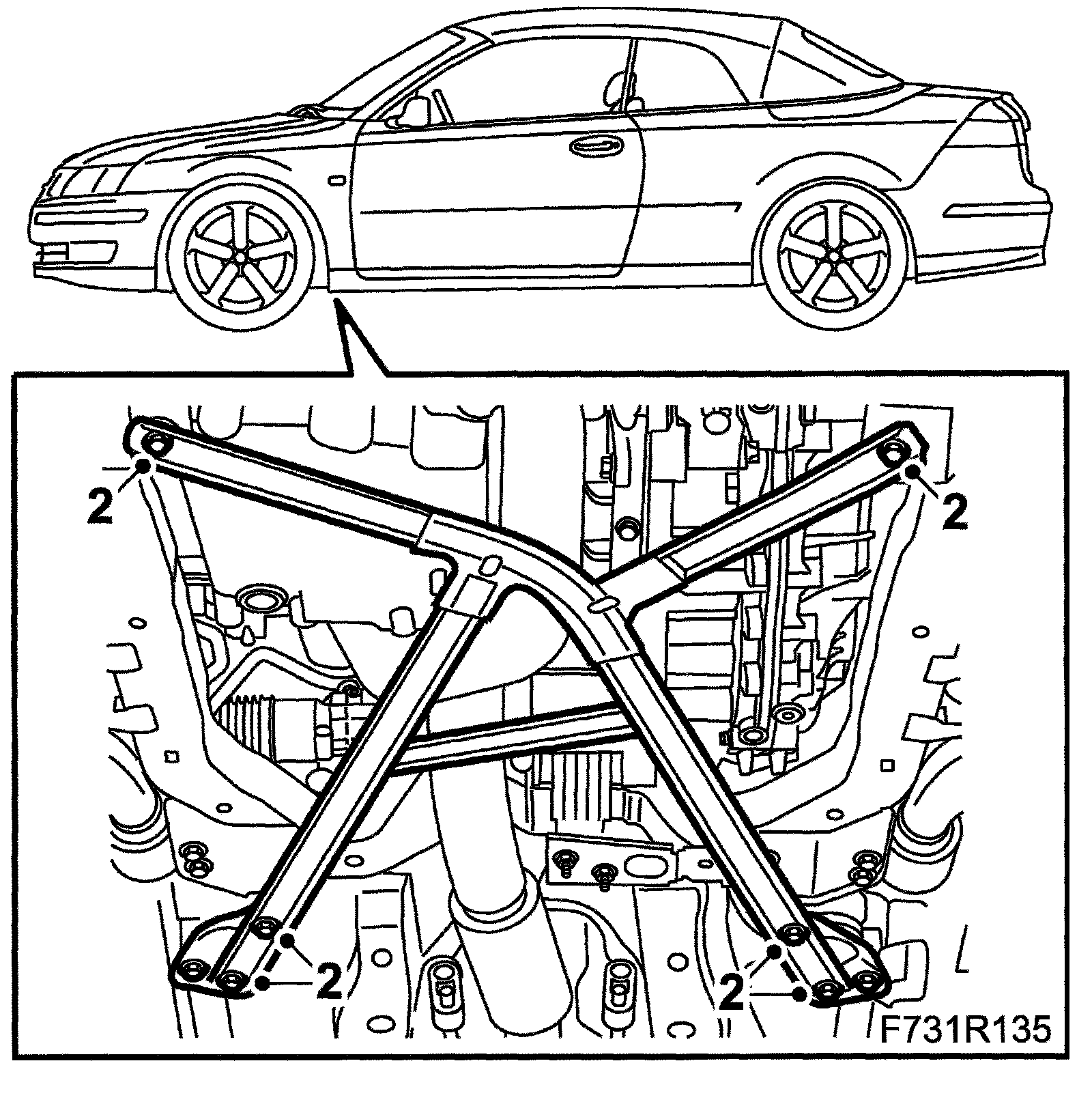

2. Remove the bolts holding the front chassis reinforcement and remove the reinforcement.

Important: The front bolts (of the rear mounting) are shorter than the others.





To fit

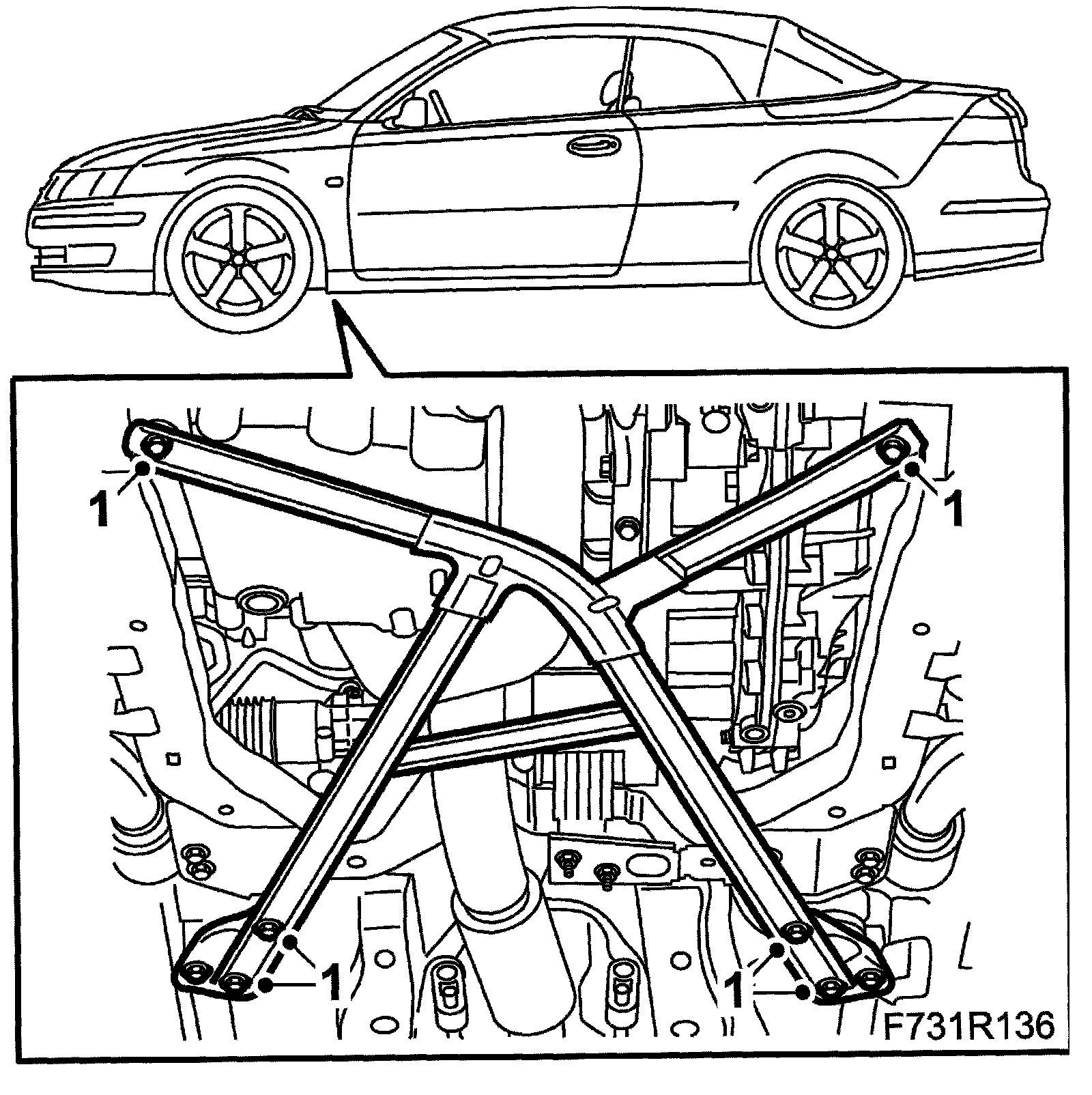

1. Position the chassis reinforcement and fit the bolts.

Important: The front bolts (of the rear mounting) are shorter than the others.

Tightening torque 50 Nm (37 ft. lbs.)





2. Lower the car to the floor.
