Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Handle >> Diagrams >> 5D

5D

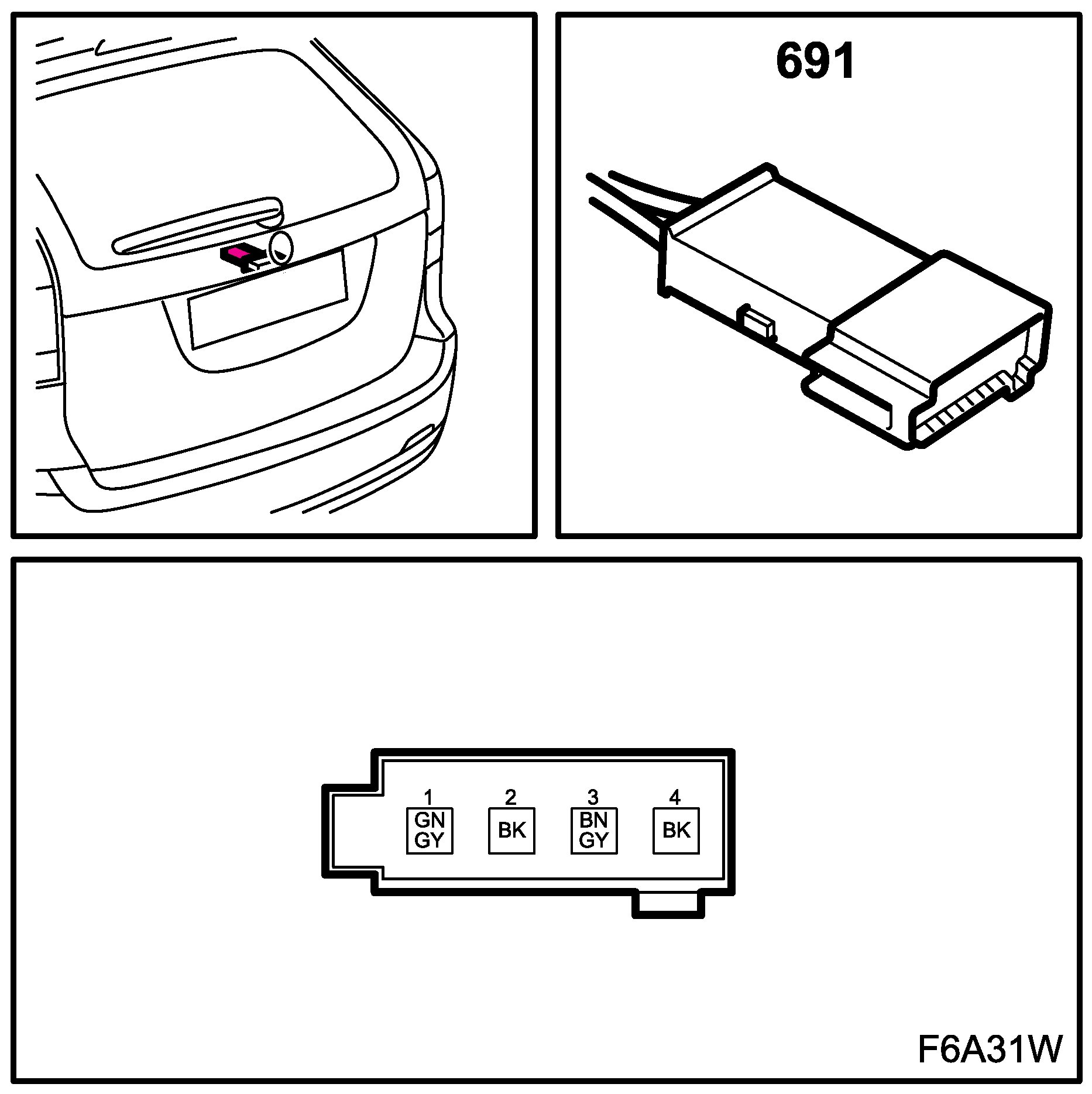

Bootlid Handle Module (691)

Location: on the bootlid

5D

Bootlid Handle Module (691):
