Remote Control: Service and Repair

Steering Wheel Controls

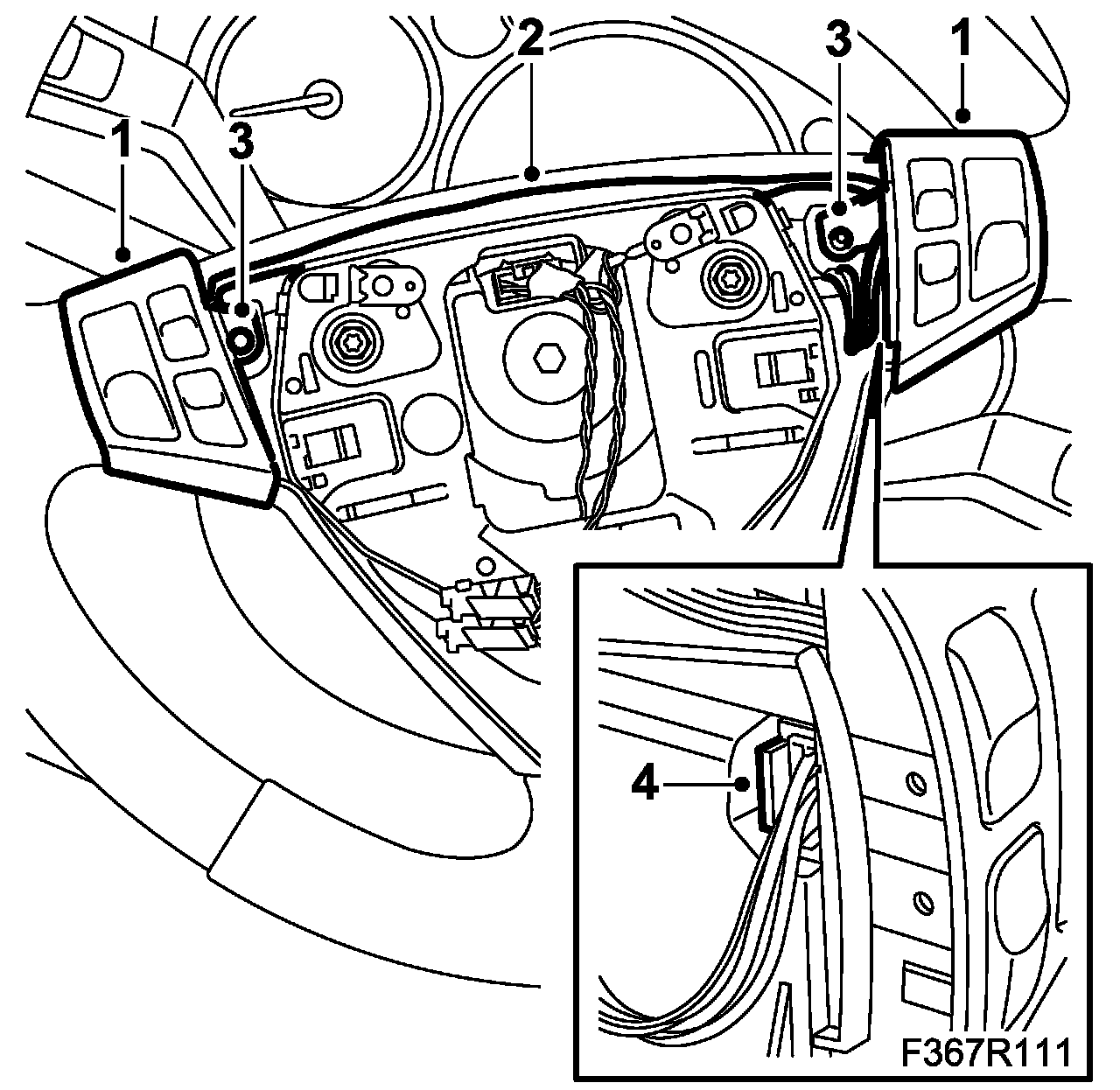

To remove
1. Remove the driver airbag.
2. Remove the steering wheel control connectors.





3. Undo the screws. Remove the controls using 82 93 474 Removal tool.
4. Remove the cable from the cable bracket.

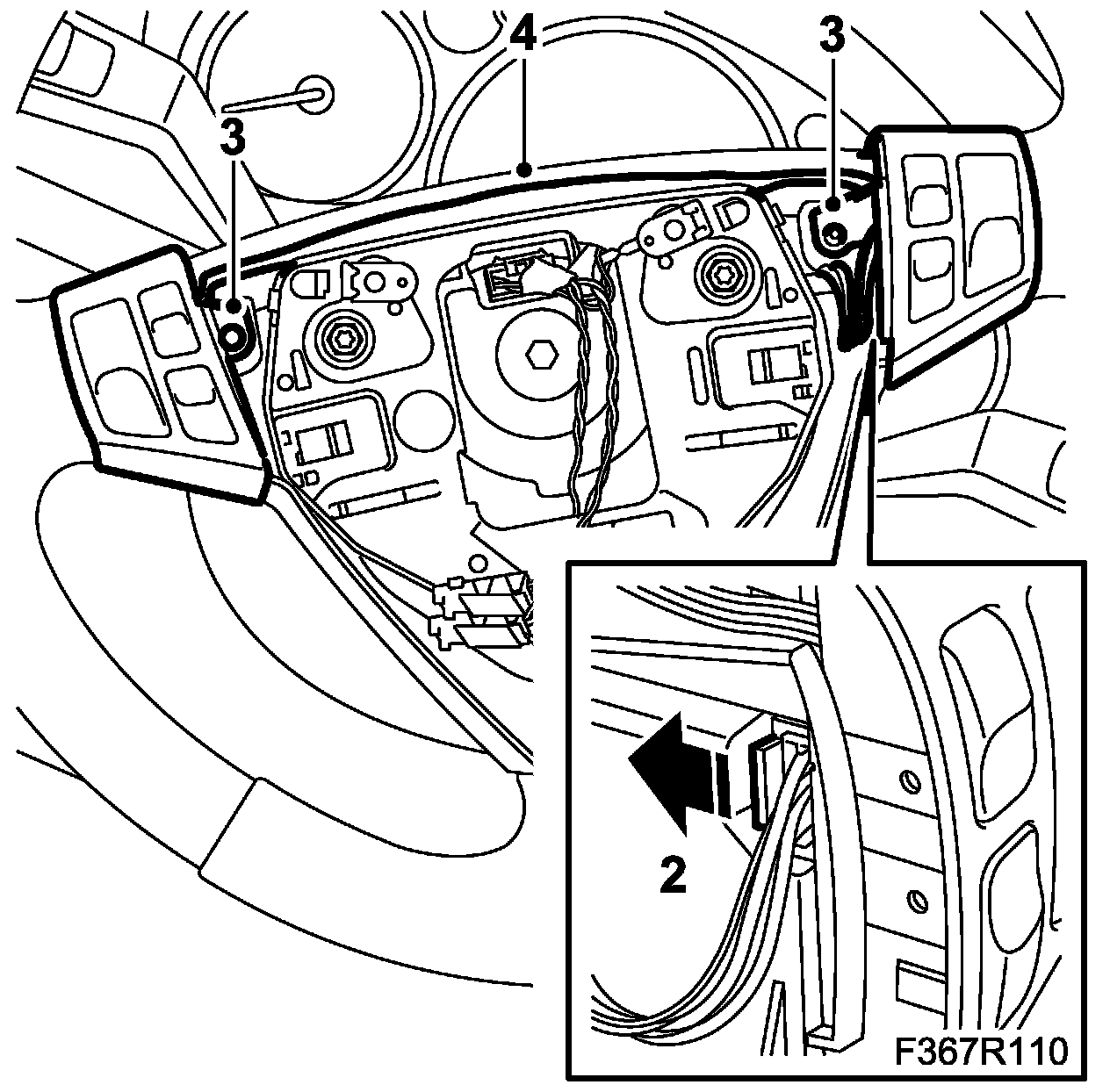

To fit
1. Fit the steering wheel controls.





2. Fit the cable to the cable bracket.
3. Fit the screws securing the steering wheel controls.
4. Plug in the connector.
5. Fit the driver airbag.
