4D

Radio Receiver, TMC, 4D

To remove
1. Carry out procedures when replacing electronic components.
2. Remove luggage compartment trim, side trim, 4D.
3. Remove the radio receiver:

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.

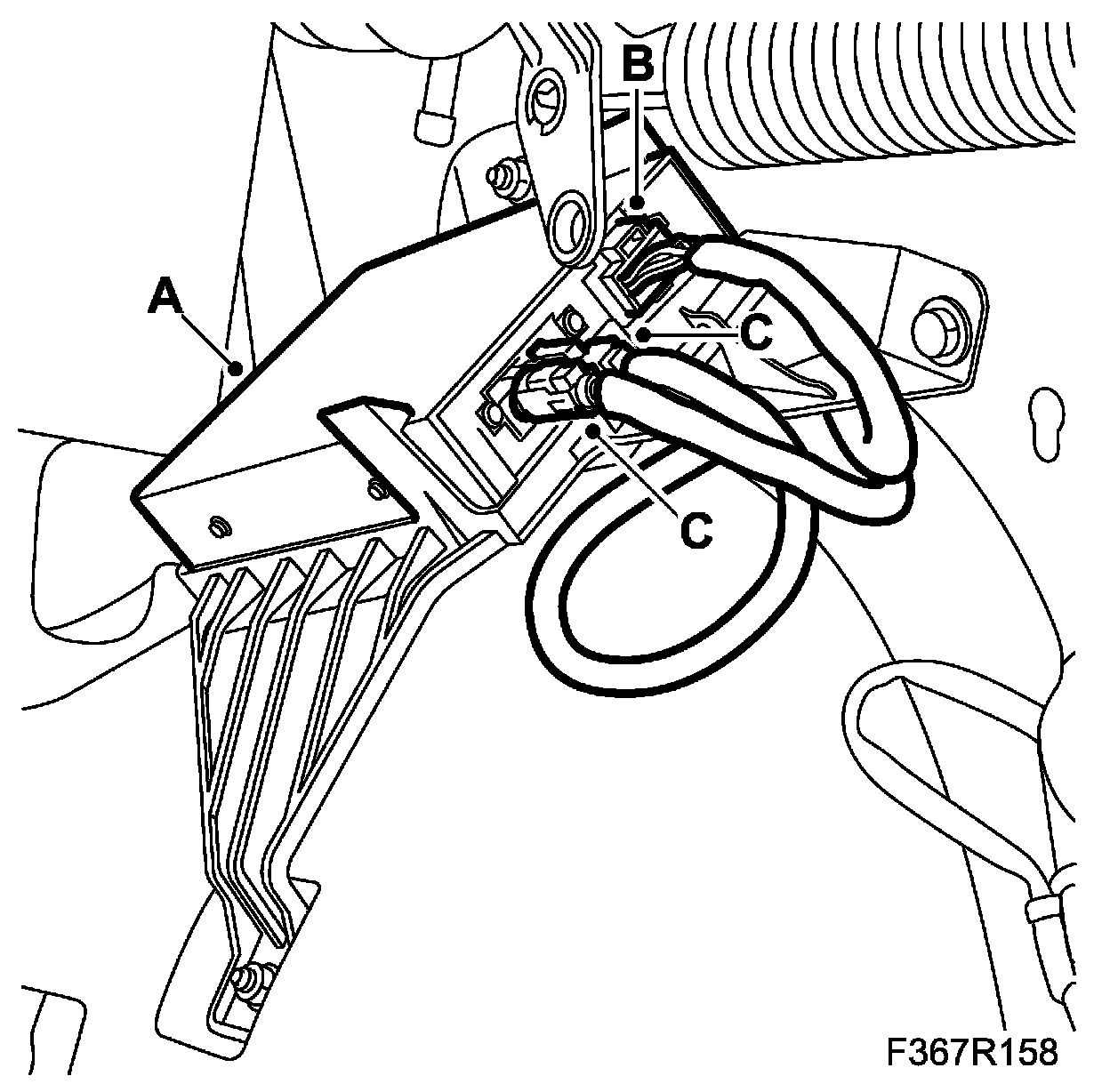

^ Unplug the connectors (B, C) for the radio receiver (A).
^ Remove the radio receiver.

To fit
1. Fit the radio receiver:





IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

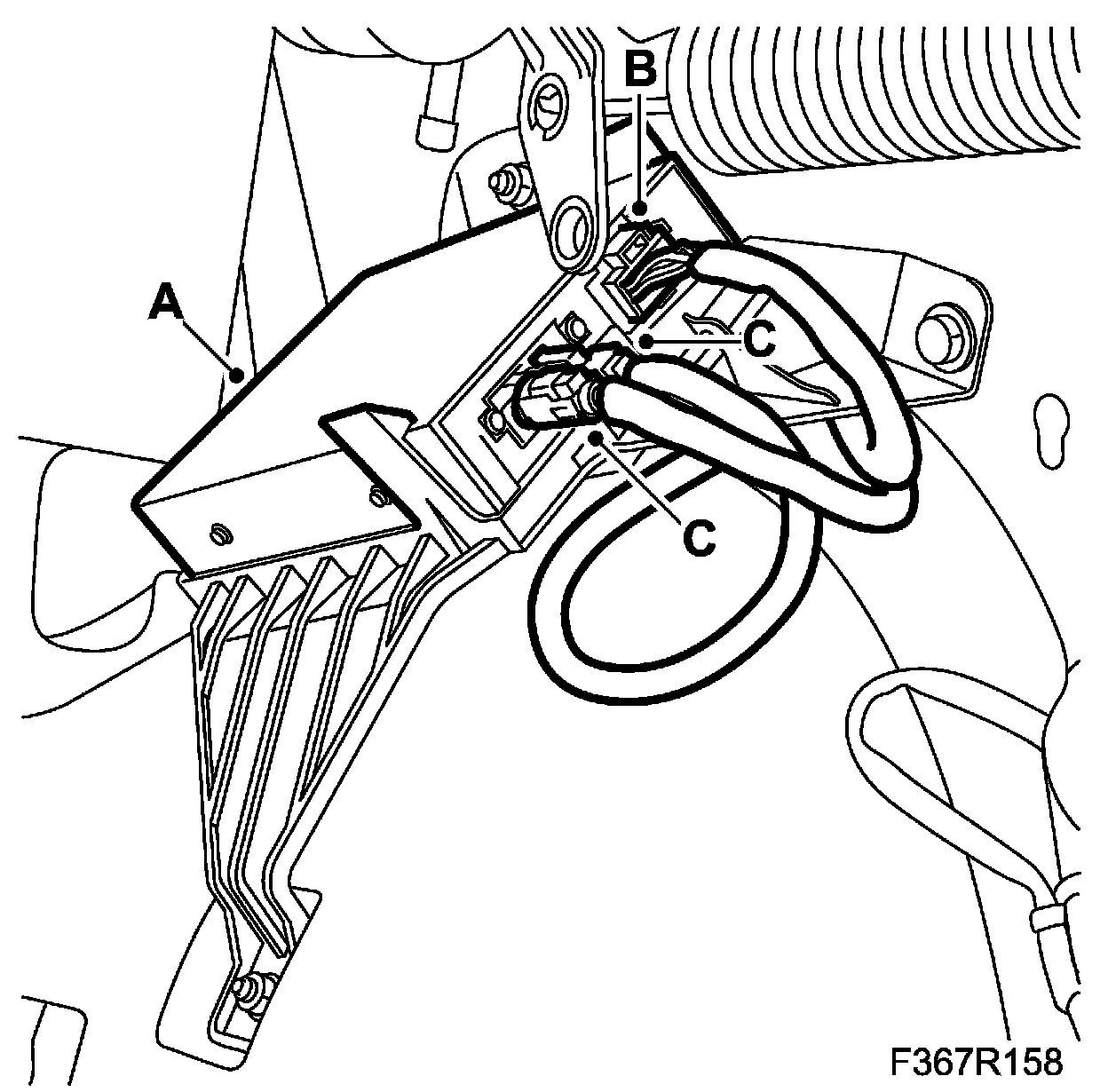

^ Fit the radio receiver (A).
^ Plug in the connectors (B, C) for the radio receiver.

2. Fit luggage compartment trim, side trim, 4D.
