Radio Receiver, Satellite Radio, CV

To remove
1. Carry out procedures before removing a control module.
2. Remove right-hand rear side trim.

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.

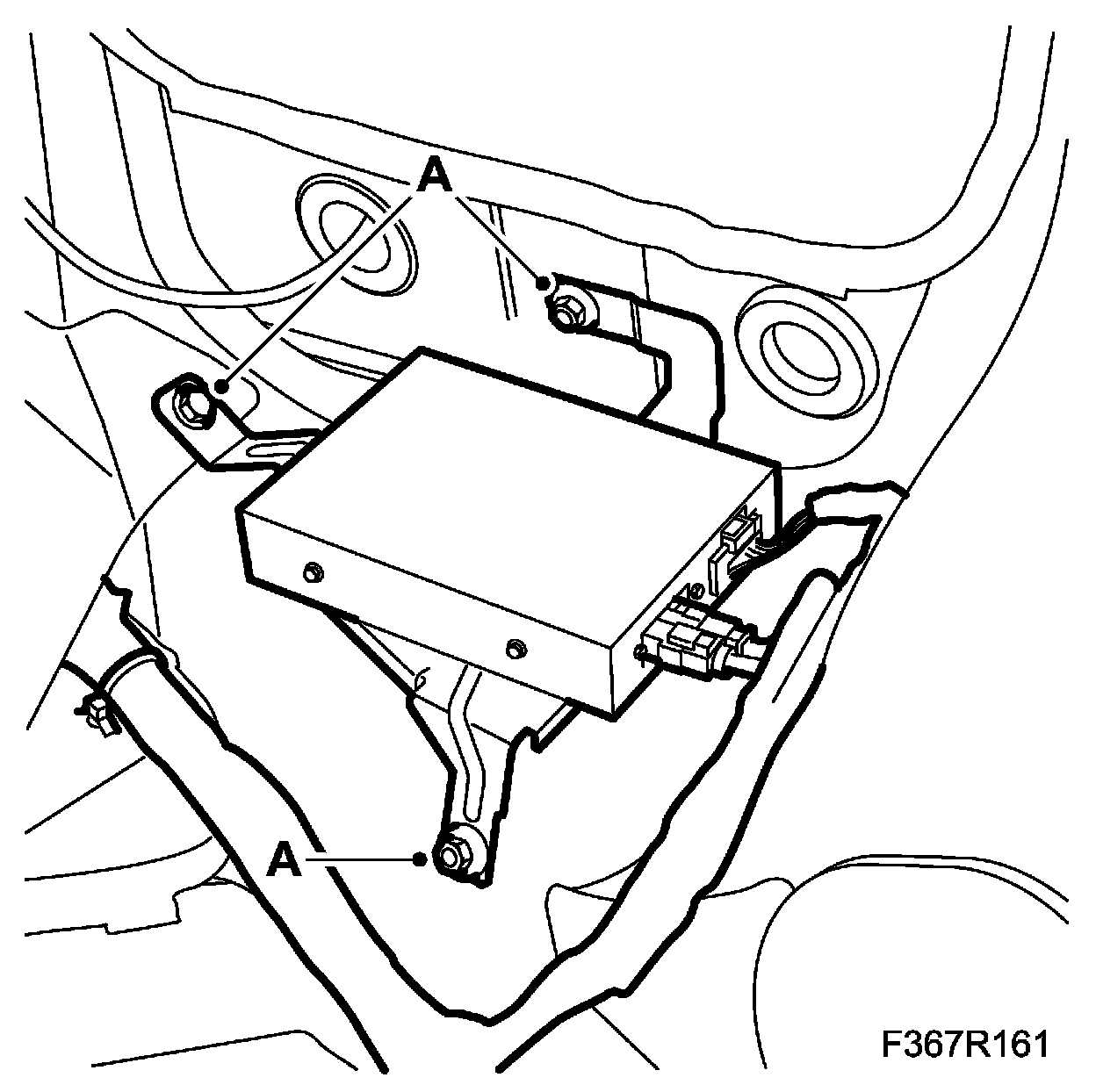

3. Remove the console (A) for the satellite radio receiver.

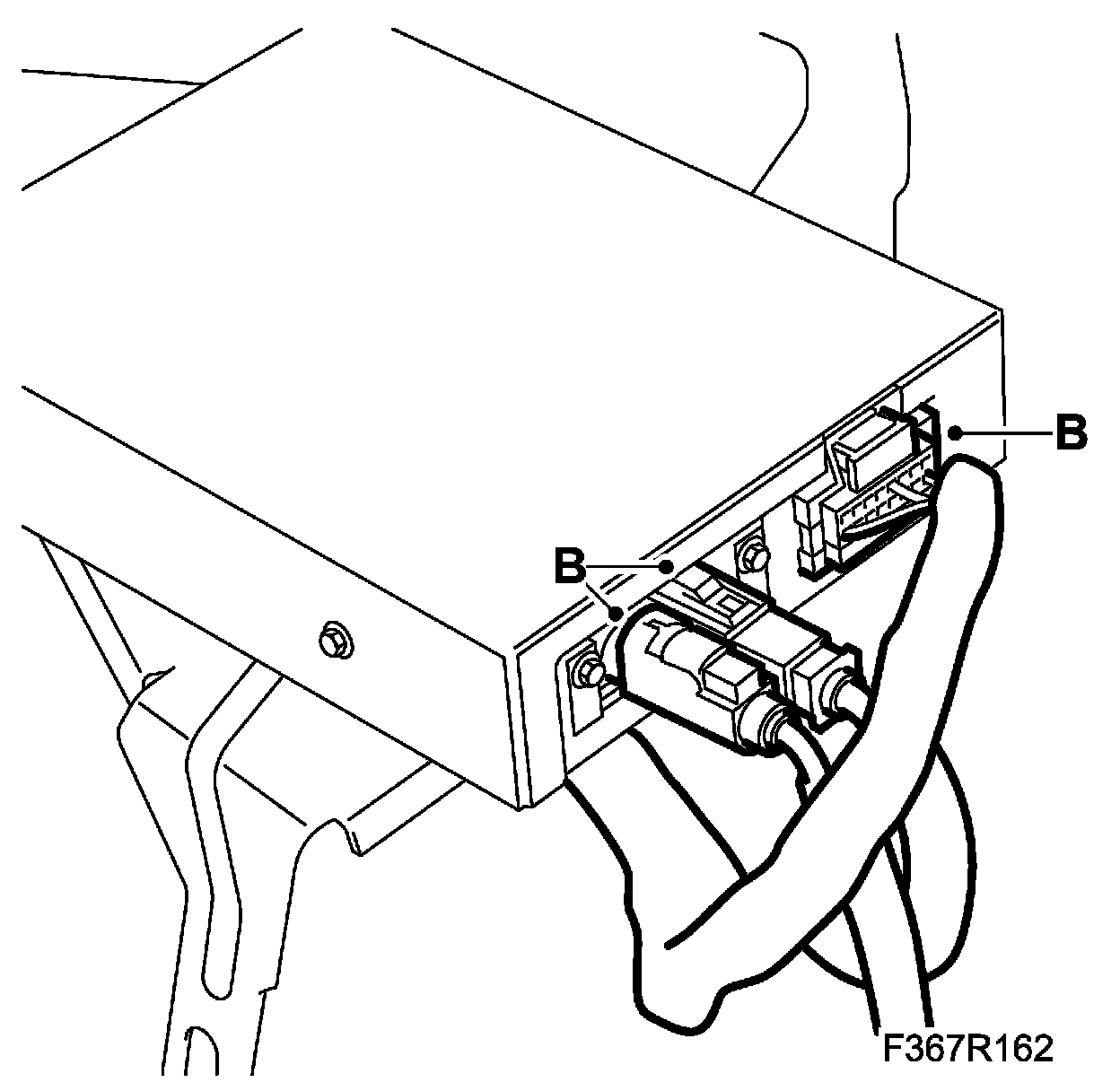

4. Unplug the connectors (B) for the satellite radio receiver.





To fit

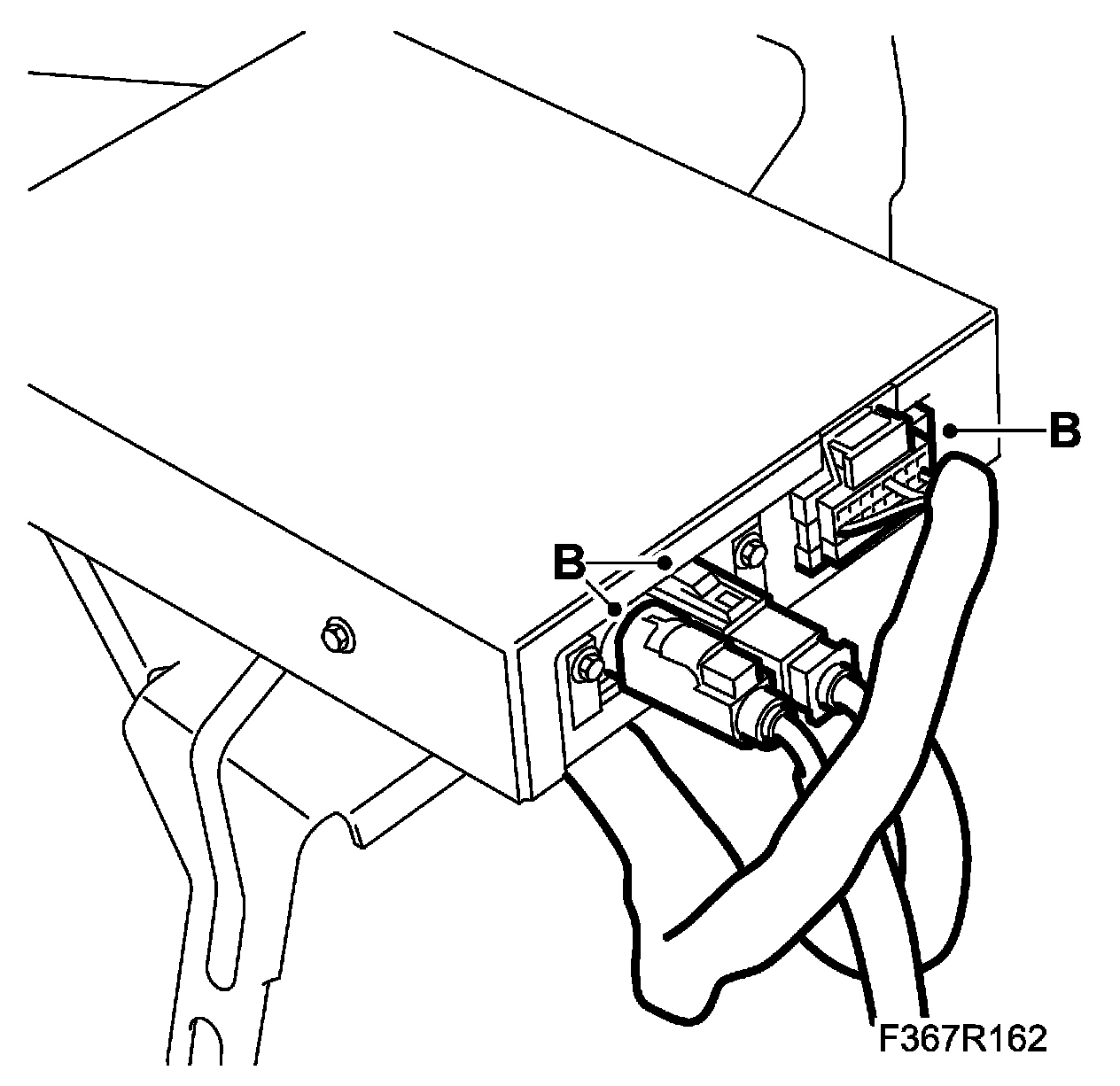

1. Plug in the connectors (B) for the satellite radio receiver.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

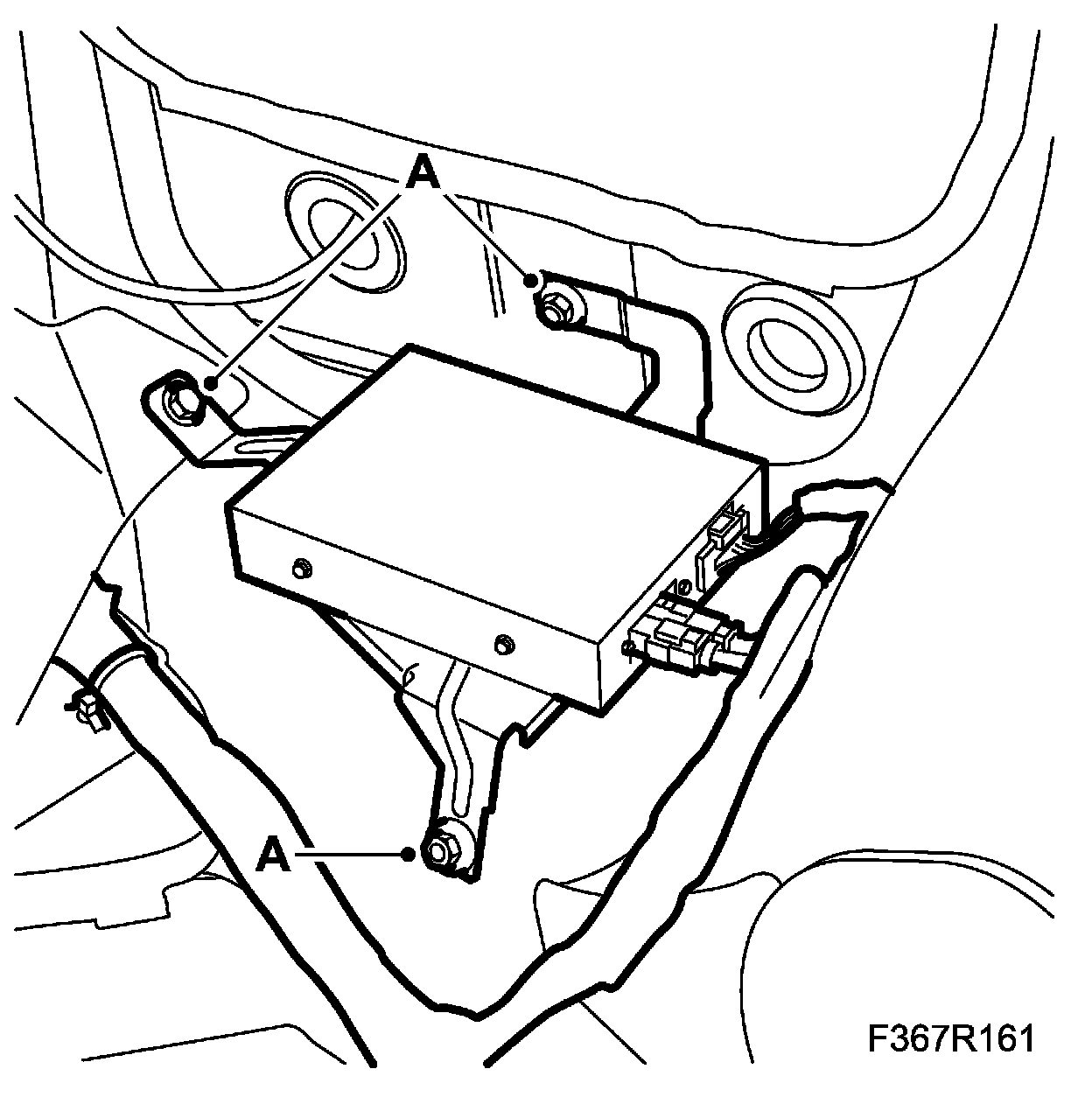

2. Fit the console (A) for the satellite radio receiver.





3. Fit right-hand rear side trim.
4. Carry out Procedure after control module replacement.
5. Carry out satellite radio receiver, activation.
