Front Speaker Amplifier (354F), Bose (R) Sound System

Front Speaker Amplifier (354F), Bose (R) Sound System

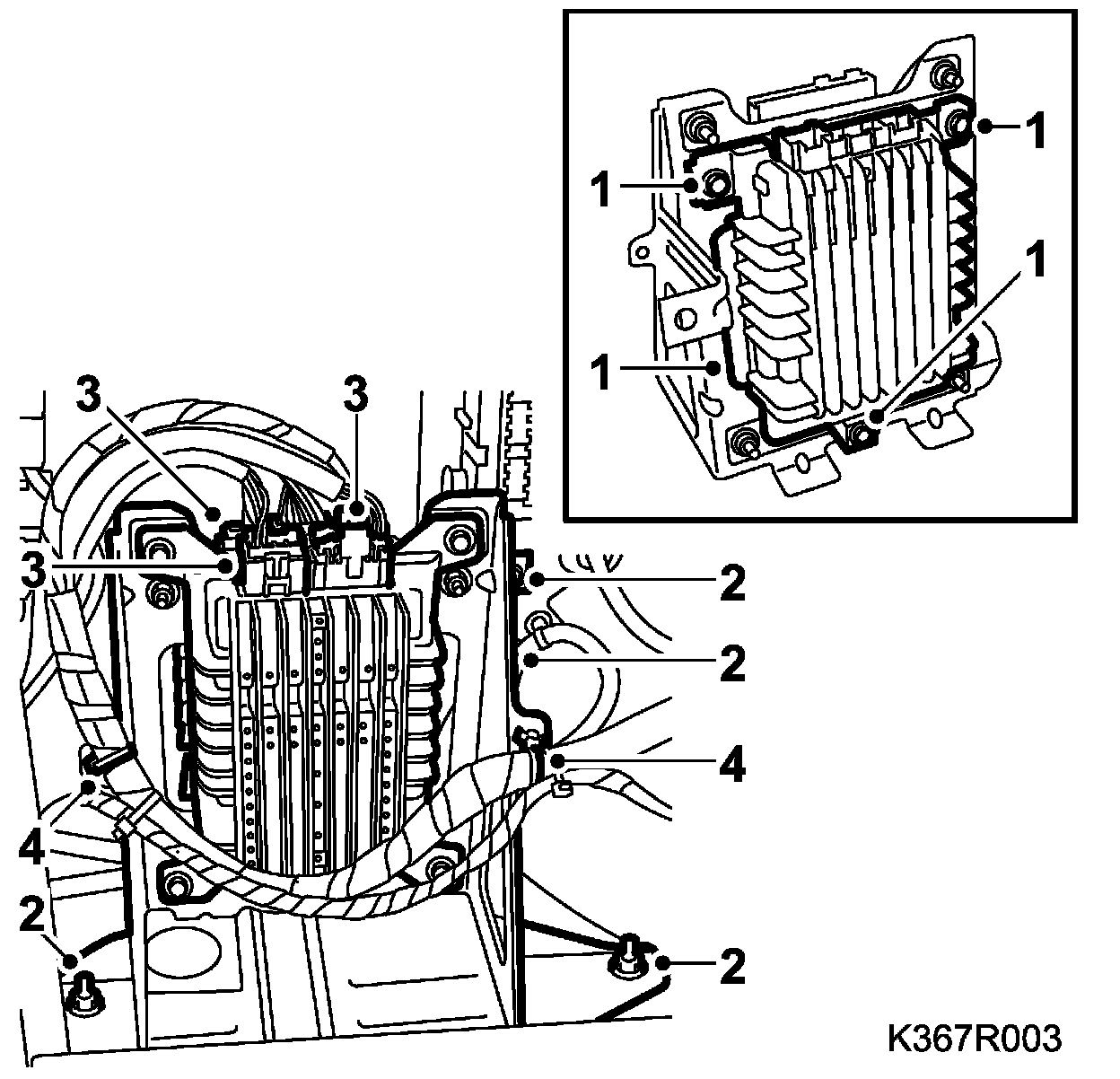

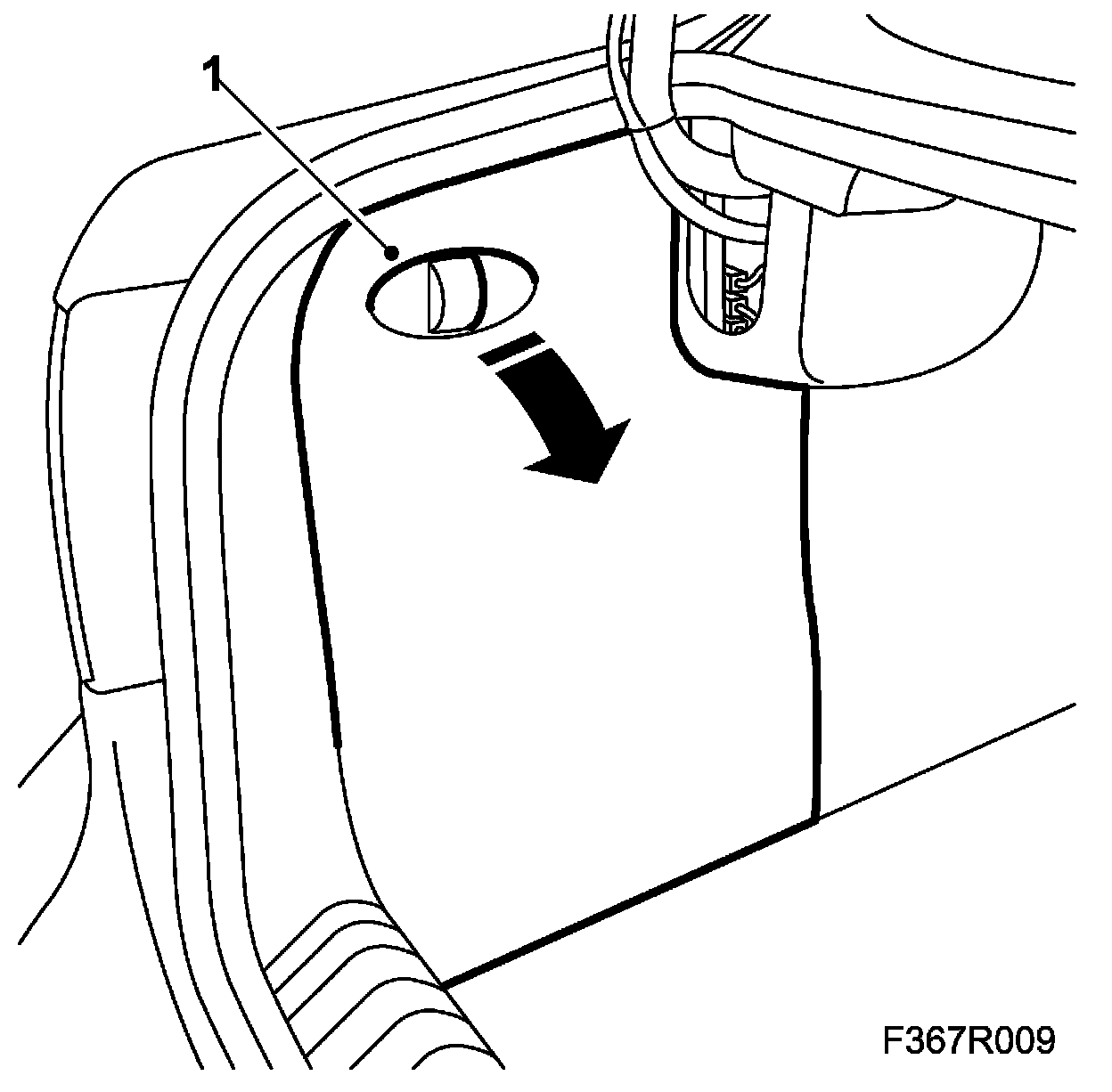

To remove





2. Remove the wiring harness cable tie.





3. Unplug the connectors.

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.

4. Remove the bracket and amplifier.
5. Remove the amplifier from the bracket.

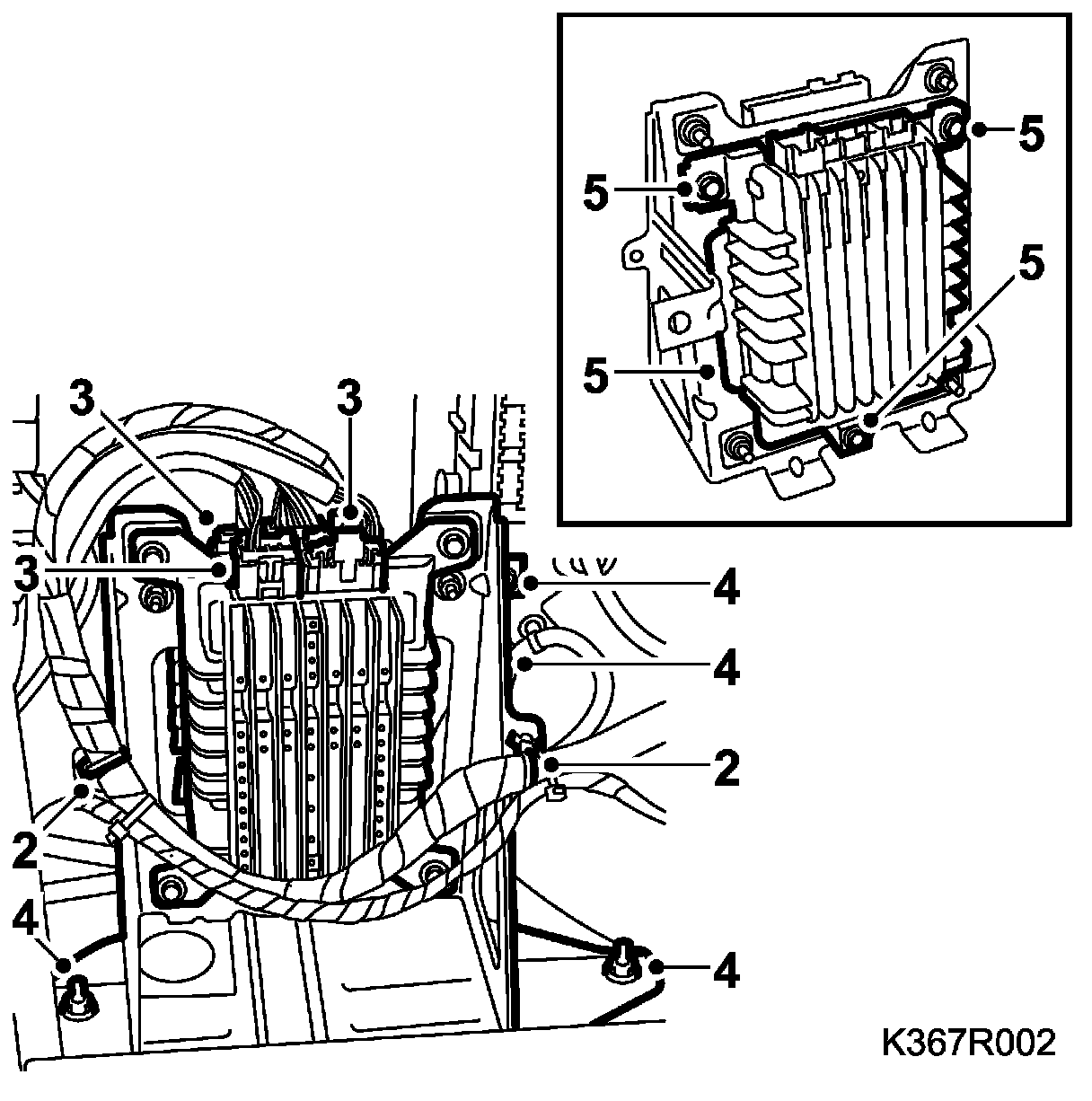

To fit
1. Fit the amplifier to the bracket.





2. Fit the bracket and amplifier.
3. Plug in the connector.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

4. Secure the wiring harness to the bracket using a cable tie.

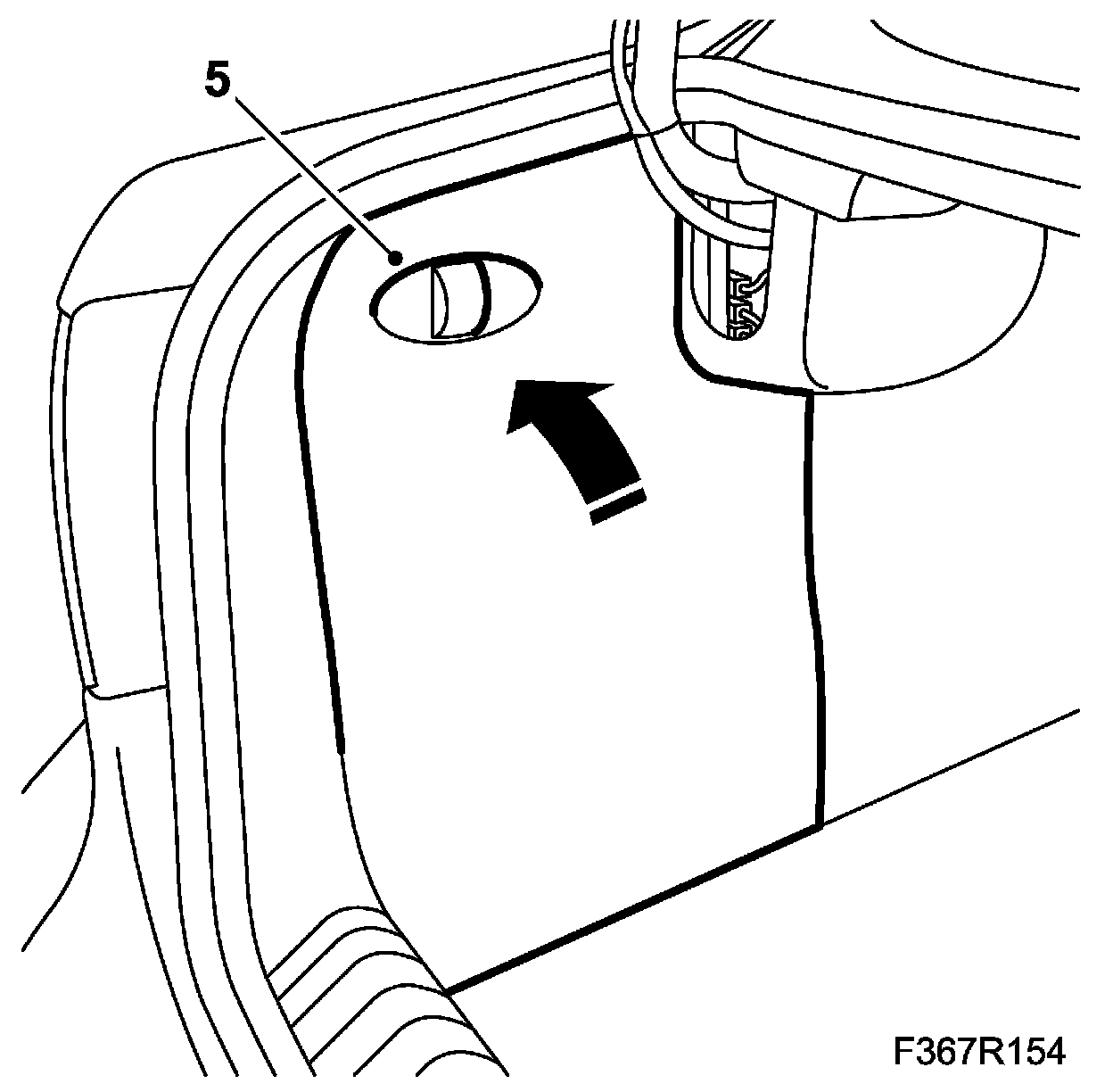

5. Close the side hatch.





6. Check the function.
