Amplifier (354SM), Console, Bose (R) Centerpoint (R) Surround System, 5D

Amplifier (354SM), Console, Bose (R) Centerpoint (R) Surround System, 5D

To remove
1. Remove the amplifier.

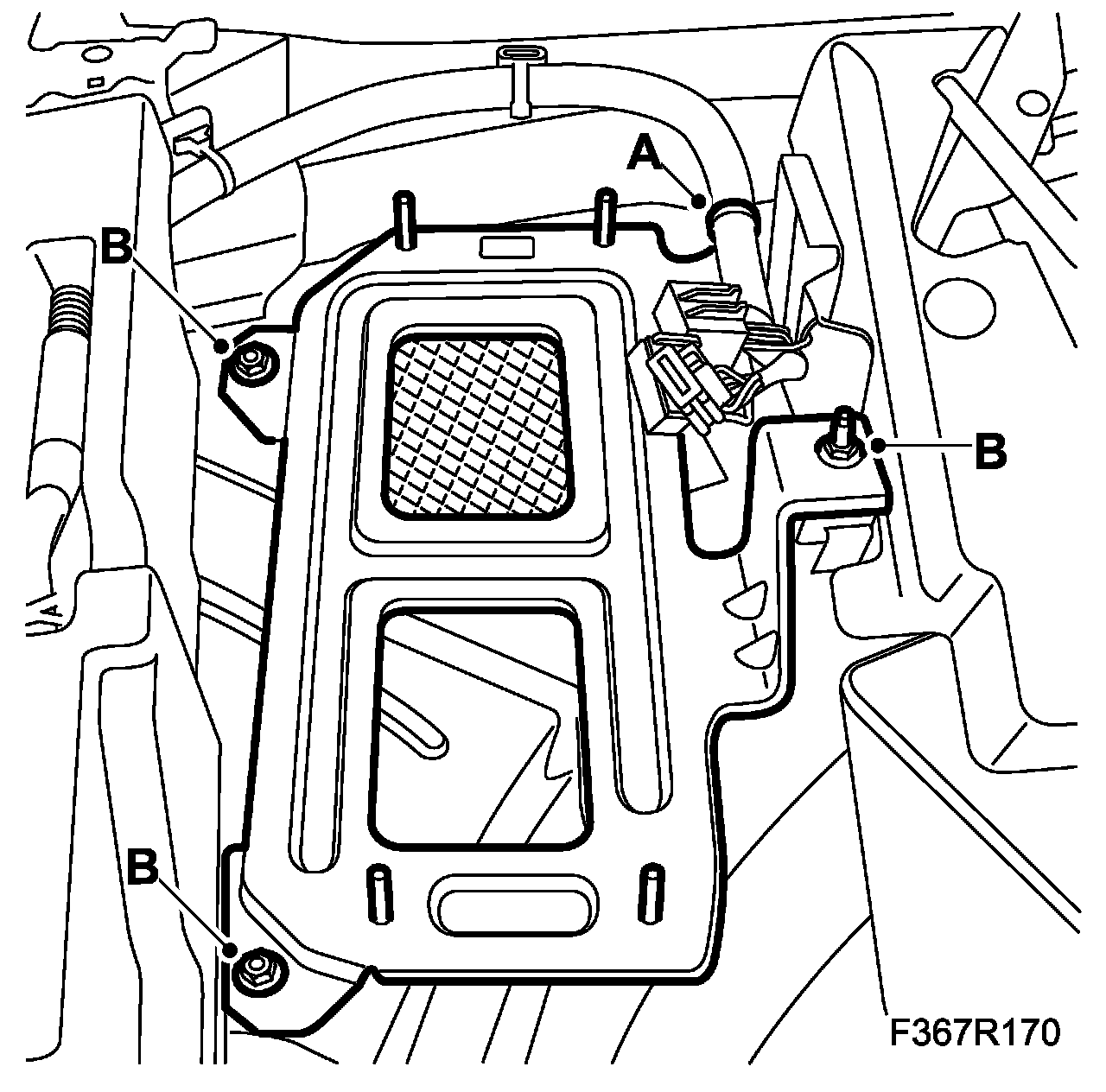

2. Remove the cable tie (A) and the console (B).





To fit

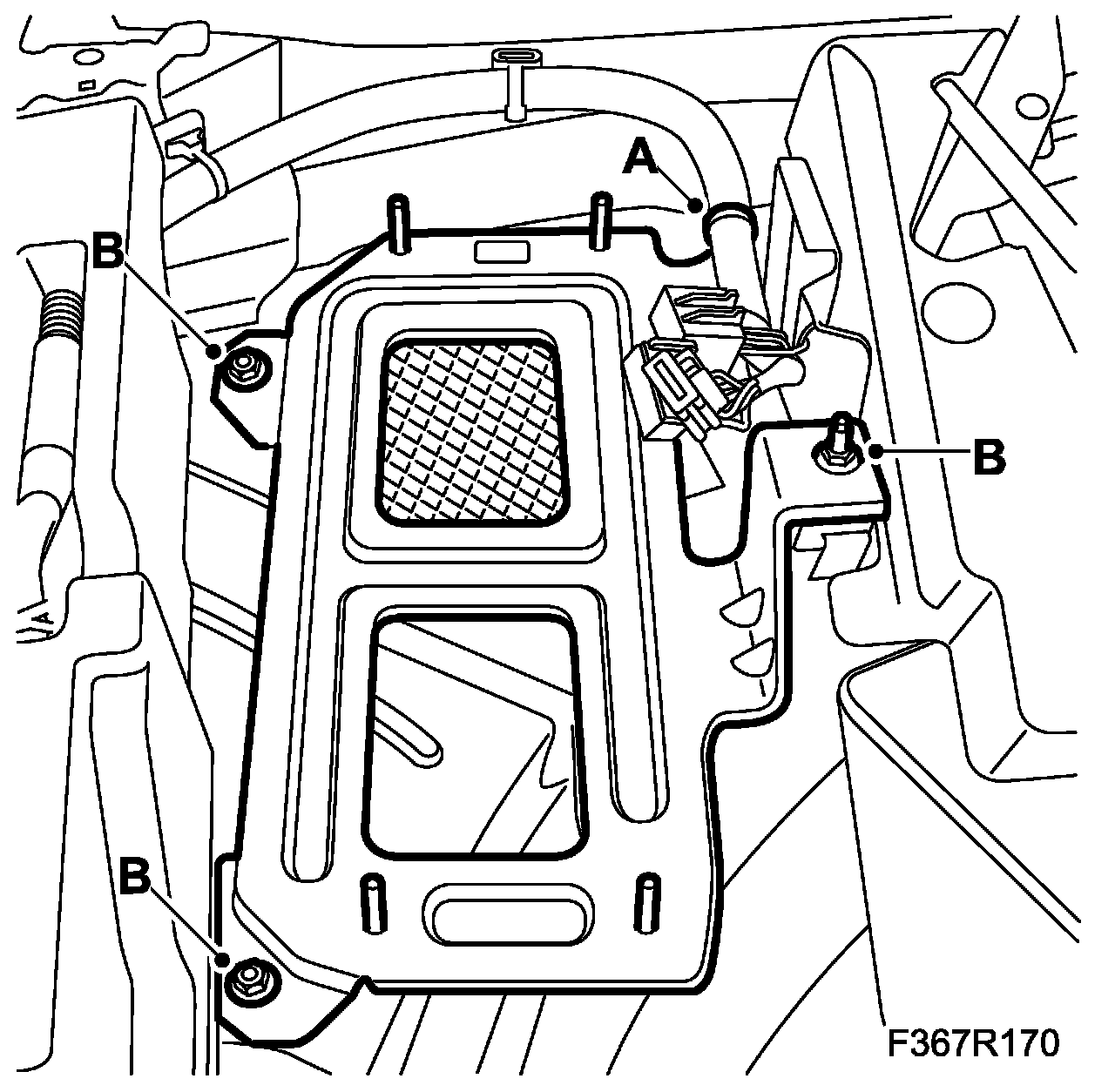

1. Fit the console (B) and the cable tie for the console (A).





2. Fit the amplifier.
