Anti-Theft Alarm Siren (275), 4D, 5D

Anti-theft Alarm Siren (275), 4D, 5D

To remove
1. 4D: Open the right side hatch in the luggage compartment and remove Sound insulation, luggage compartment right.
5D: Remove right Rear side trim, 5D and Sound insulation, luggage compartment right.

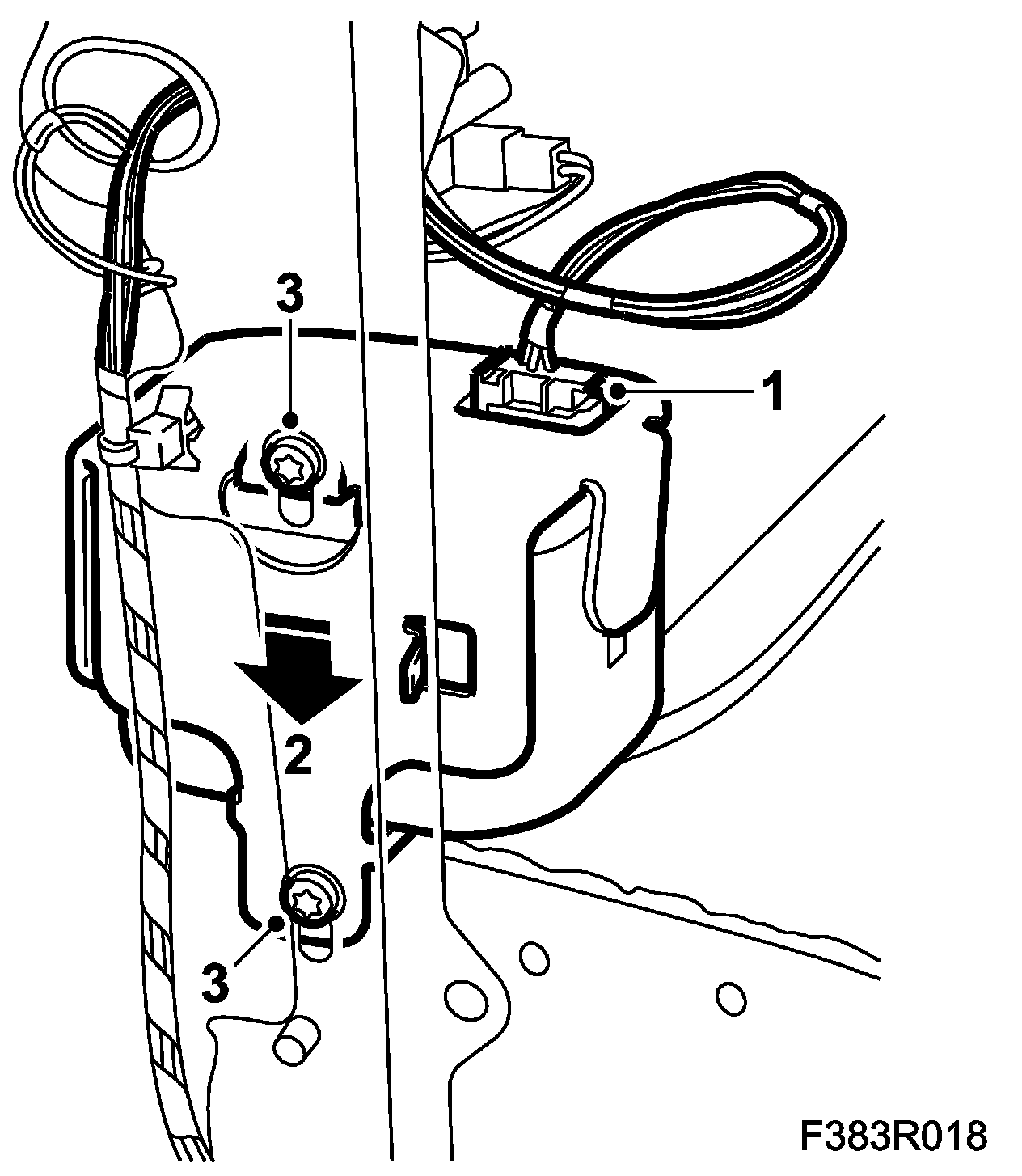

2. Remove the 2 bolts securing the siren.





3. Remove the siren.
4. Unplug the connector.

To fit

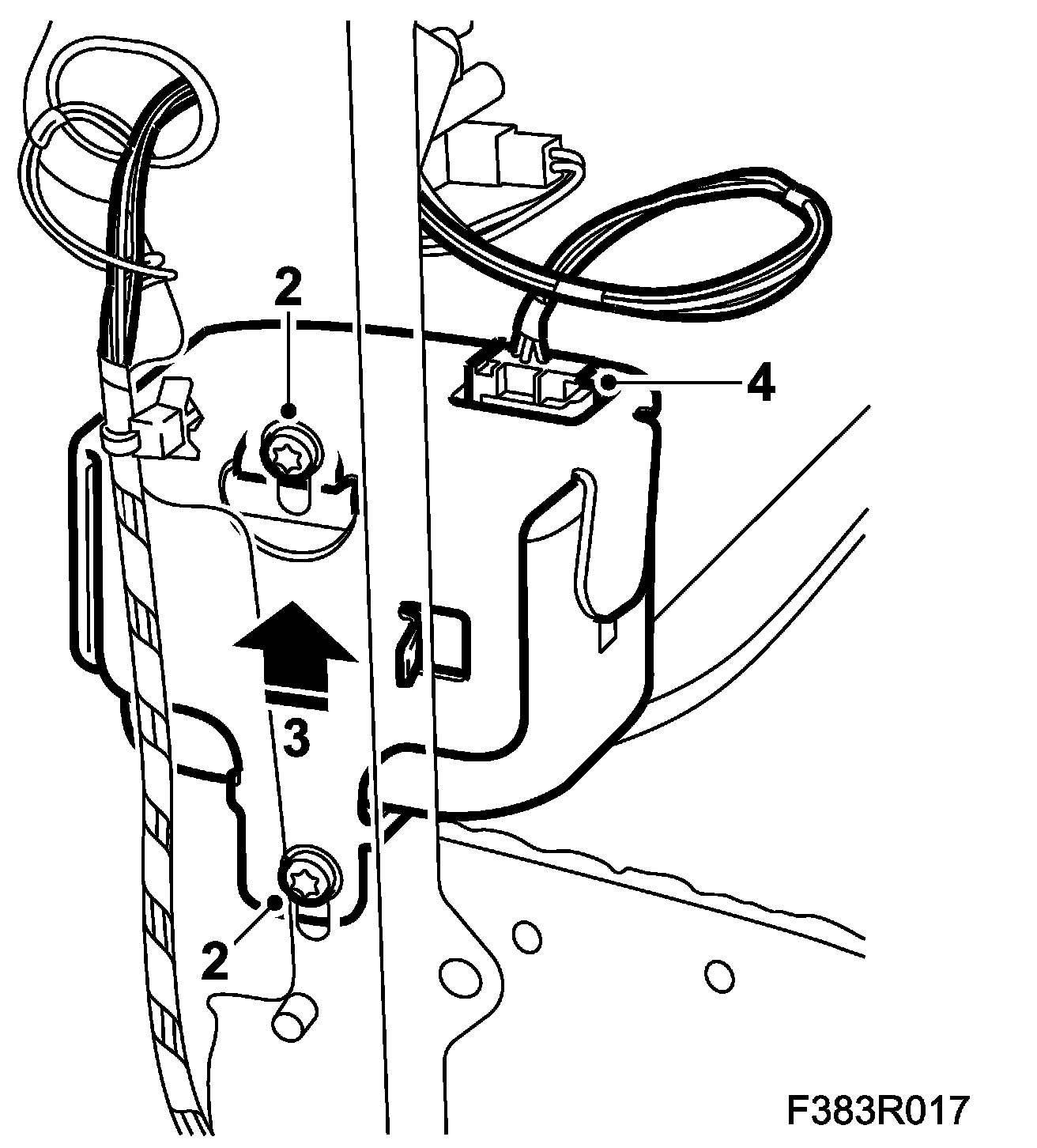

1. Plug in the connector.





2. Fit the siren.
3. Tighten the 2 bolts securing the siren.
Tightening torque 4.0 +/- 1.2 Nm

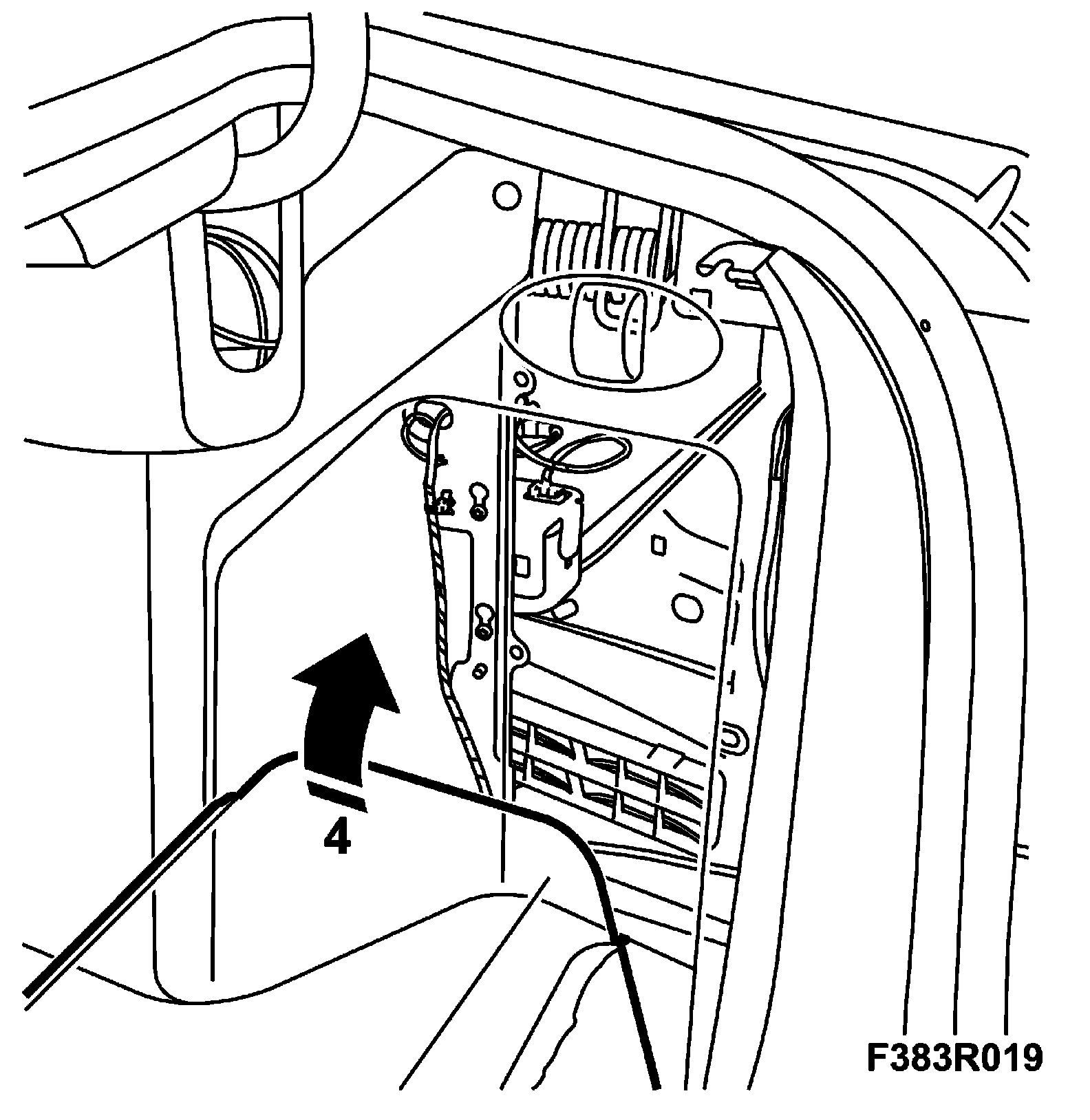

4. 4D: Install Sound insulation, luggage compartment right and close the side hatch.
5D: Install Sound insulation, luggage compartment right and right Rear side trim, 5D.
