Anti-Theft Alarm LED (Light Emitting Diode)

Anti-theft Alarm LED (Light Emitting Diode)

NOTE: Handle the LED with extreme care. The LED's legs are fragile and could easily break off.

To remove

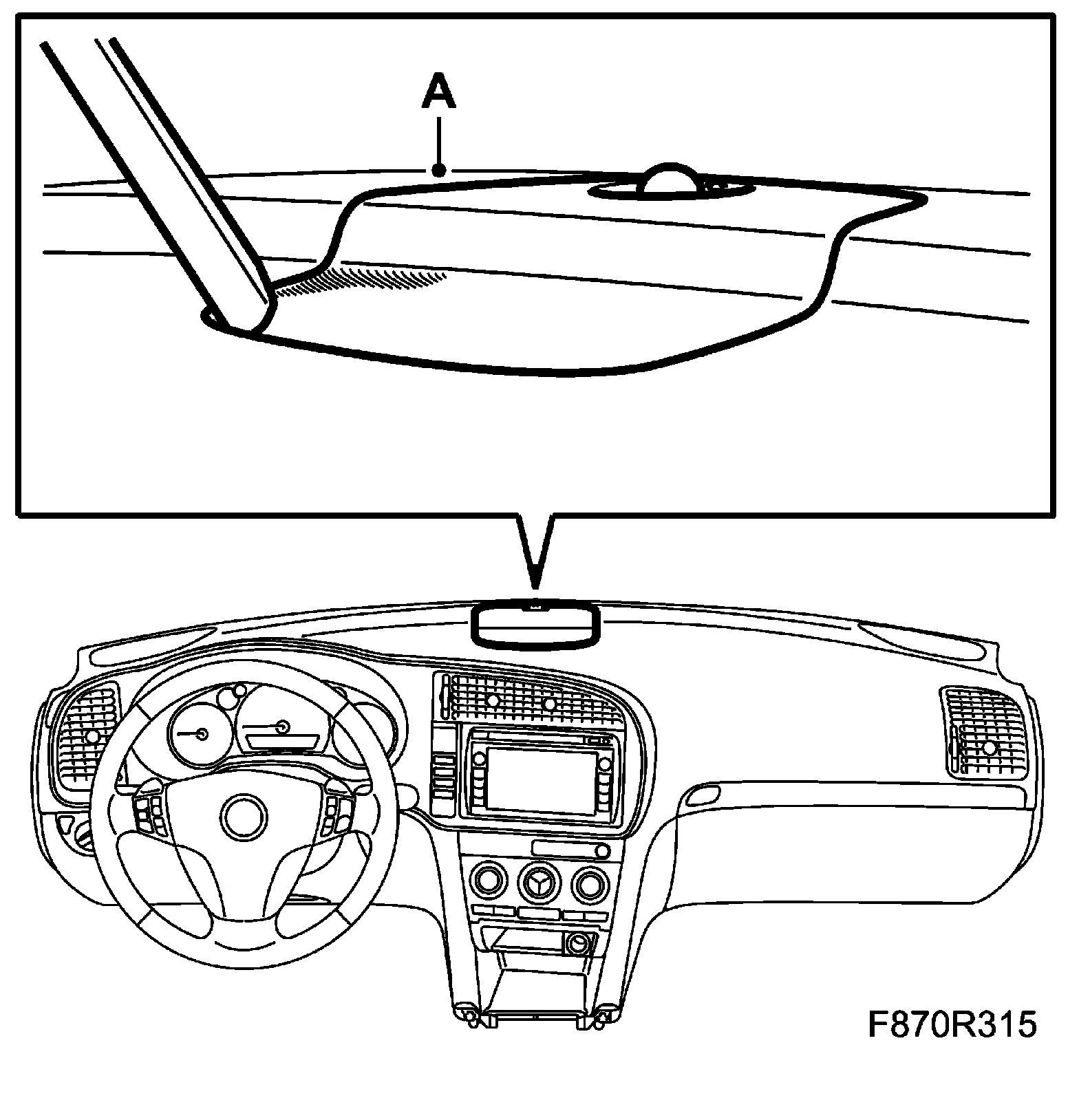

1. Remove the speaker grille (A). Use 82 93 474 Removal tool.

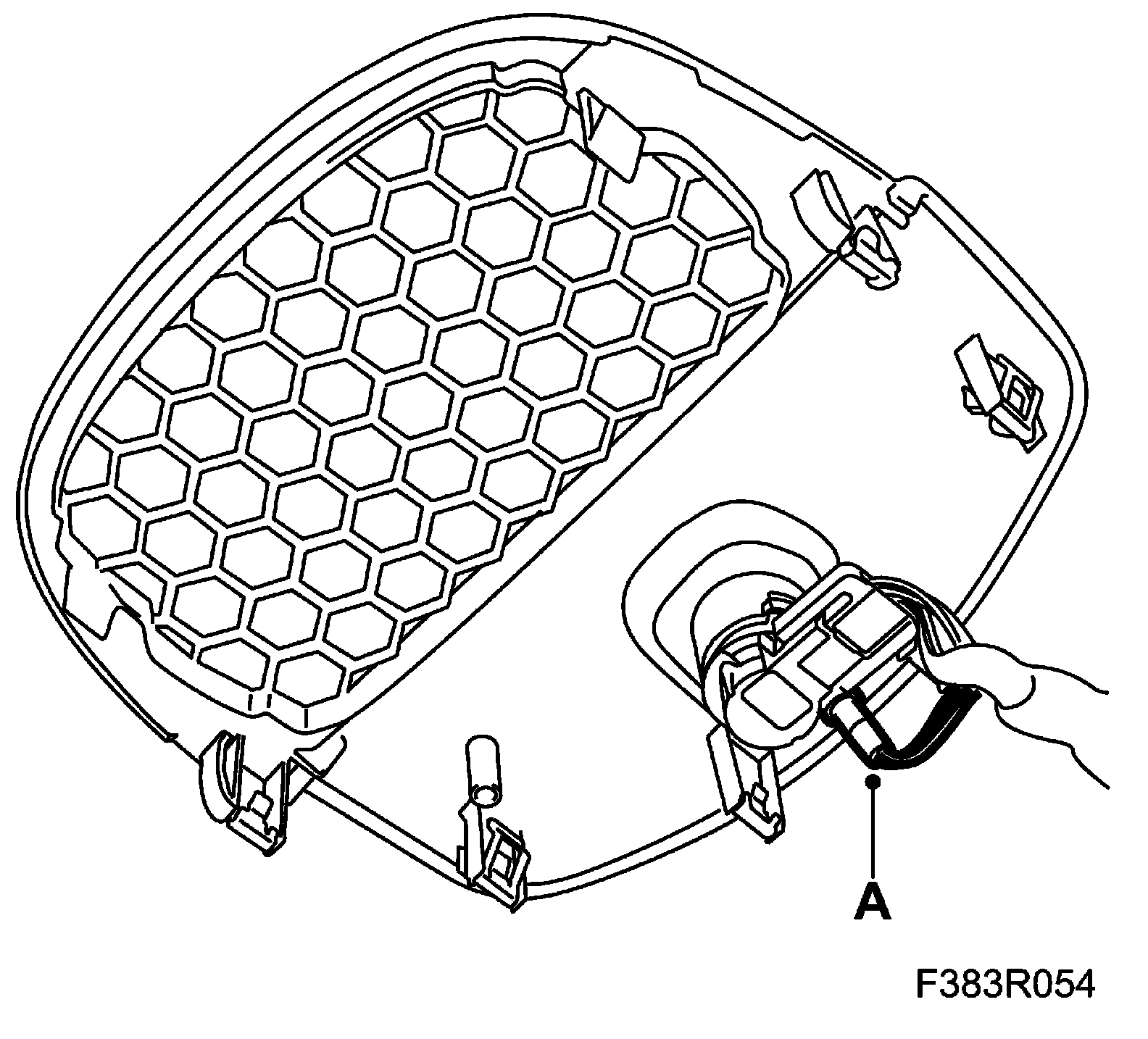

2. Press out the LED (A) from the speaker grille.

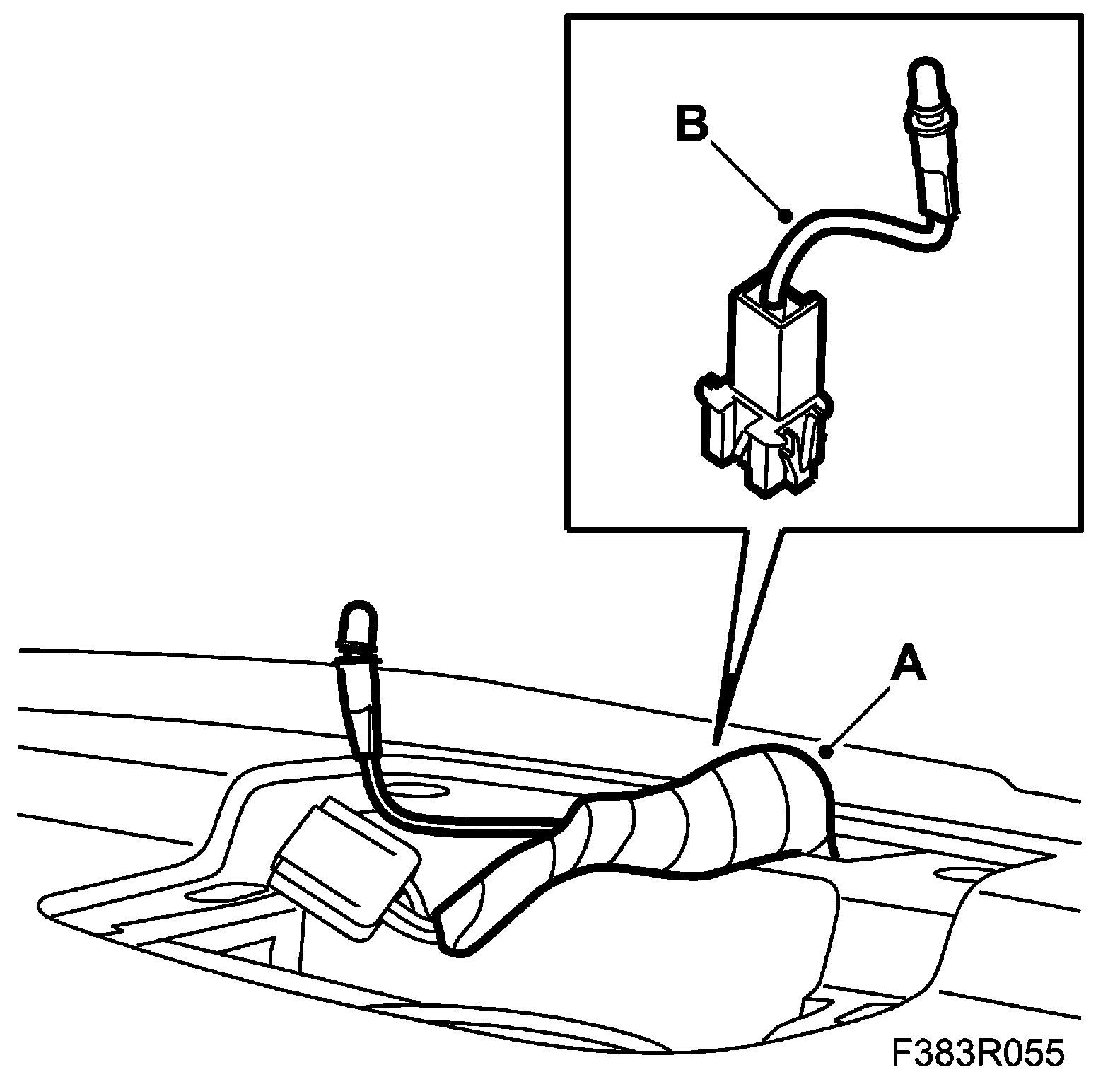

3. Remove the foam tape (A), unplug the connector and remove the LED (B) with the cable.





To fit
1. Plug in the LED's connector (B) and fit new foam tape (A).





2. Fit the LED (A) to the speaker grille.

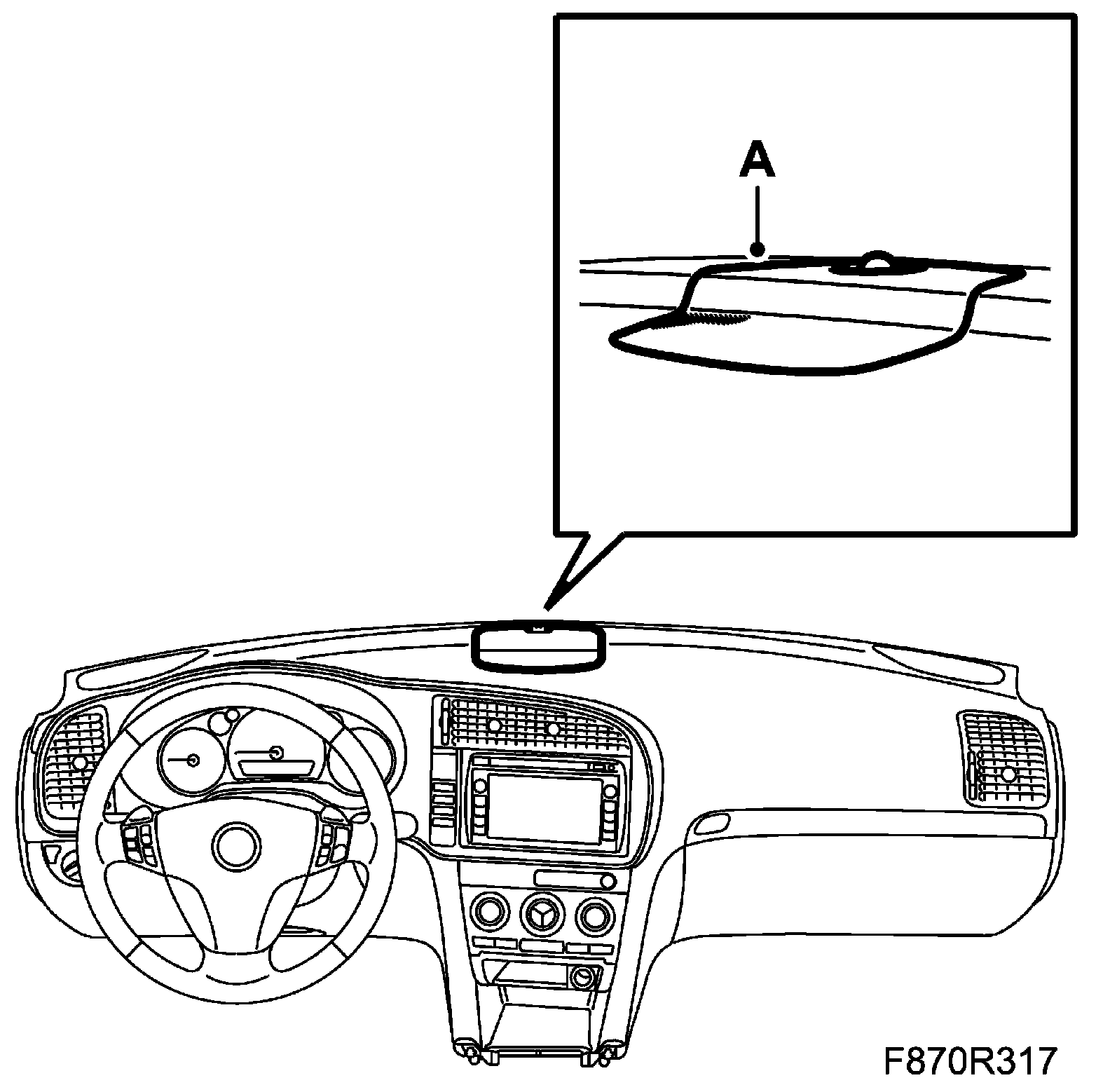

3. Fit the speaker grille (A).
