4D

Antenna amplifier, 4D

To remove

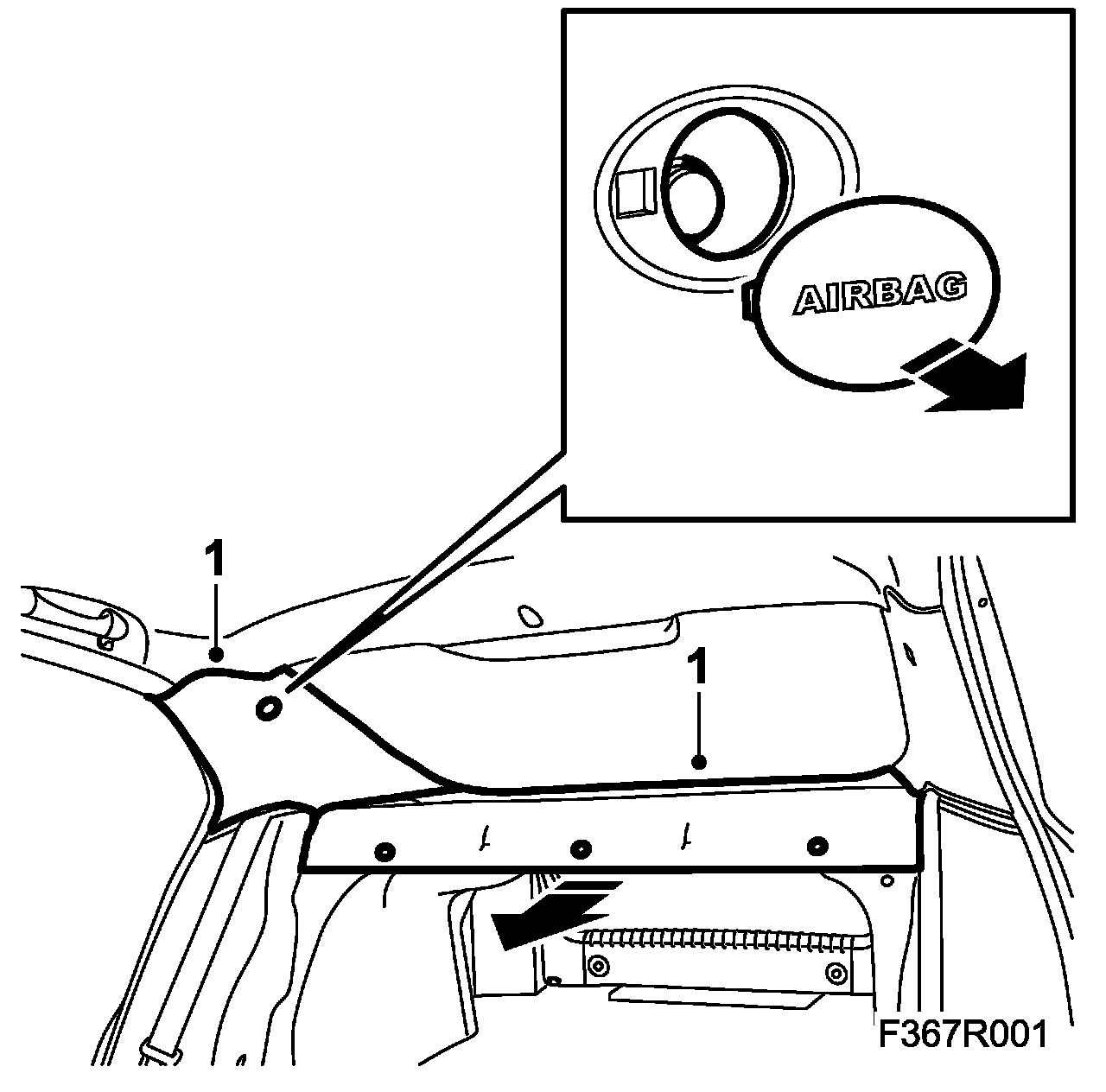

1. Remove the right-hand C-post trim.

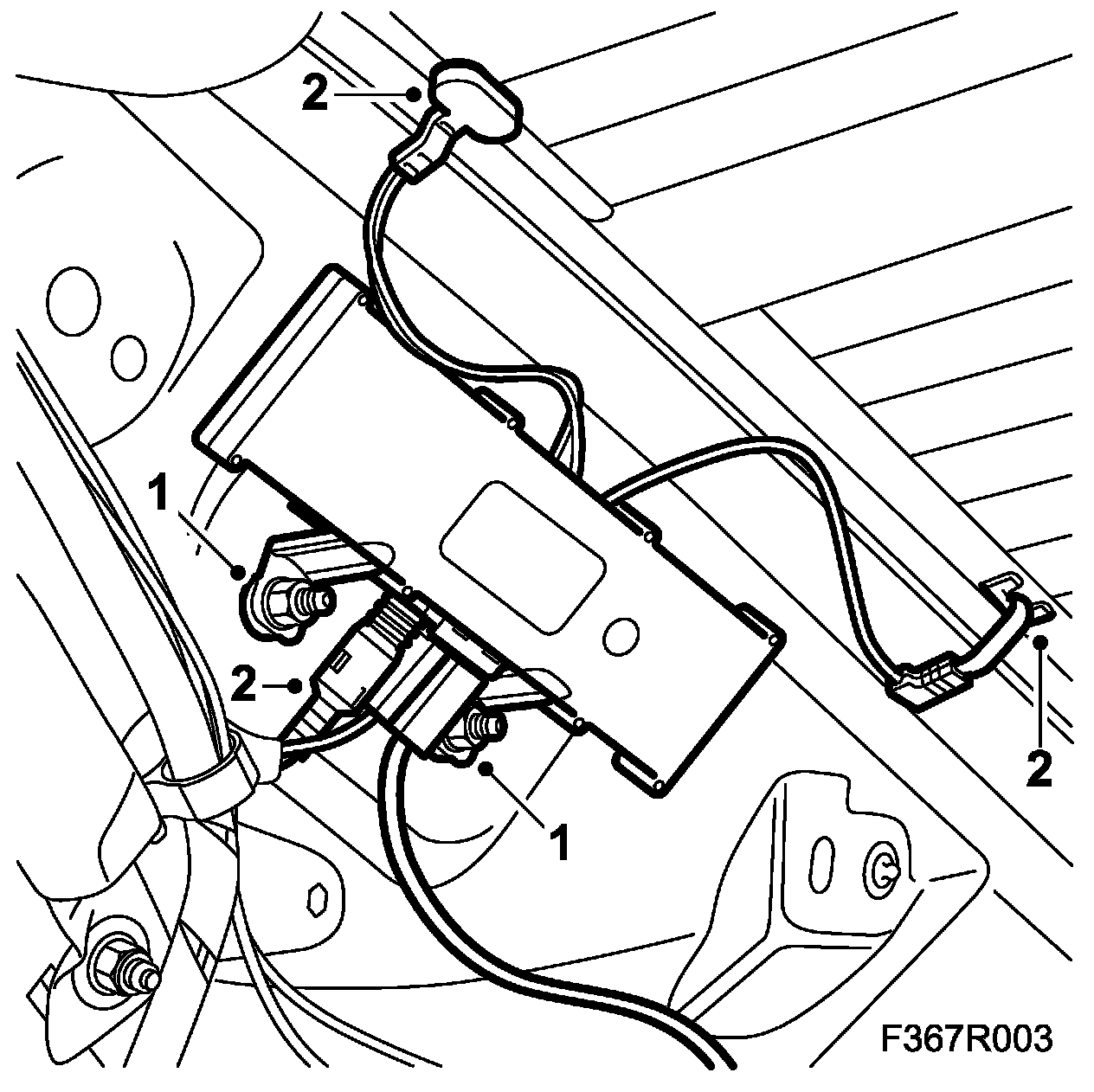

2. Unplug the connectors from the amplifier and the rear window.





3. Remove the amplifier.

To fit

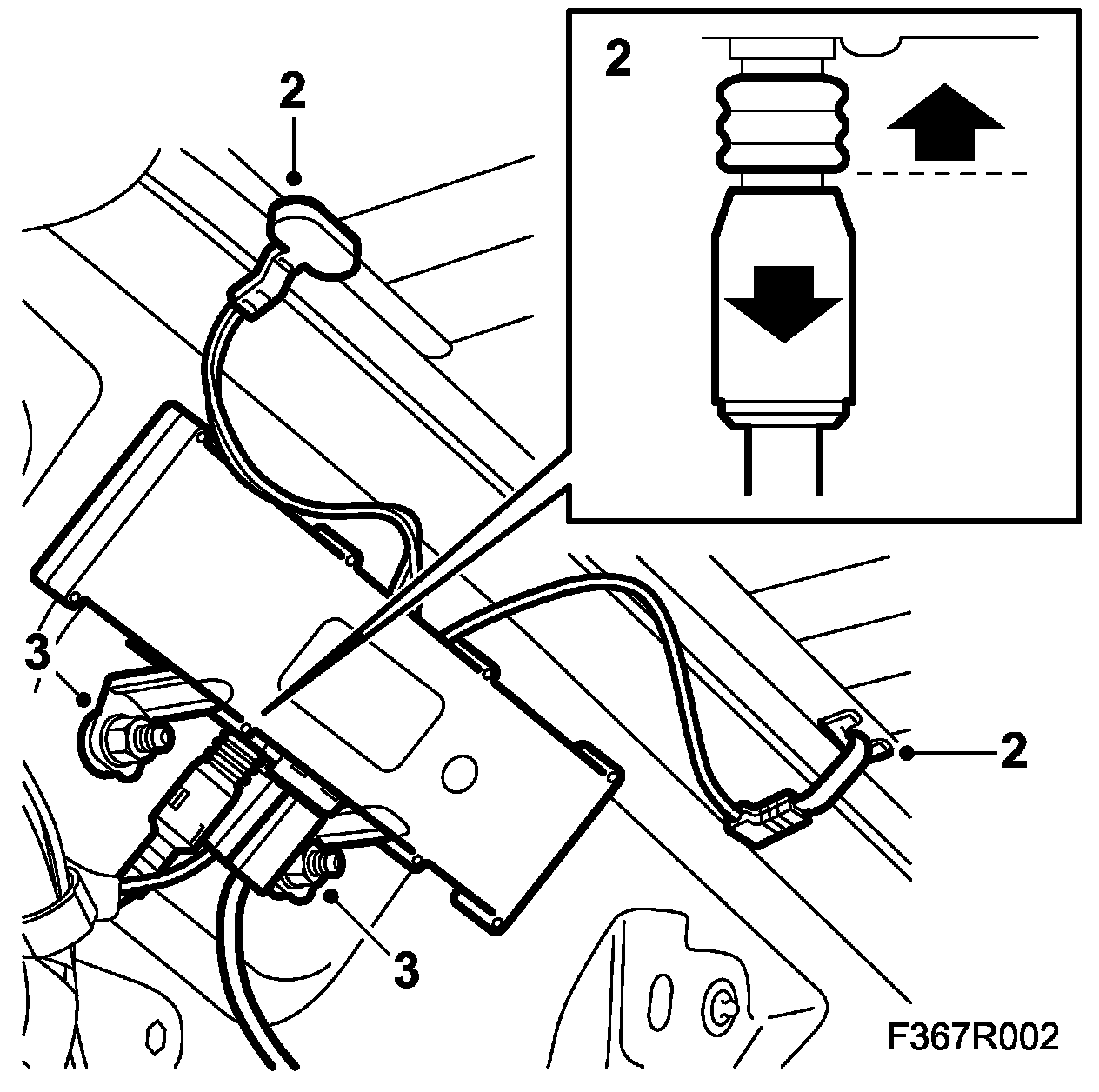

1. Fit the antenna amplifier





2. Plug the connectors into the amplifier and the rear window.

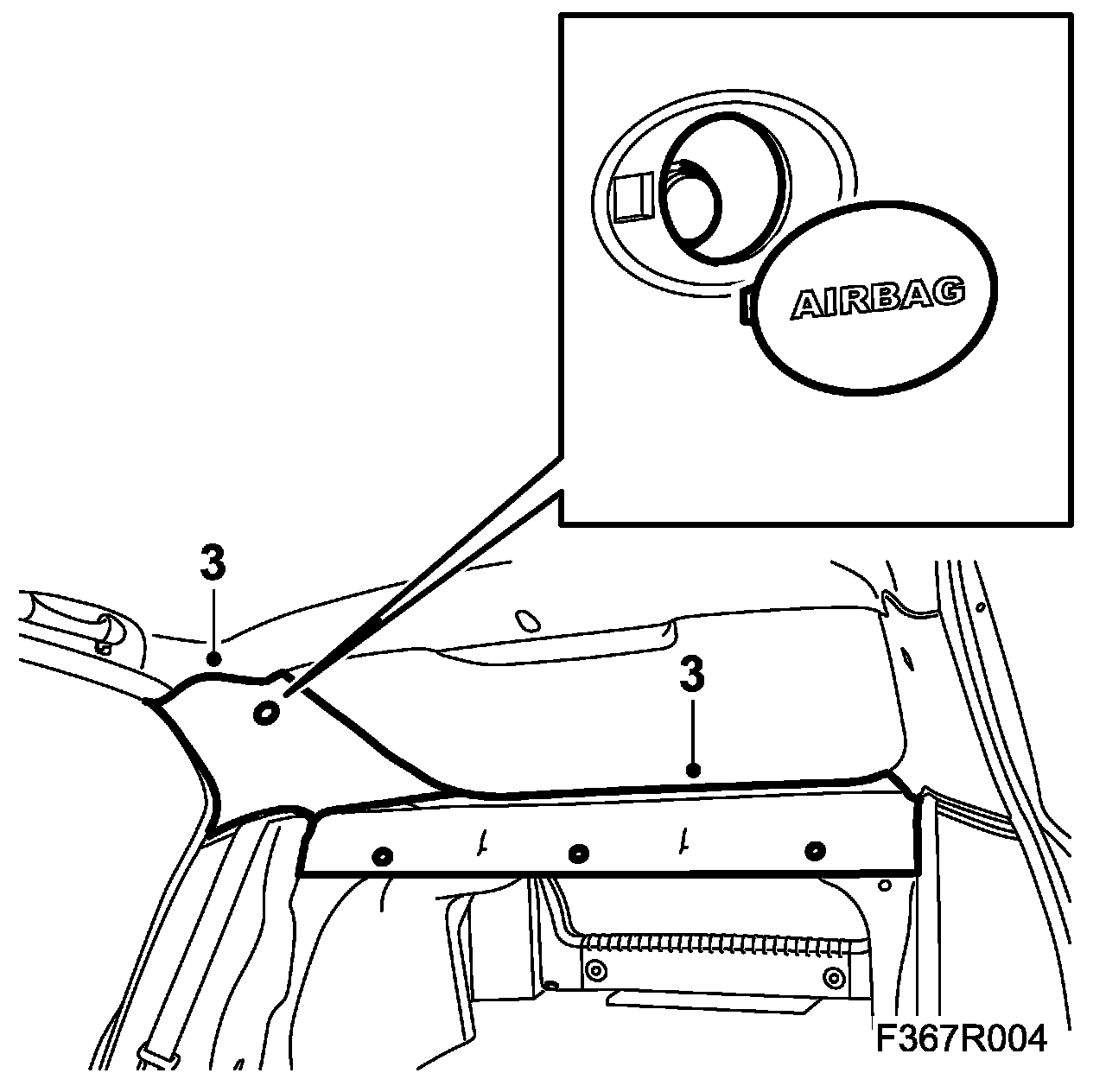

3. Fit the right-hand C-pillar trim.
