Engine Bay Fuse Box 342
Engine Bay Fuse Box 342

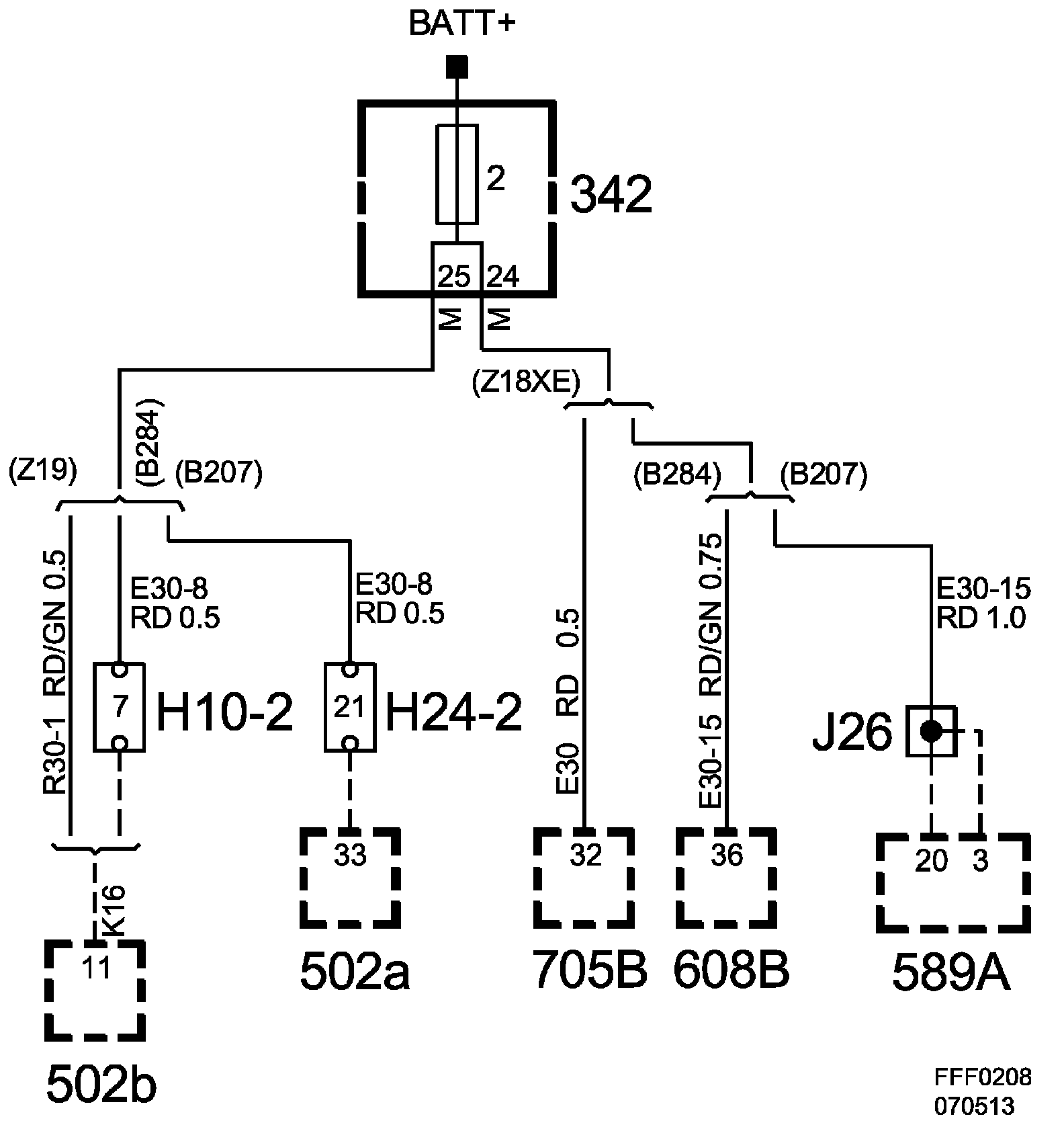

Fuse 2, Engine Bay Fuse Box
Fuse 2, Engine Bay Fuse Box:

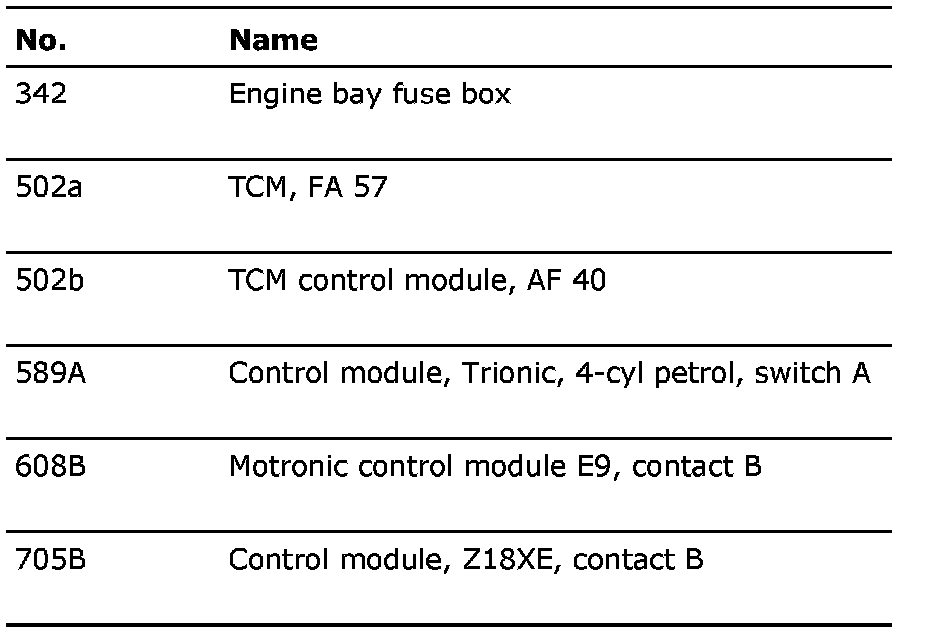

List of components:
