Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Electrical Center 727

Electrical Center 727

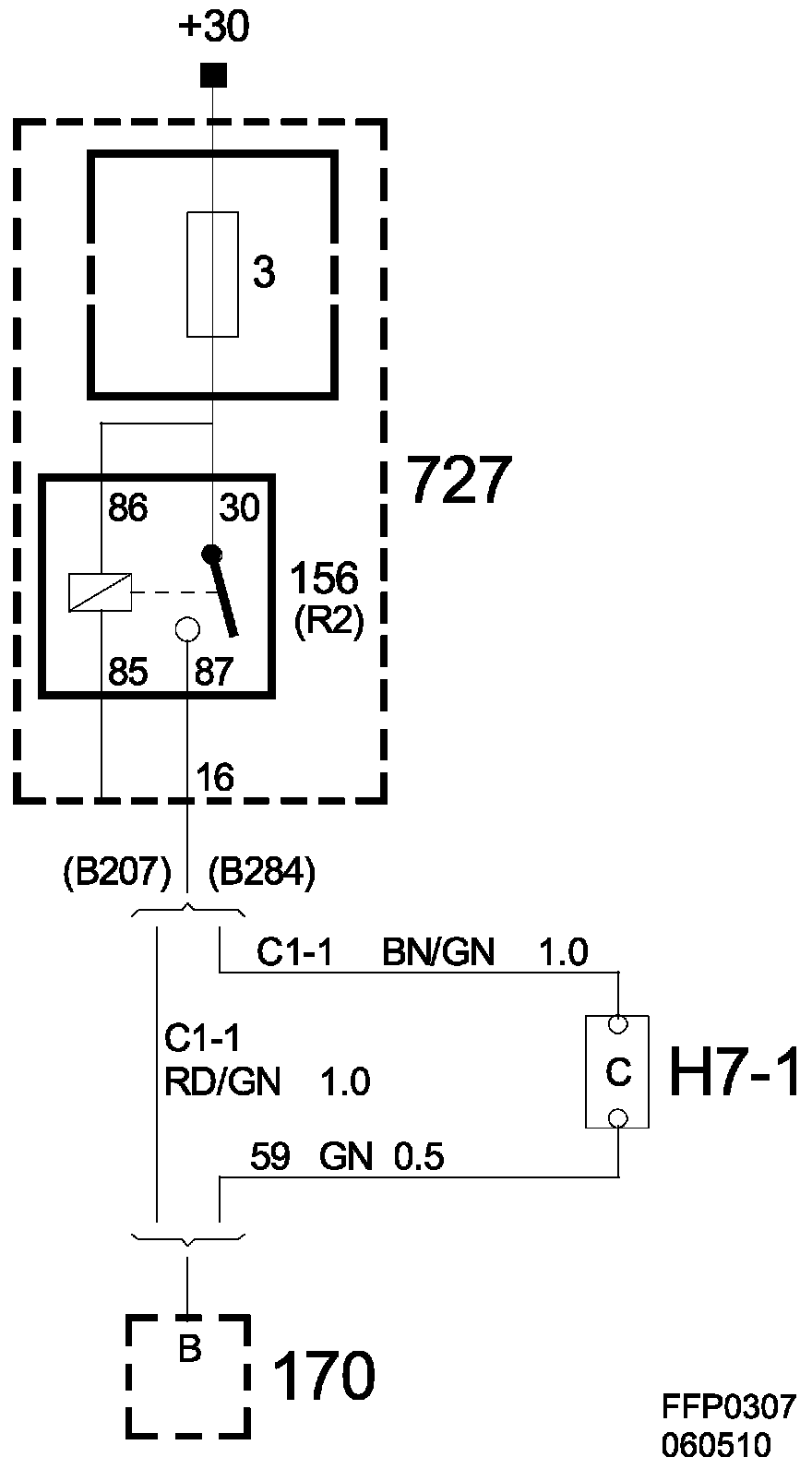

Fuse 3, Electrical Centre 727:

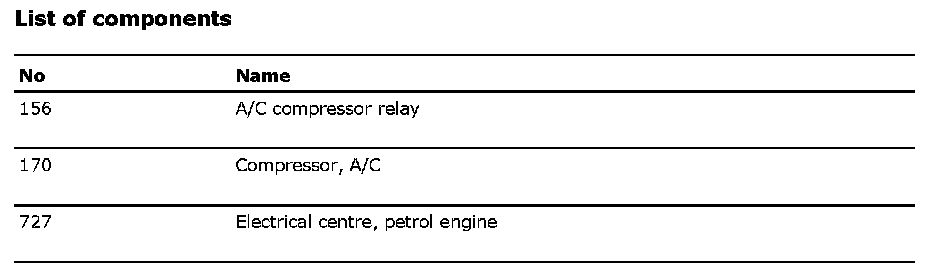

List Of Components:
