Engine Management System Trionic T8 (Part 4/4)

Engine Management System Trionic T8 (Part 4/4):

T8 also controls the following systems:
1. Radiator fan system, B207, one fan
Radiator fan system, B207, two fans
2. Starting system B207
3. Air conditioning, A/C

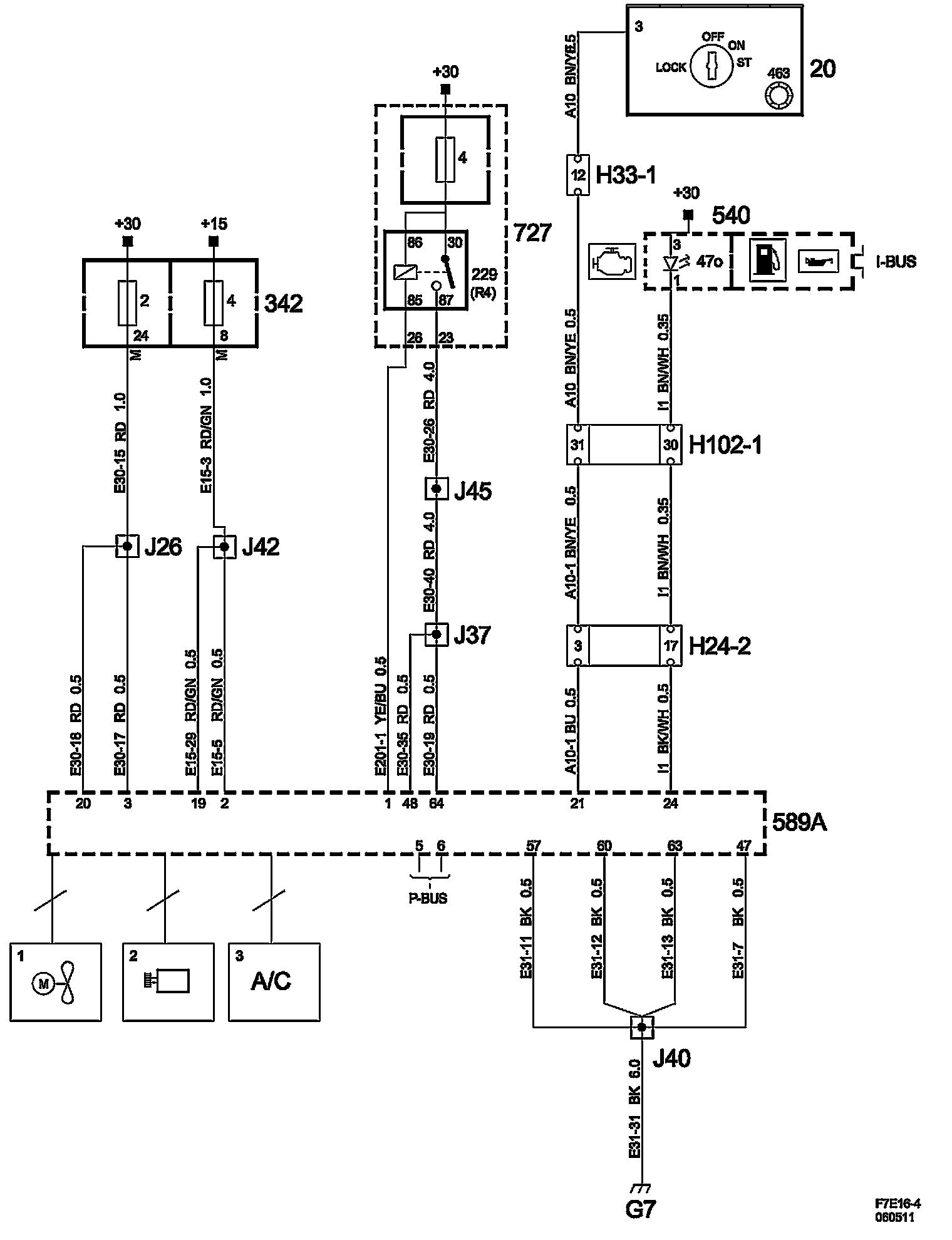

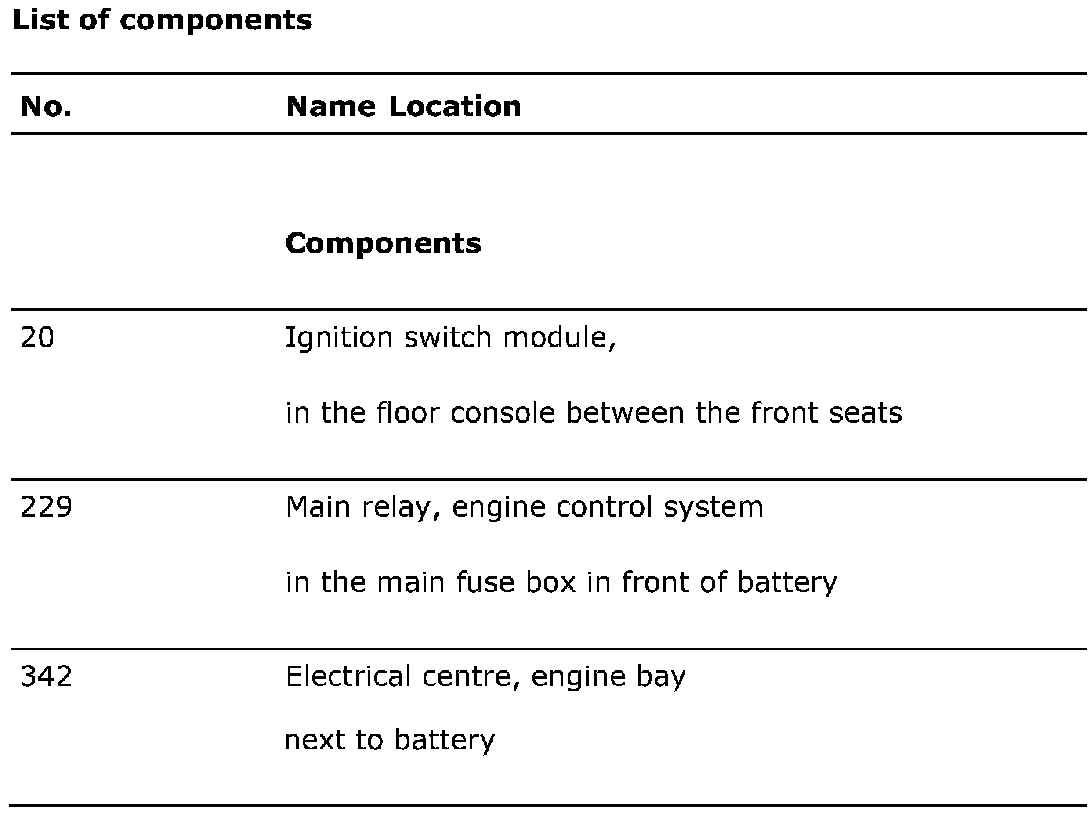

List Of Components (Part 1):

List Of Components (Part 2):

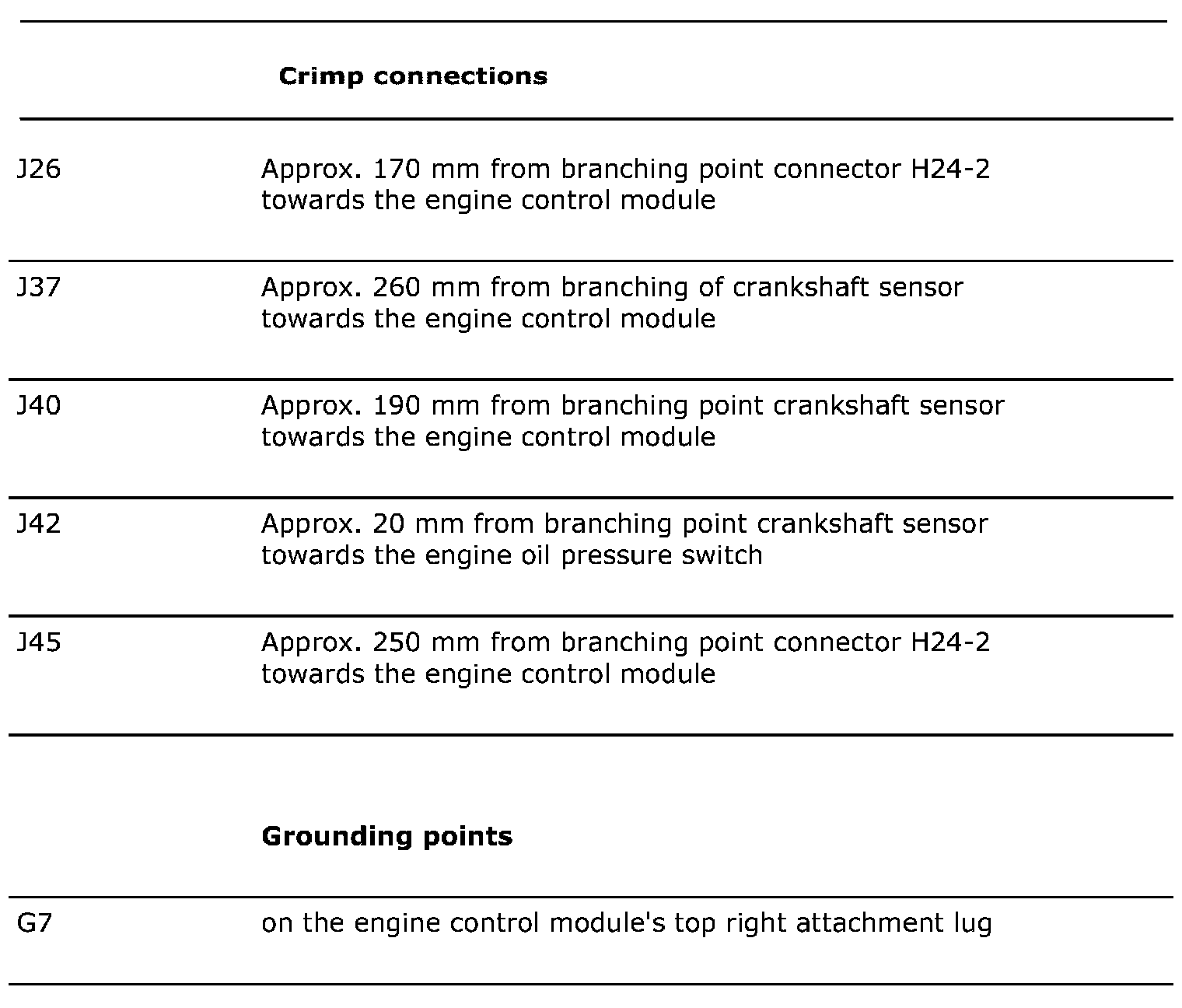

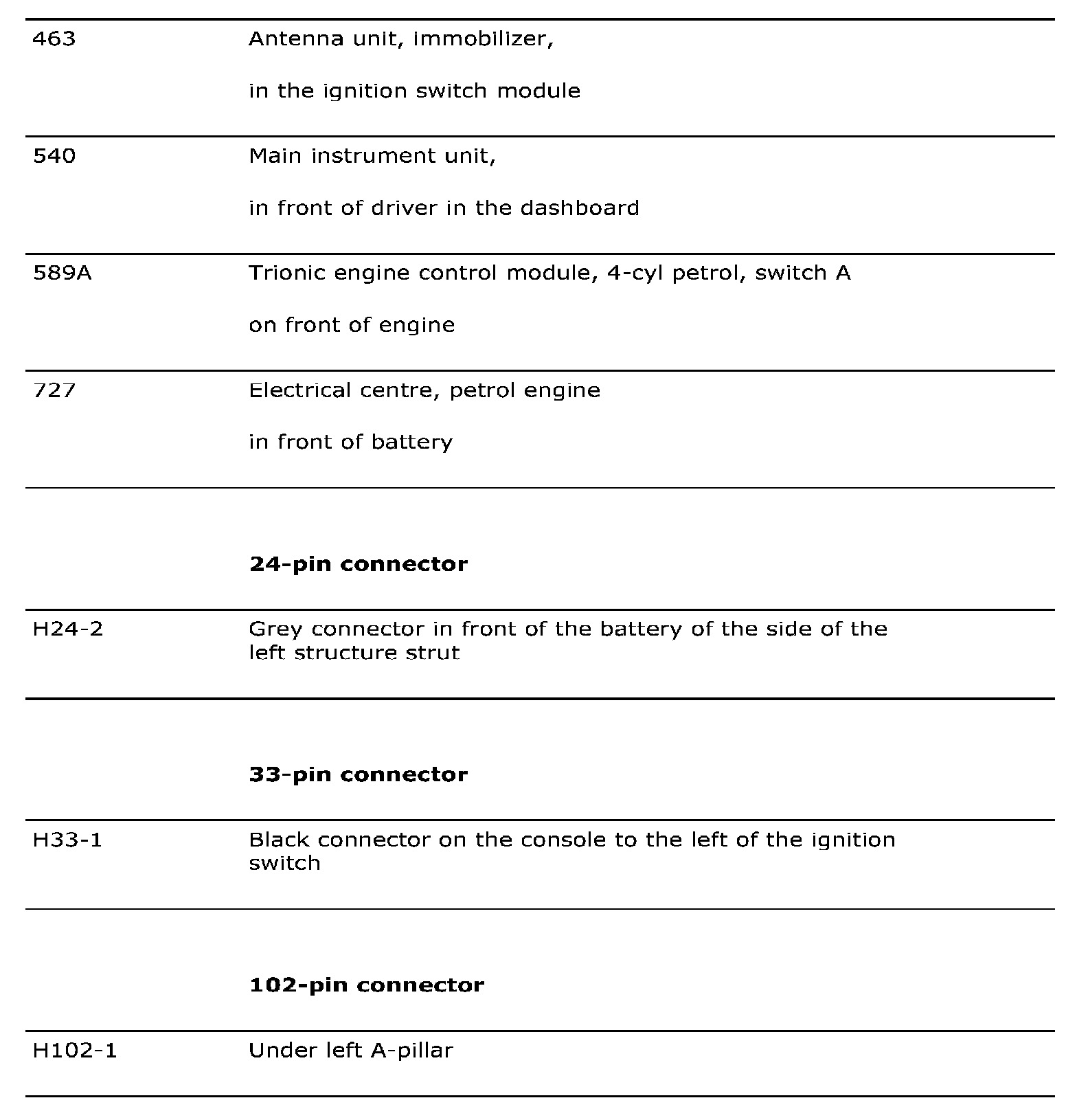

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
