Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Main Fuse Box 727 >> Fuse 4

Fuse 4




Fuse 4, Main Fuse Box 727

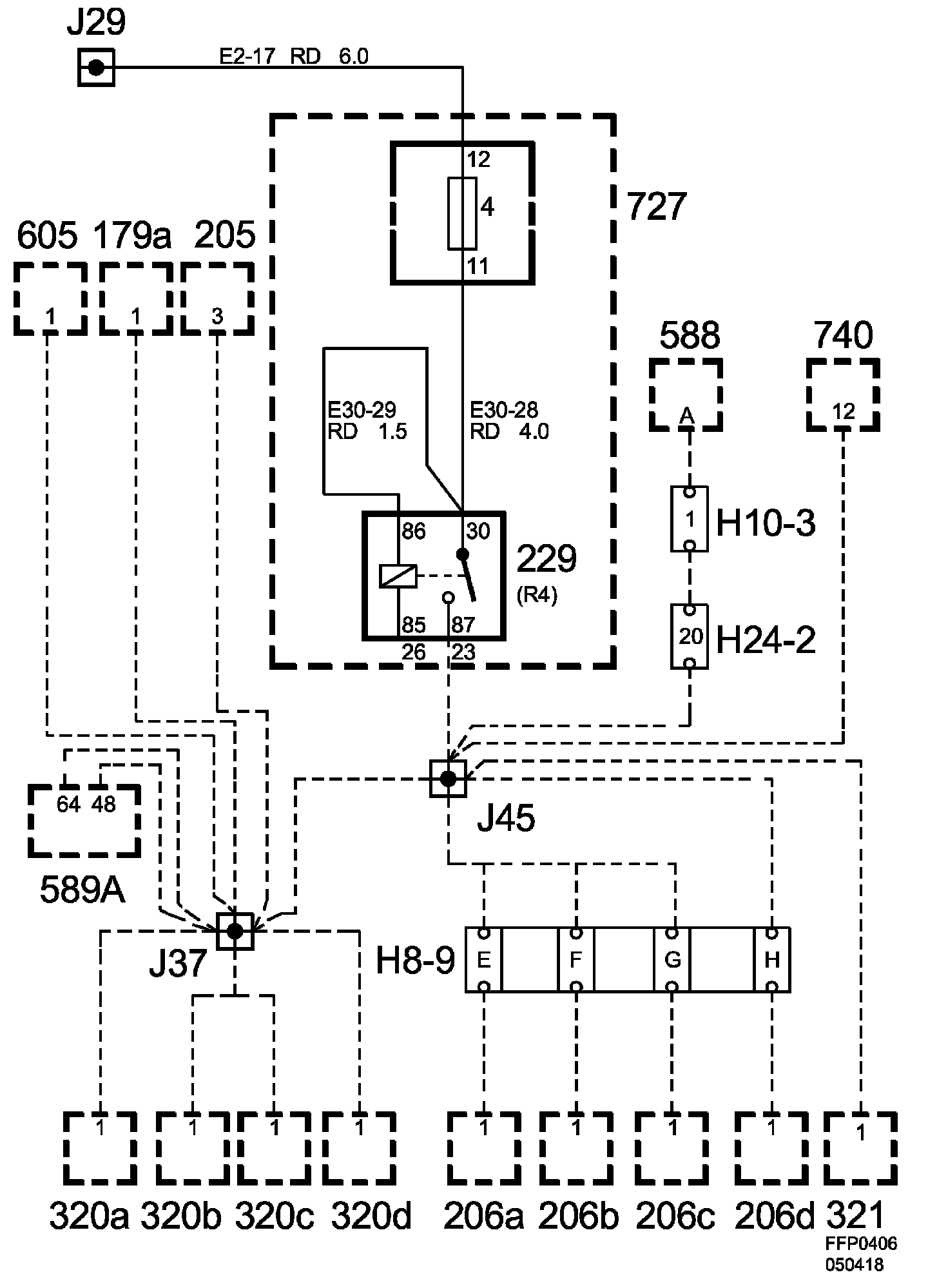

Fuse 4, Main Fuse Box 727:

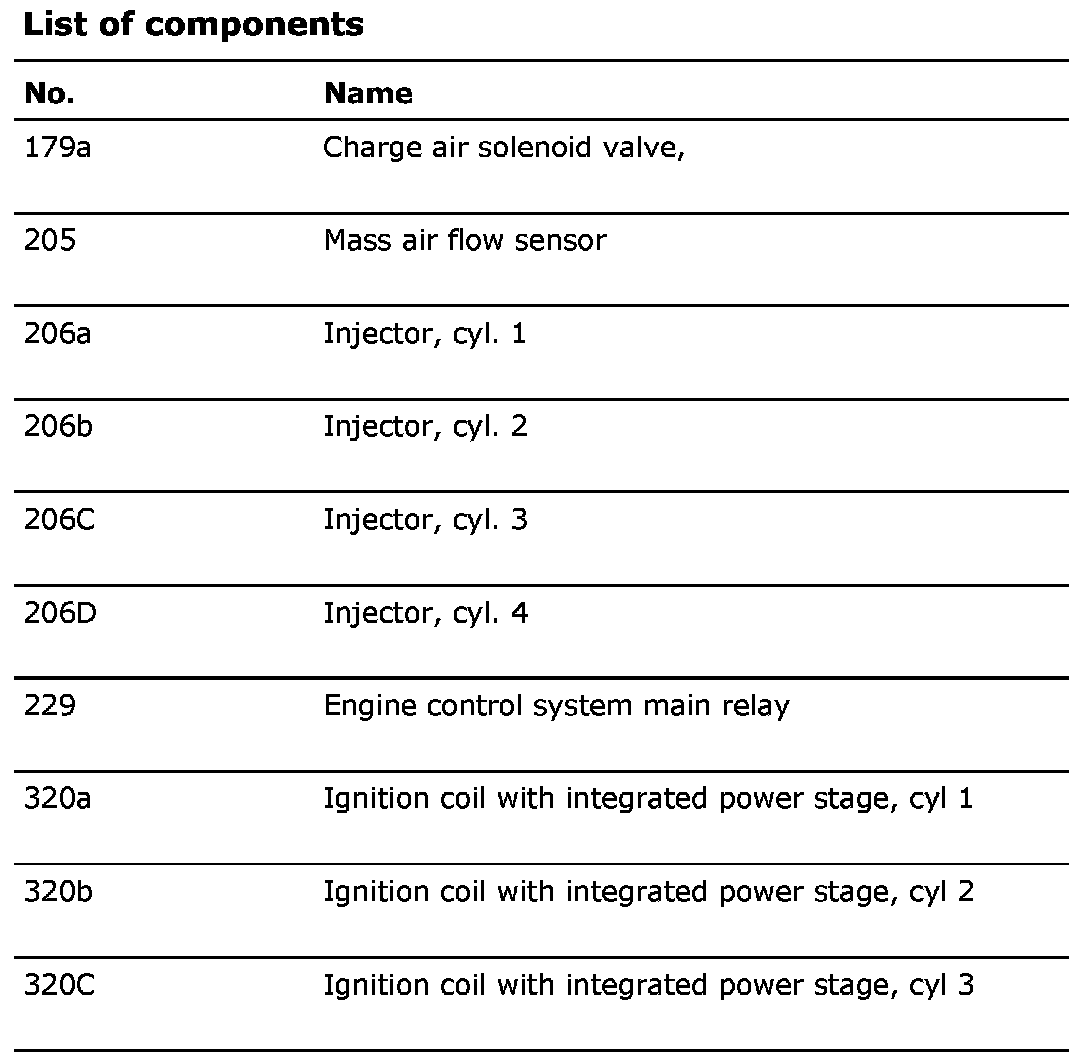

List Of Components (Part 1):

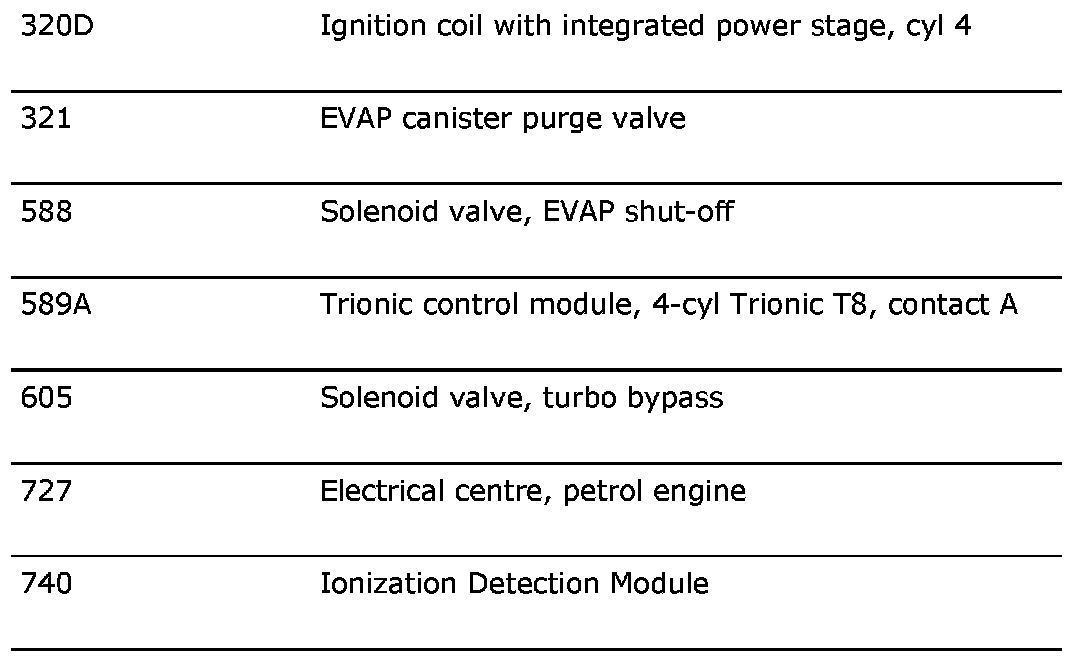

List Of Components (Part 2):
