Entertainment Head Unit With Navigation, Part 1/2

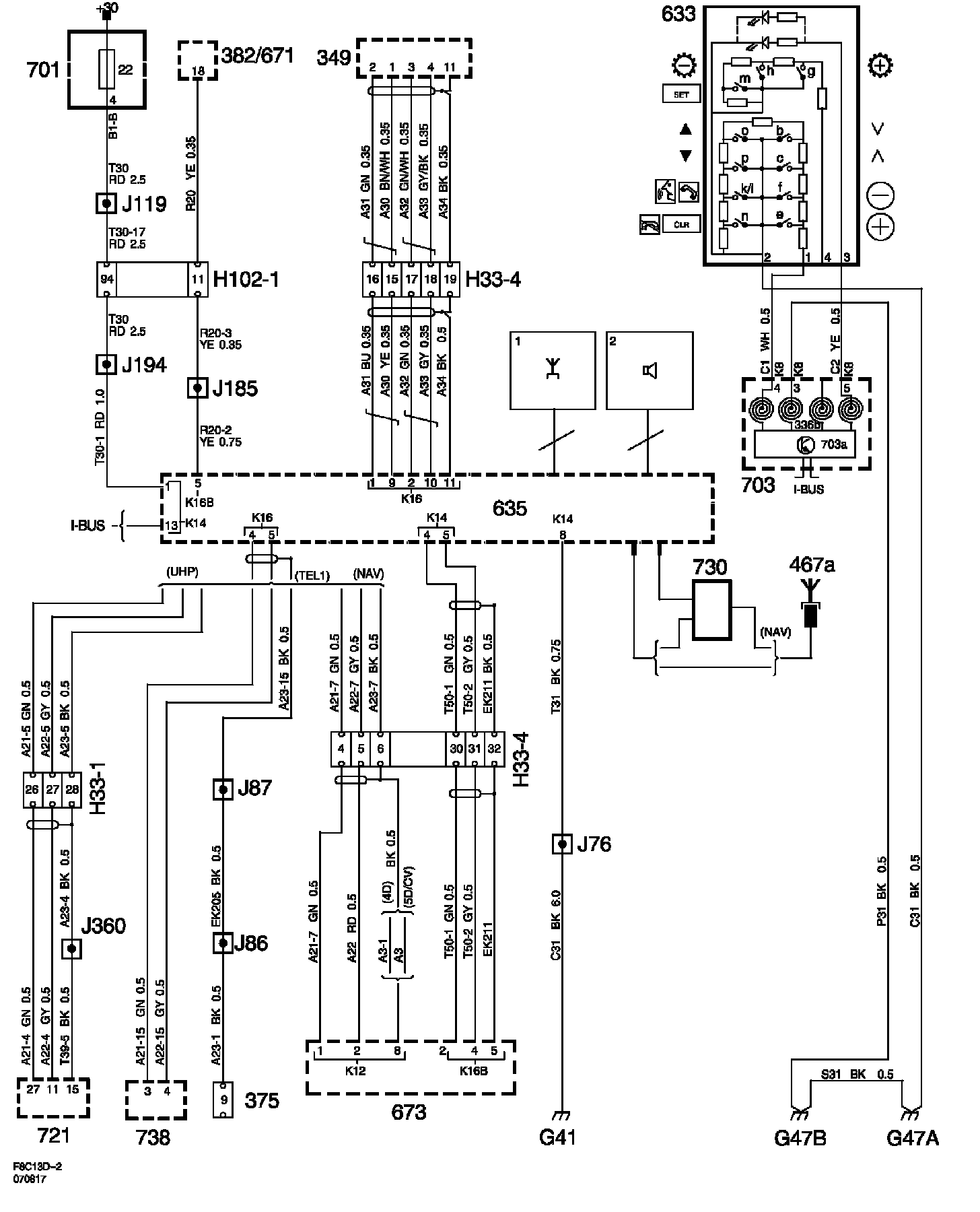

Entertainment Head Unit With Navigation, Part 1/2:

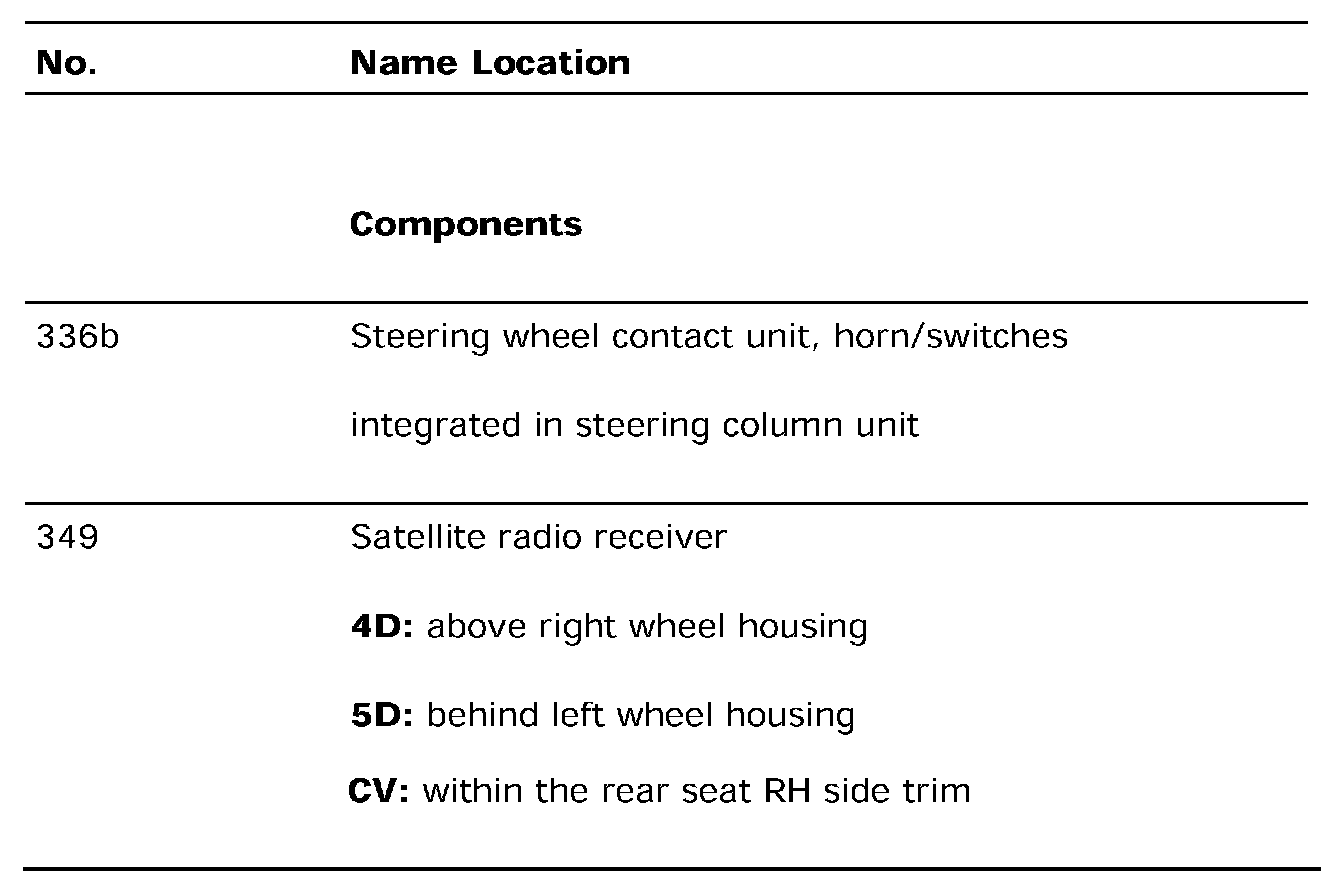

List Of Components (Part 1):

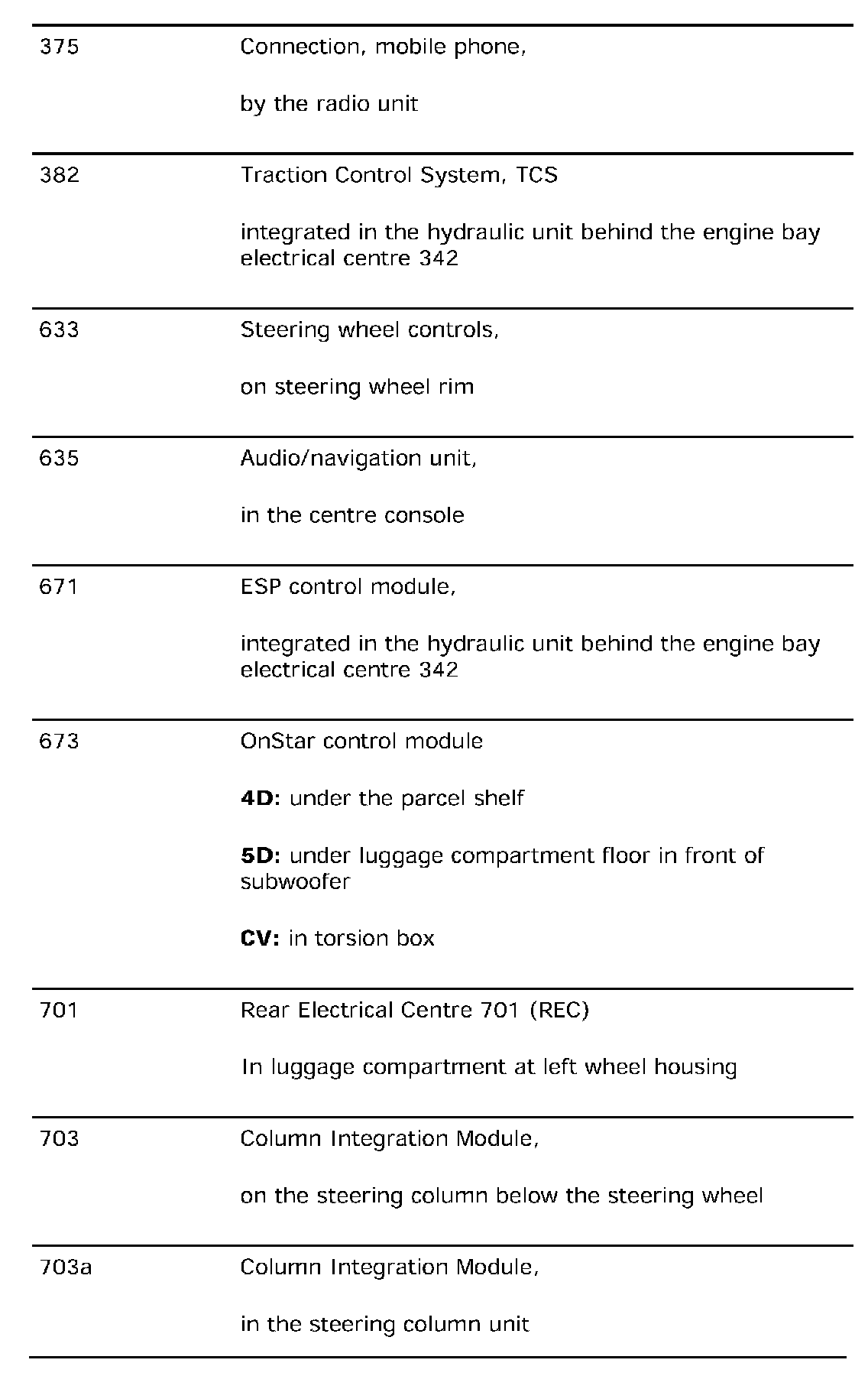

List Of Components (Part 2):

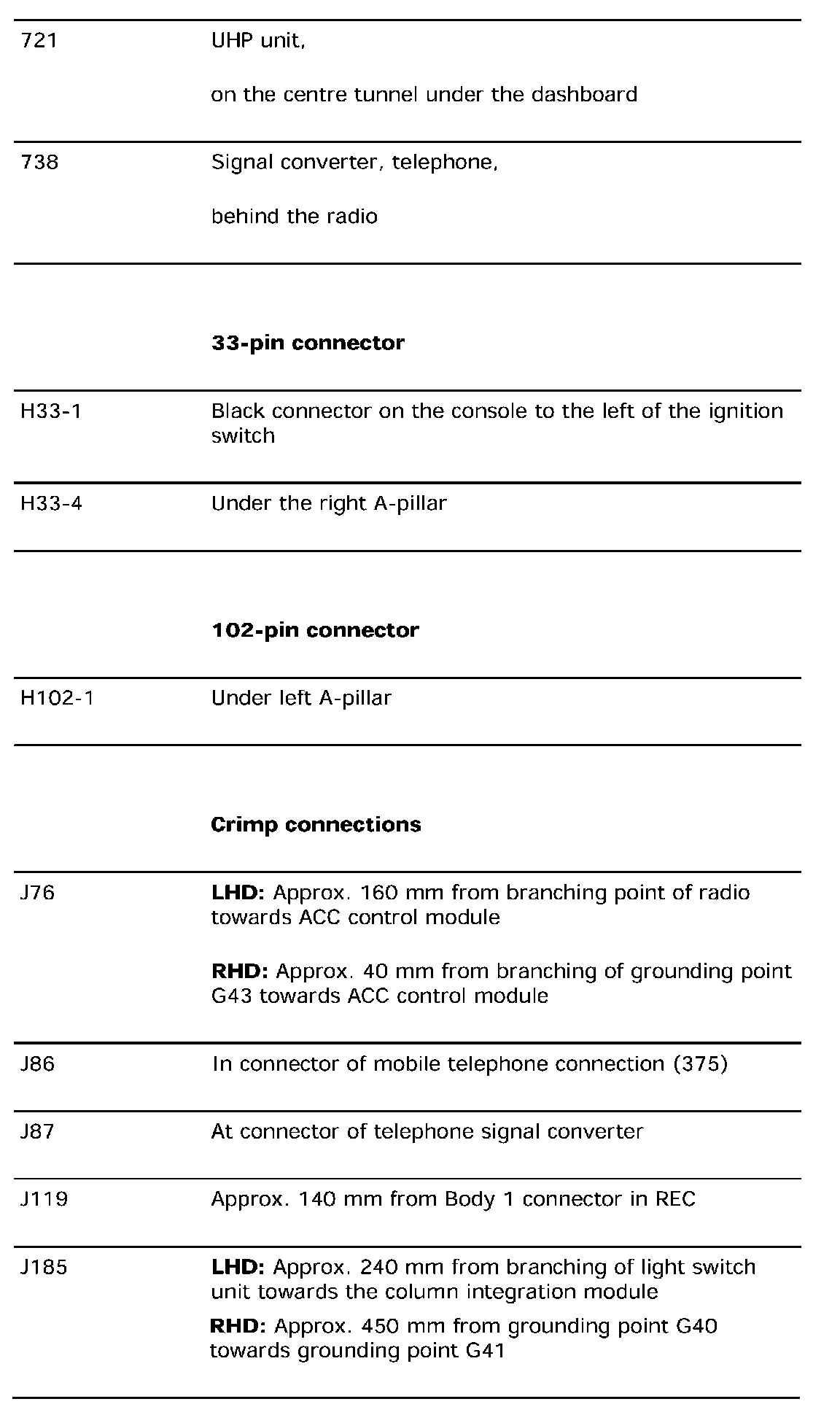

List Of Components (Part 3):

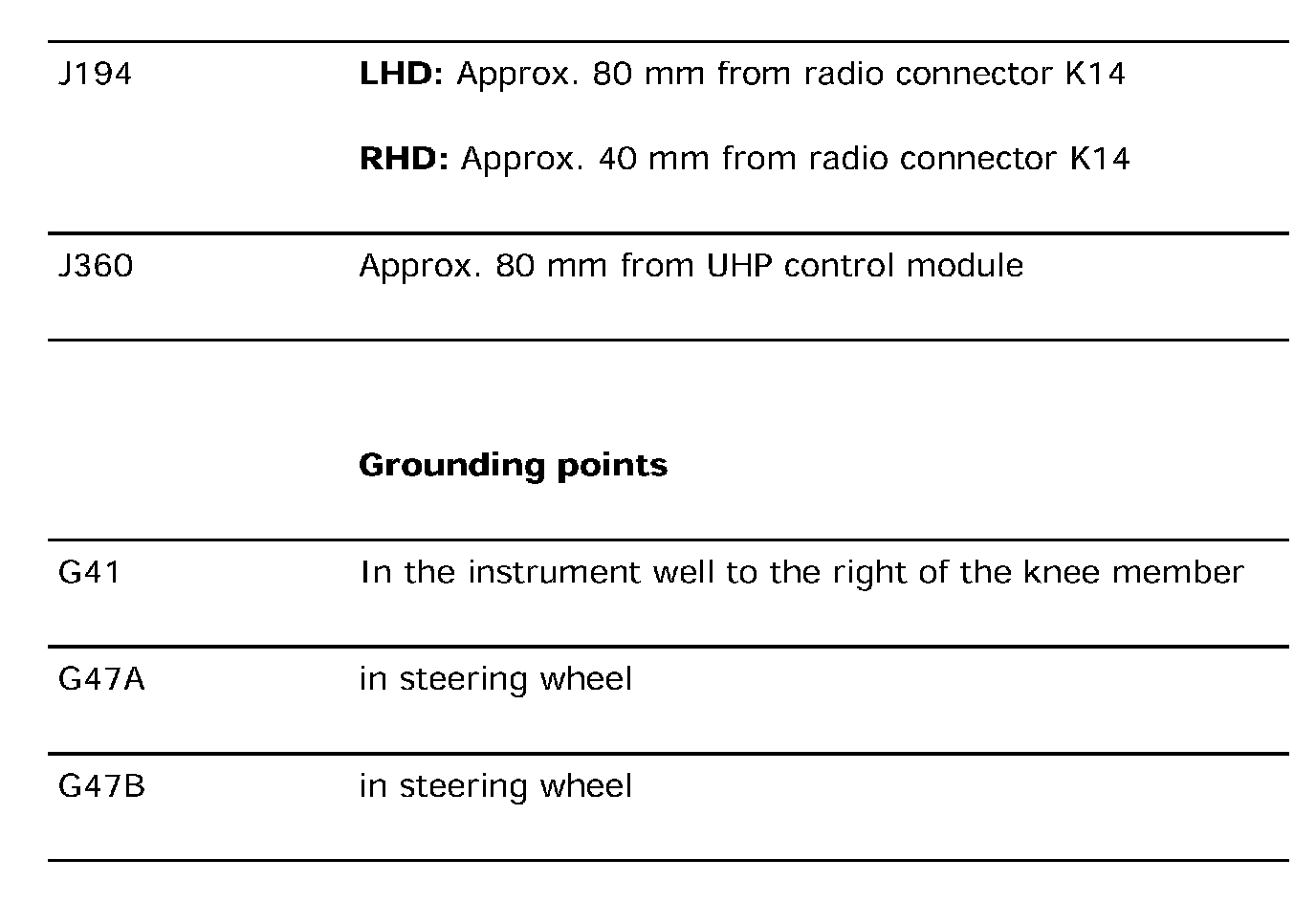

List Of Components (Part 4):

1. Antenna system
2. Audio amplifier
Audio amplifier, bass speaker
Audio amplifier, front
Audio amplifier, rear

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
