Engine Bay Electrical Center 342 (UEC)
Engine Bay Electrical Center 342 (UEC)
Location:
The electrical center is located between the battery and the left front wing.
Main task
Act as the electrical center for the front of the car and handle some parts of the logic for the front lighting as well as the visibility and signal systems.
Distributes current from the battery to the other electrical centers.
The electrical center contains the transport fuse (fuse 37).
Type
Electrical center with relays, maxi and micro-fuses and integrated control module for logic operations.
Connect
The fuse box is connected to the battery and to grounding points G30A, G30B and G33S. The electrical center is connected via three switches in its base to the engine harness, front harness and main harness.
Power supply circuit for +30
Power supply circuit for +15
The engine harness is connected via switch M
M (engine harness)
Pin No. 1-4:

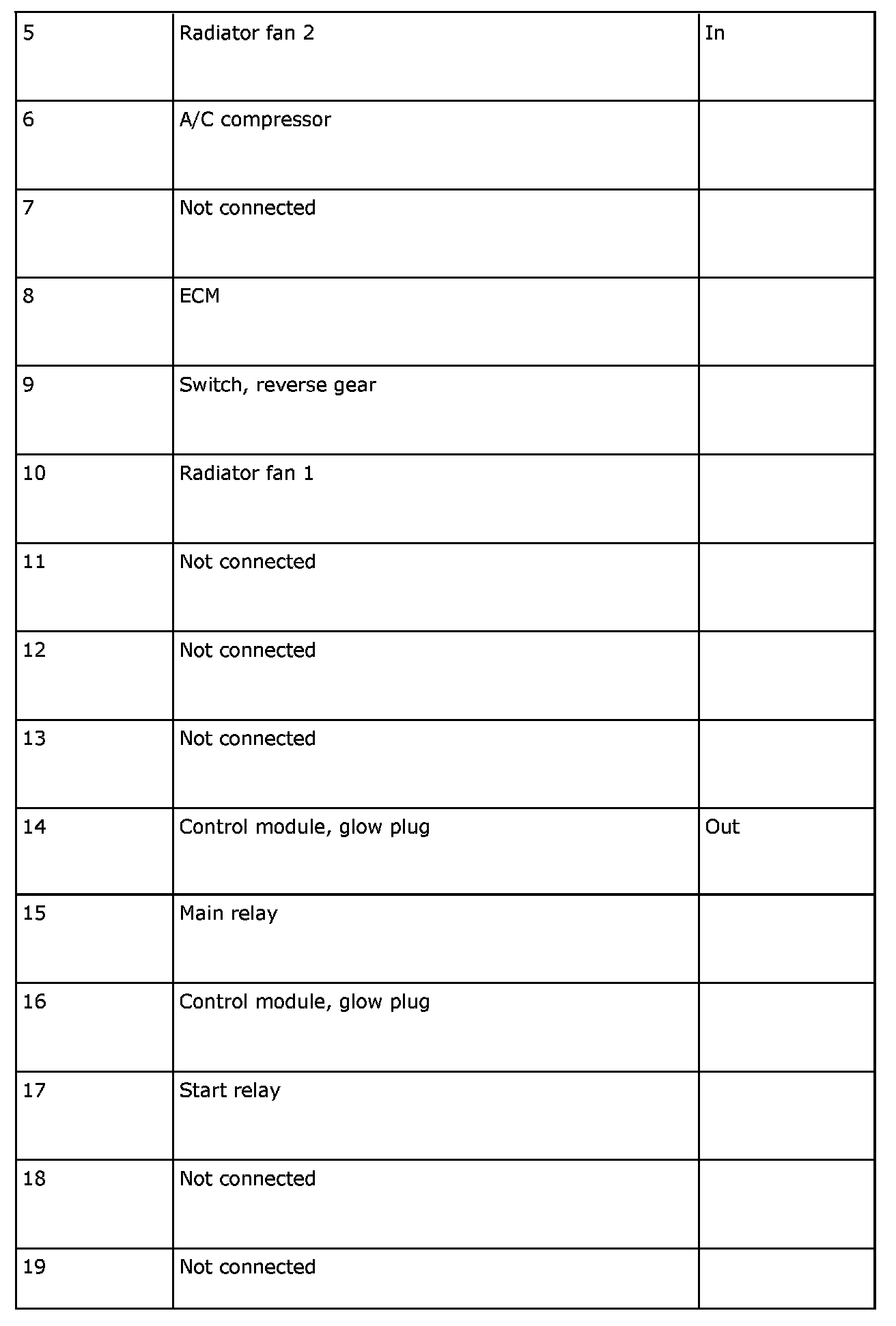

Pin No. 5-19:

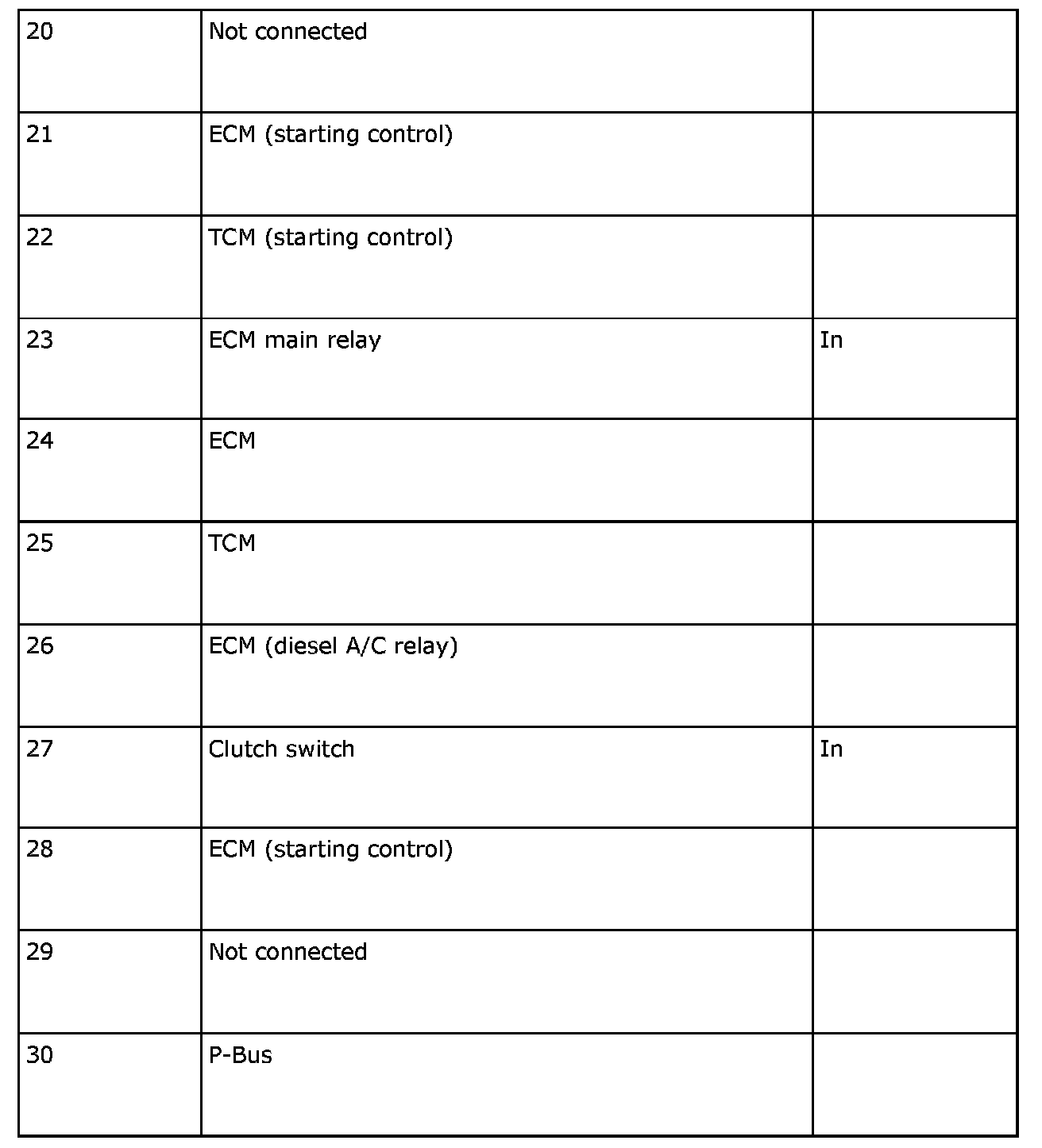

Pin No. 20-30:

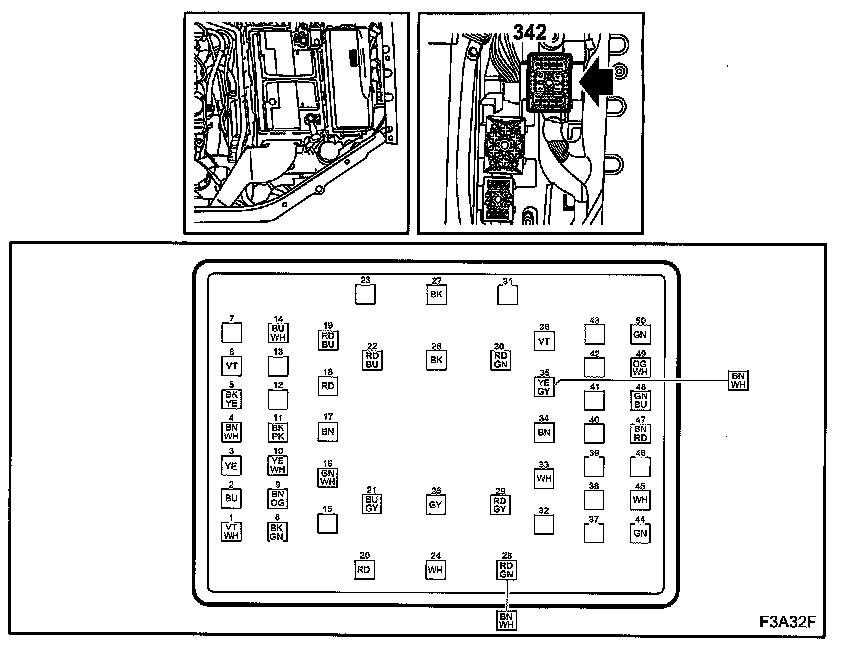

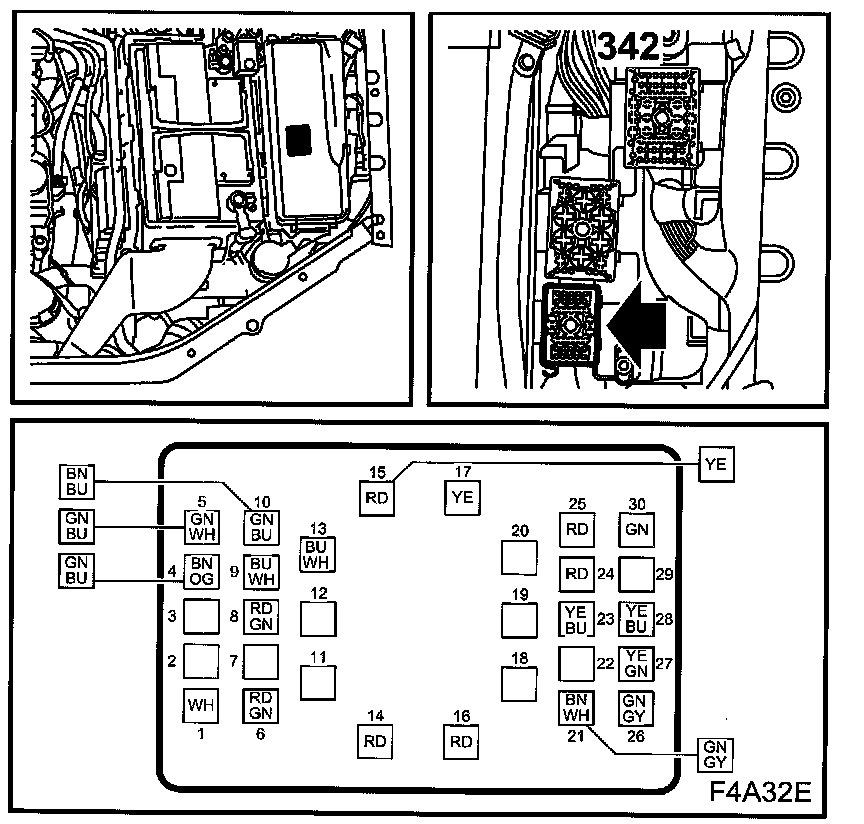

The front harness is connected via switch F
F (front harness)

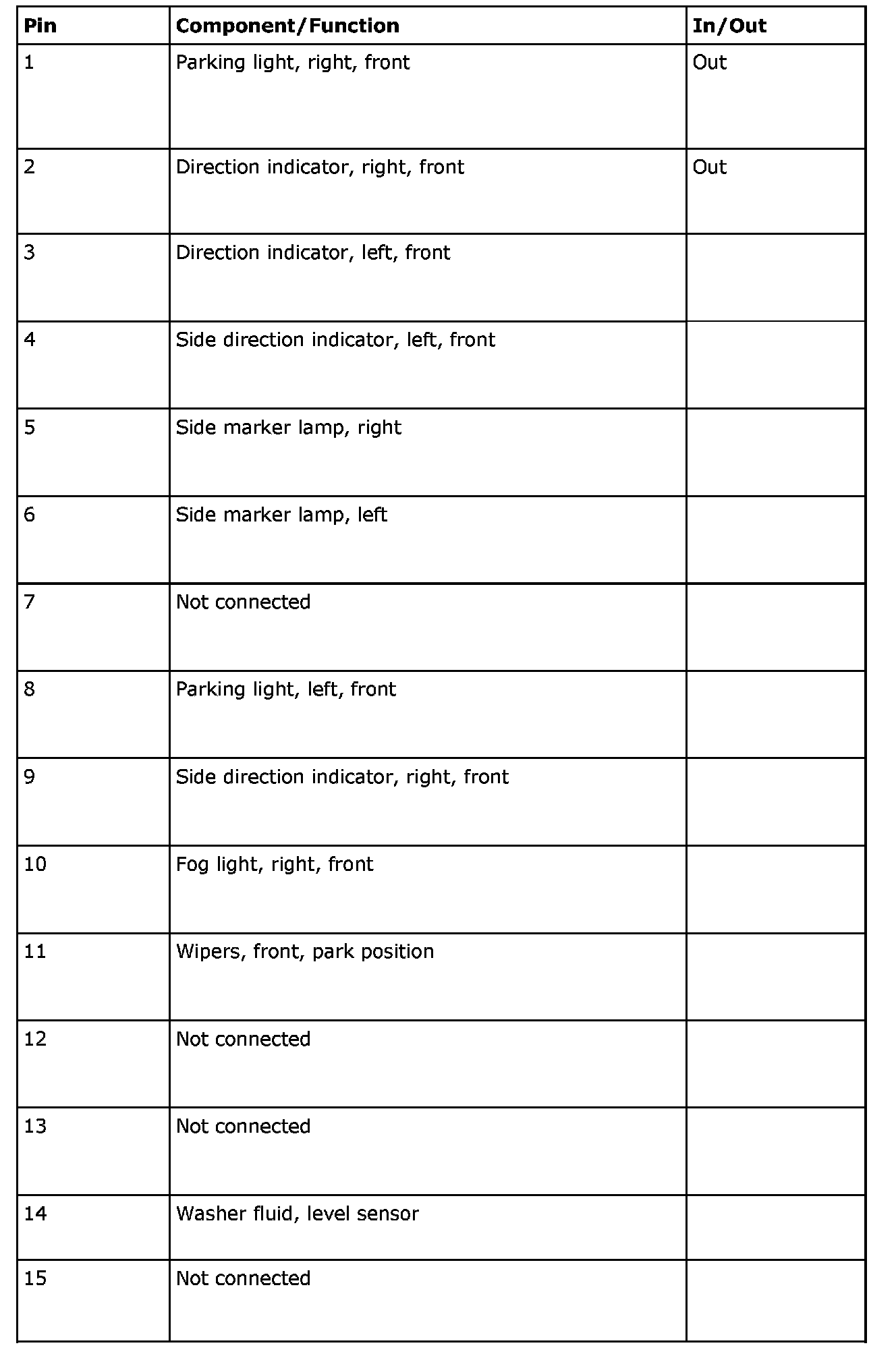

Pin No. 1-15:

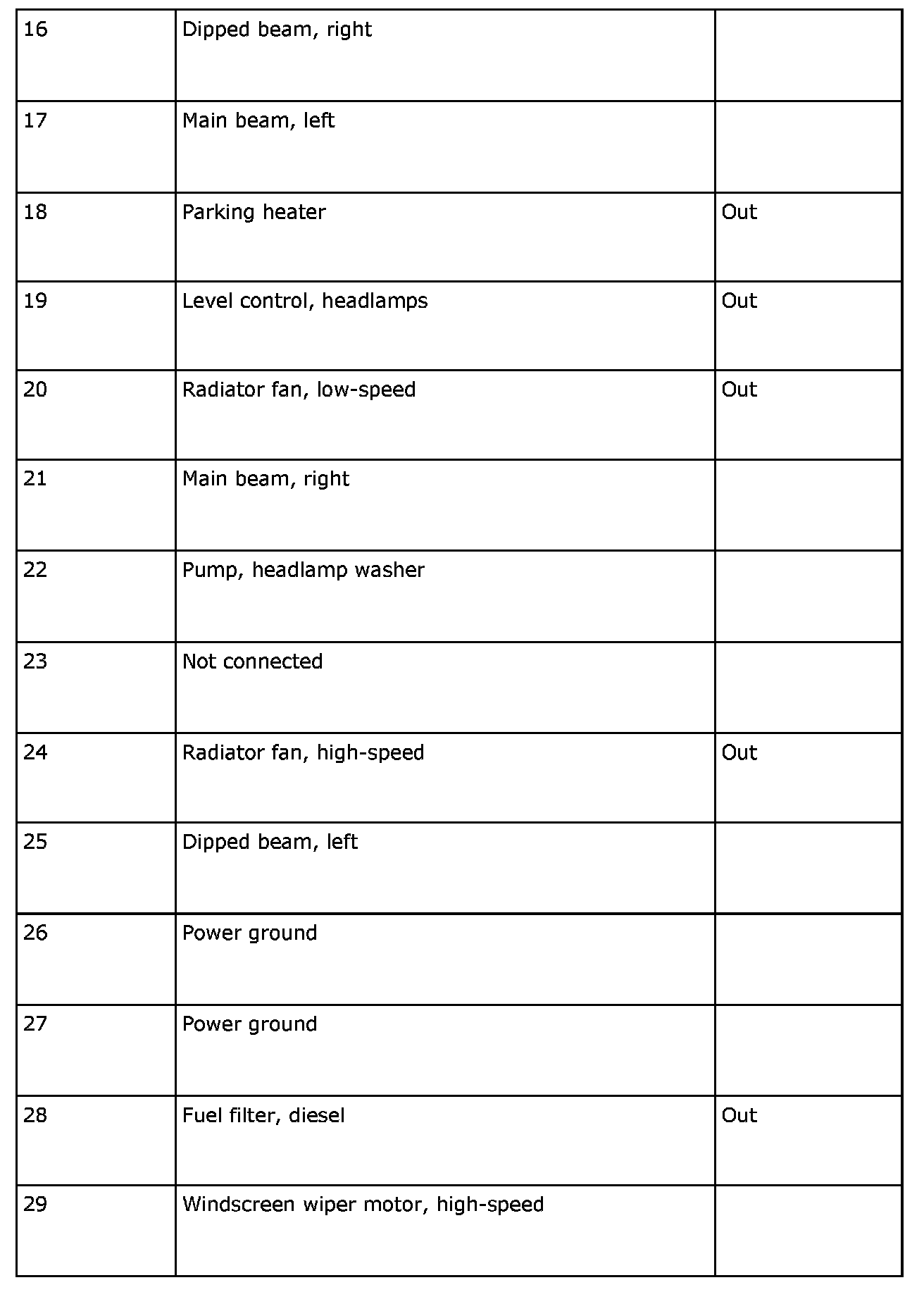

Pin No. 16-29:

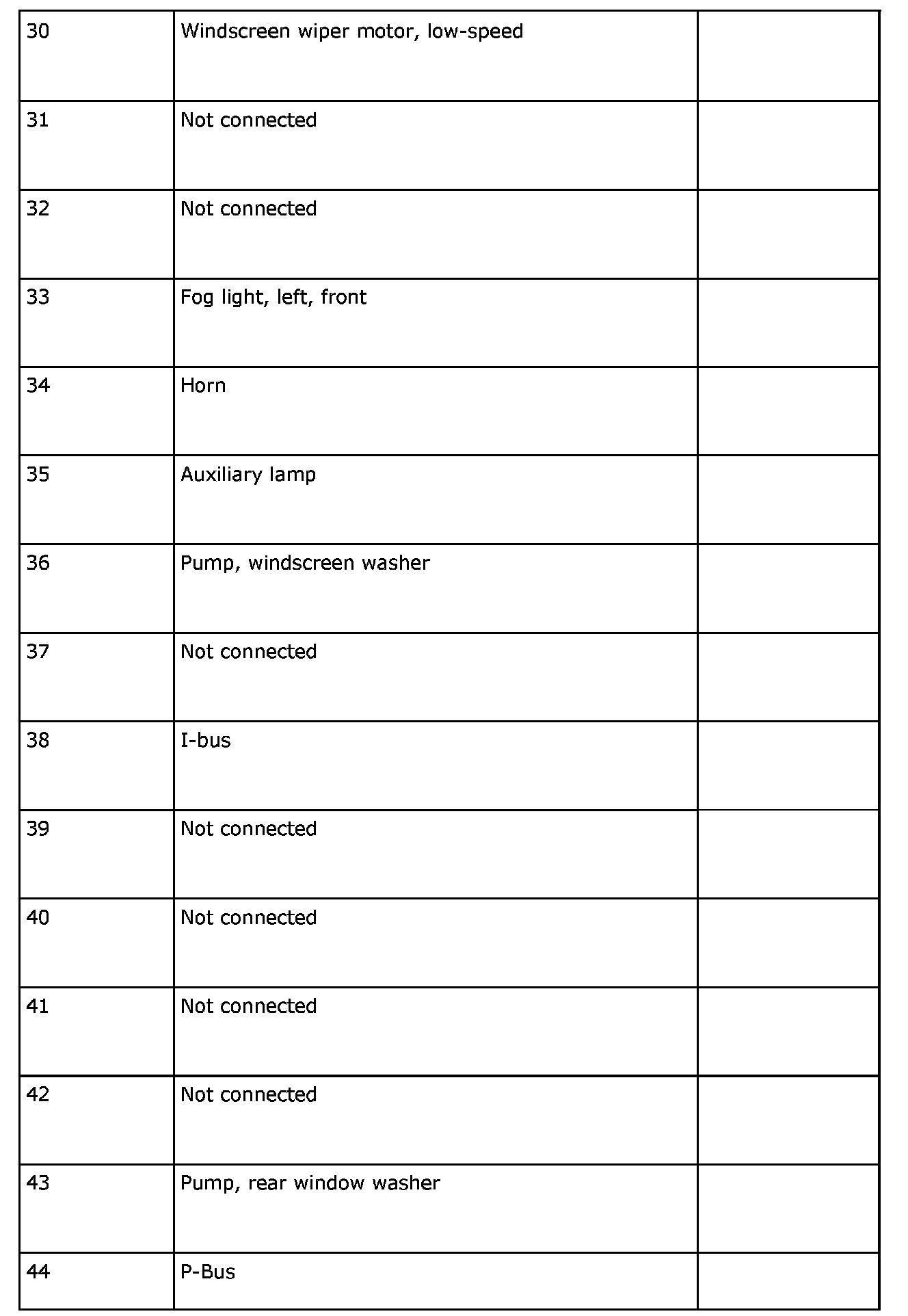

Pin No. 30-44:

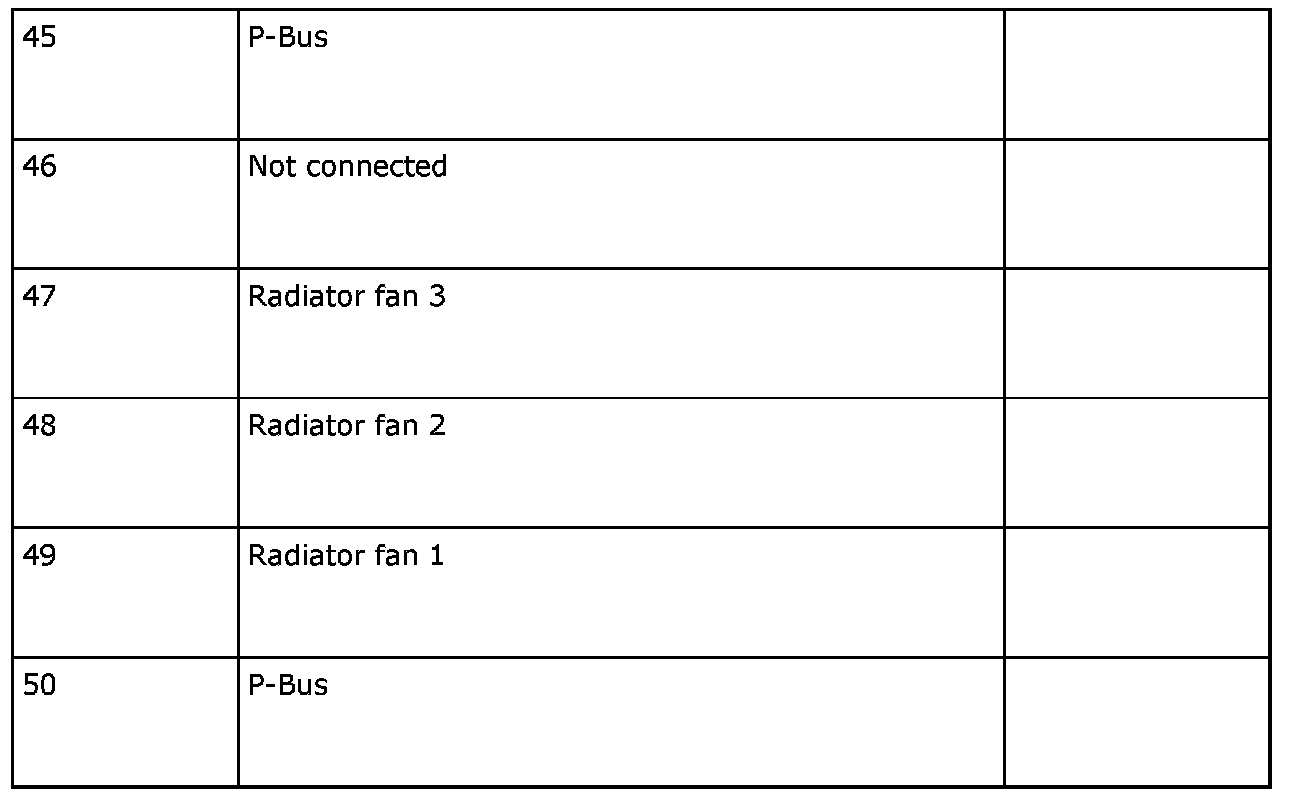

Pin No. 45-50:

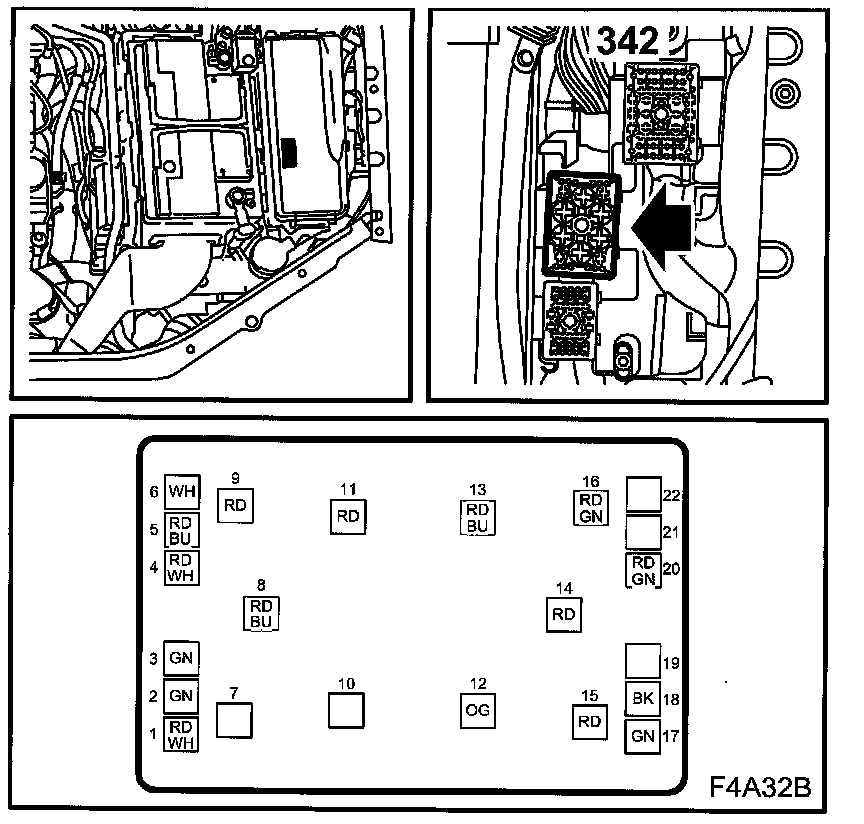

The main harness is connected via switch B
B (main wiring harness)

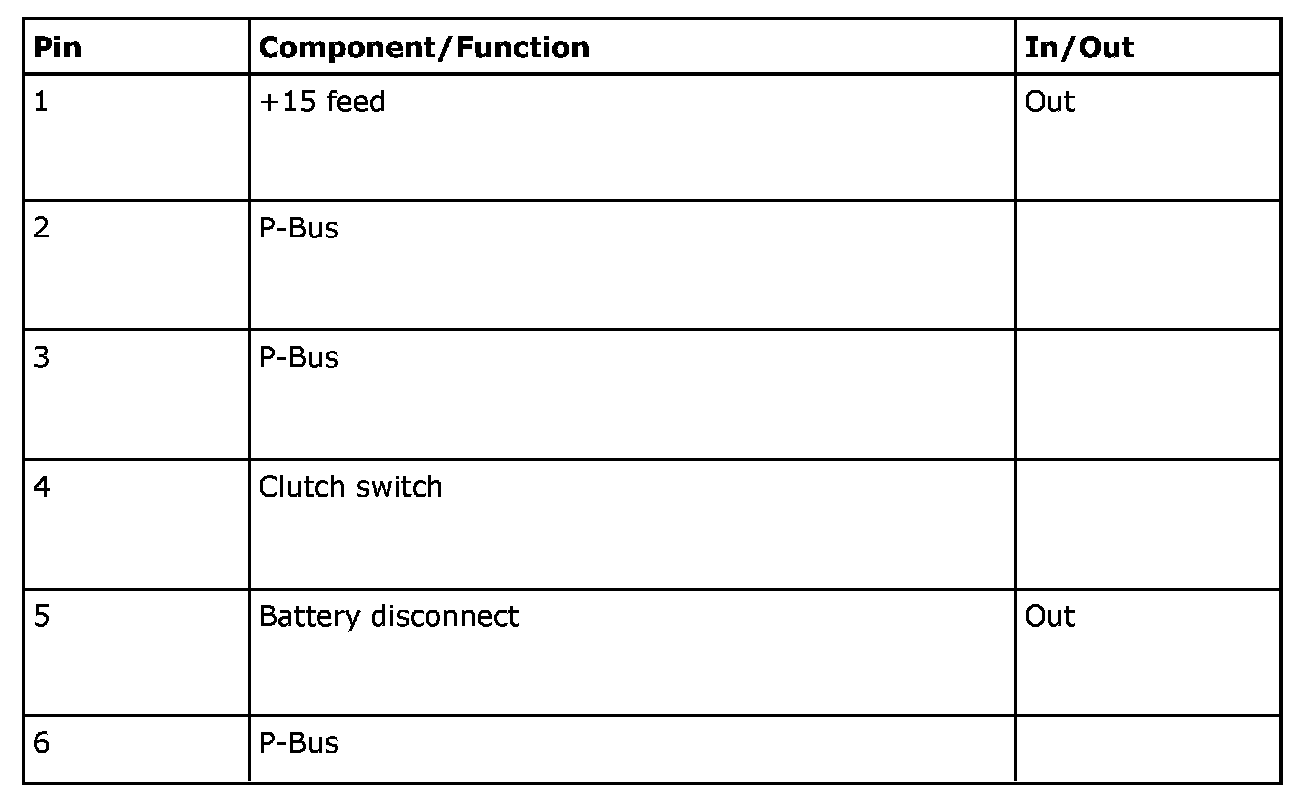

Pin No. 1-6:

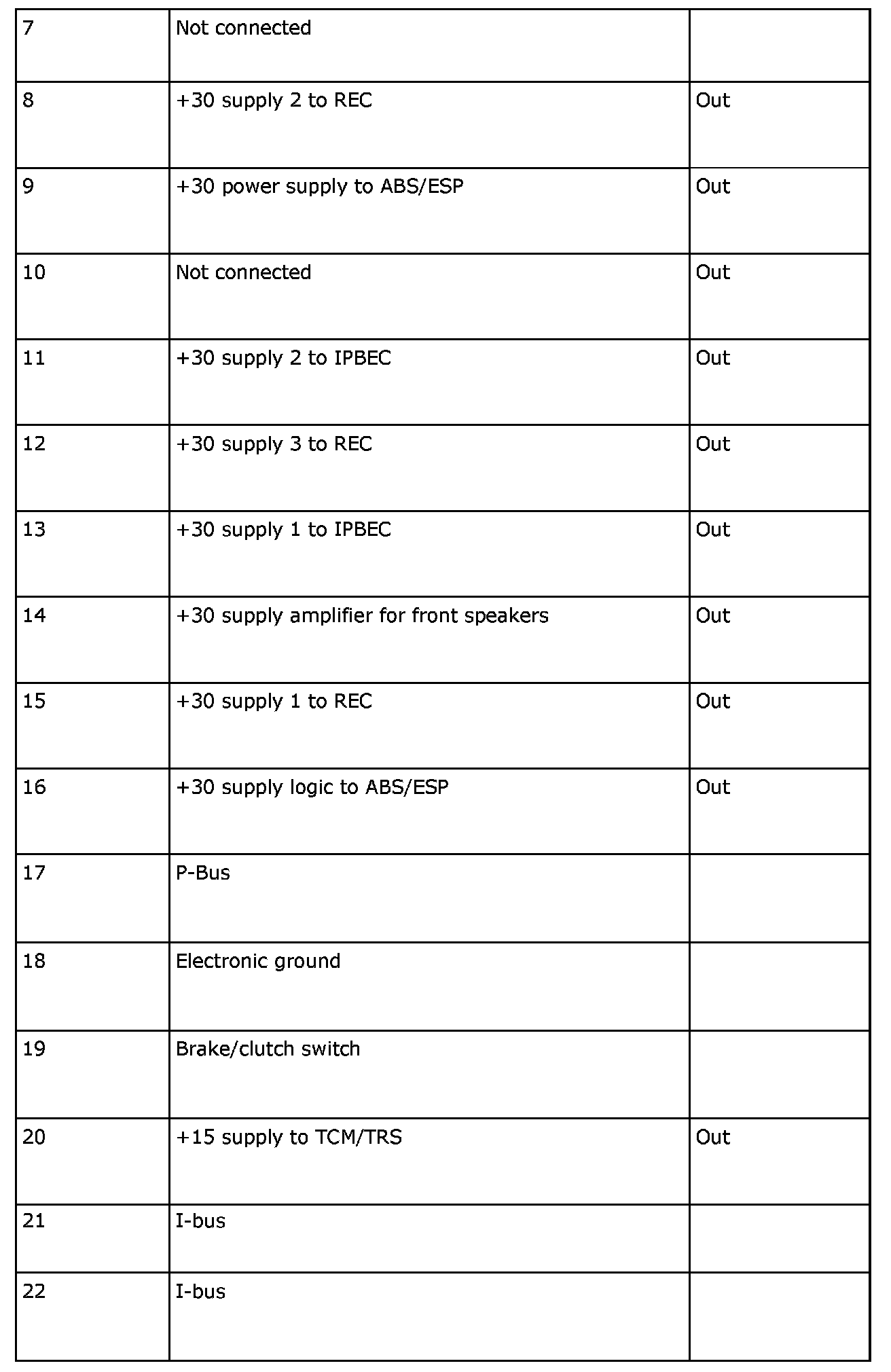

Pin No. 7-22:
Fuses

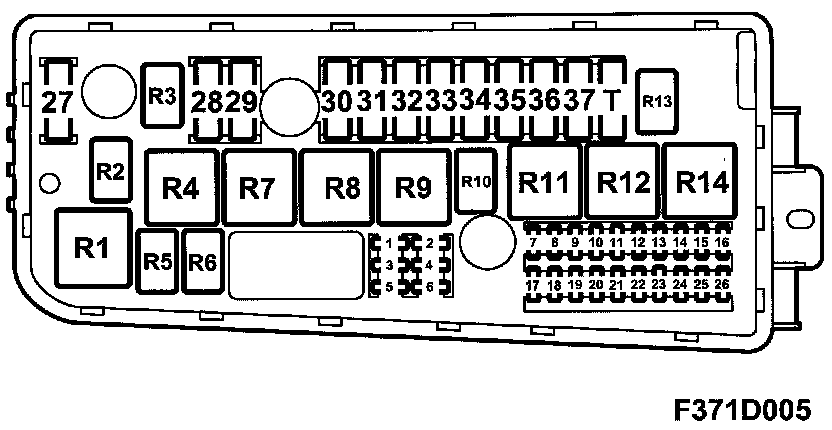

Panel Layout:
The electrical center can contain a greater number of fuses than those listed below. In such cases, these are not connected to a wiring harness.

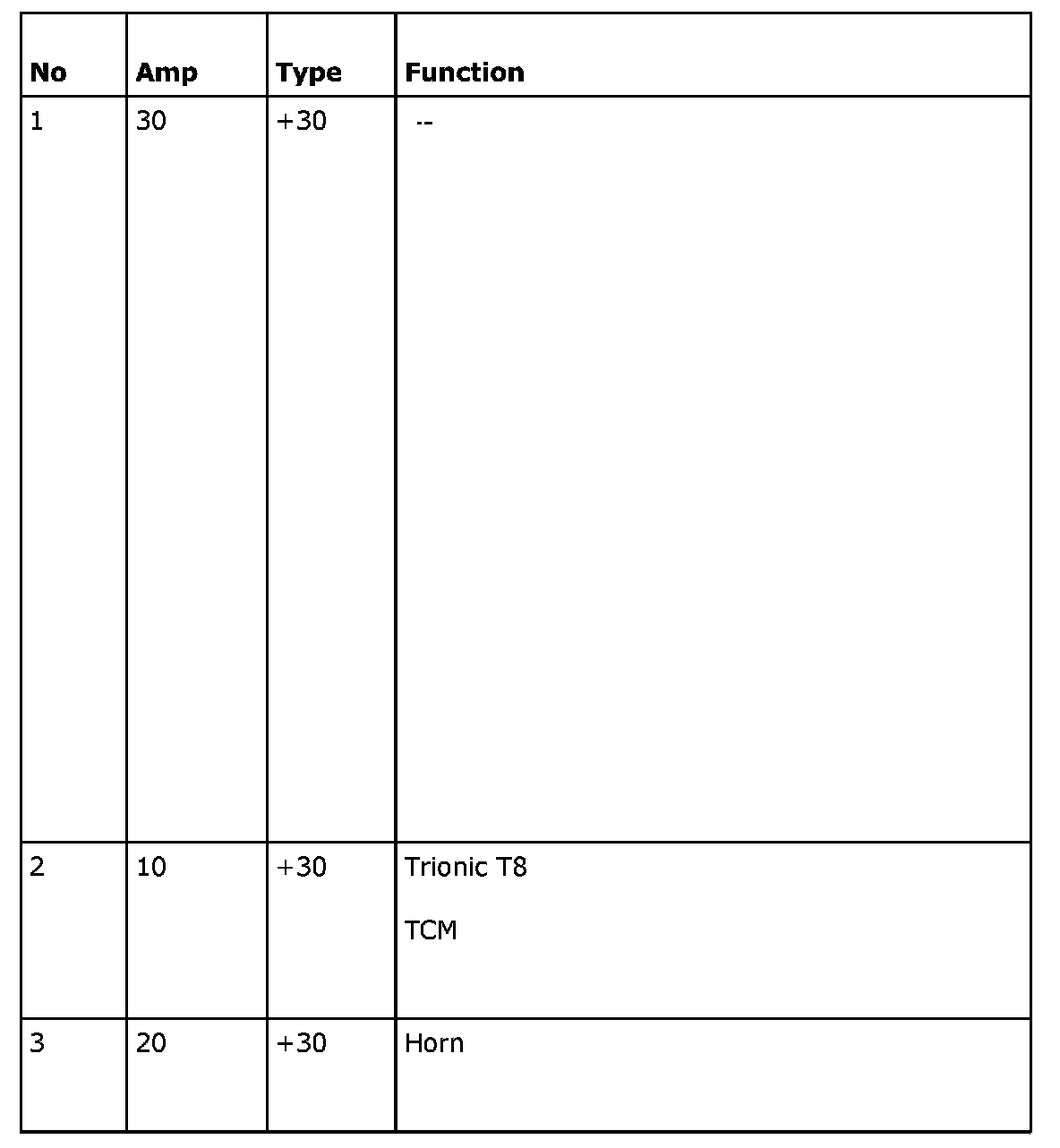

Fuses 1 - 3:

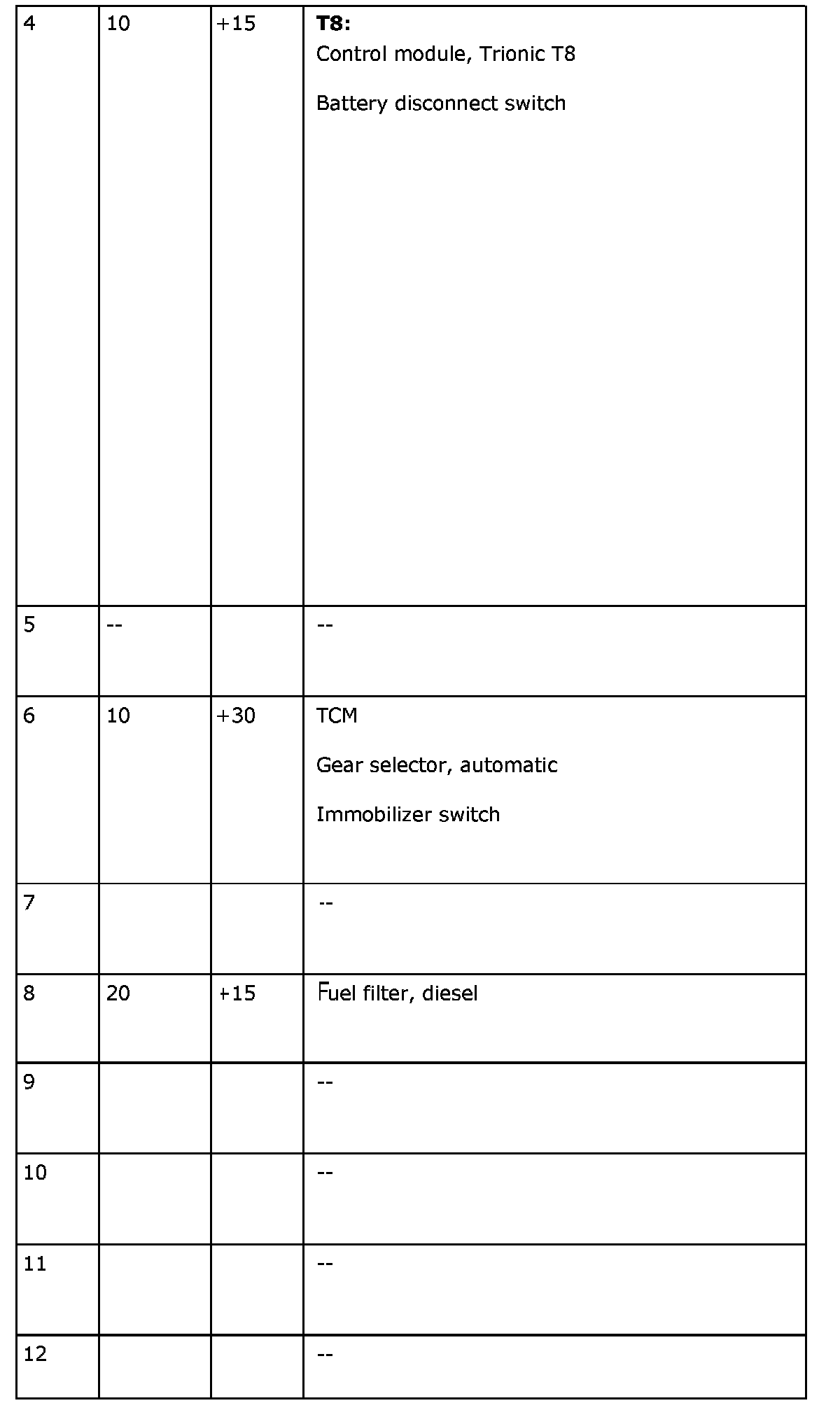

Fuses 4 - 12:

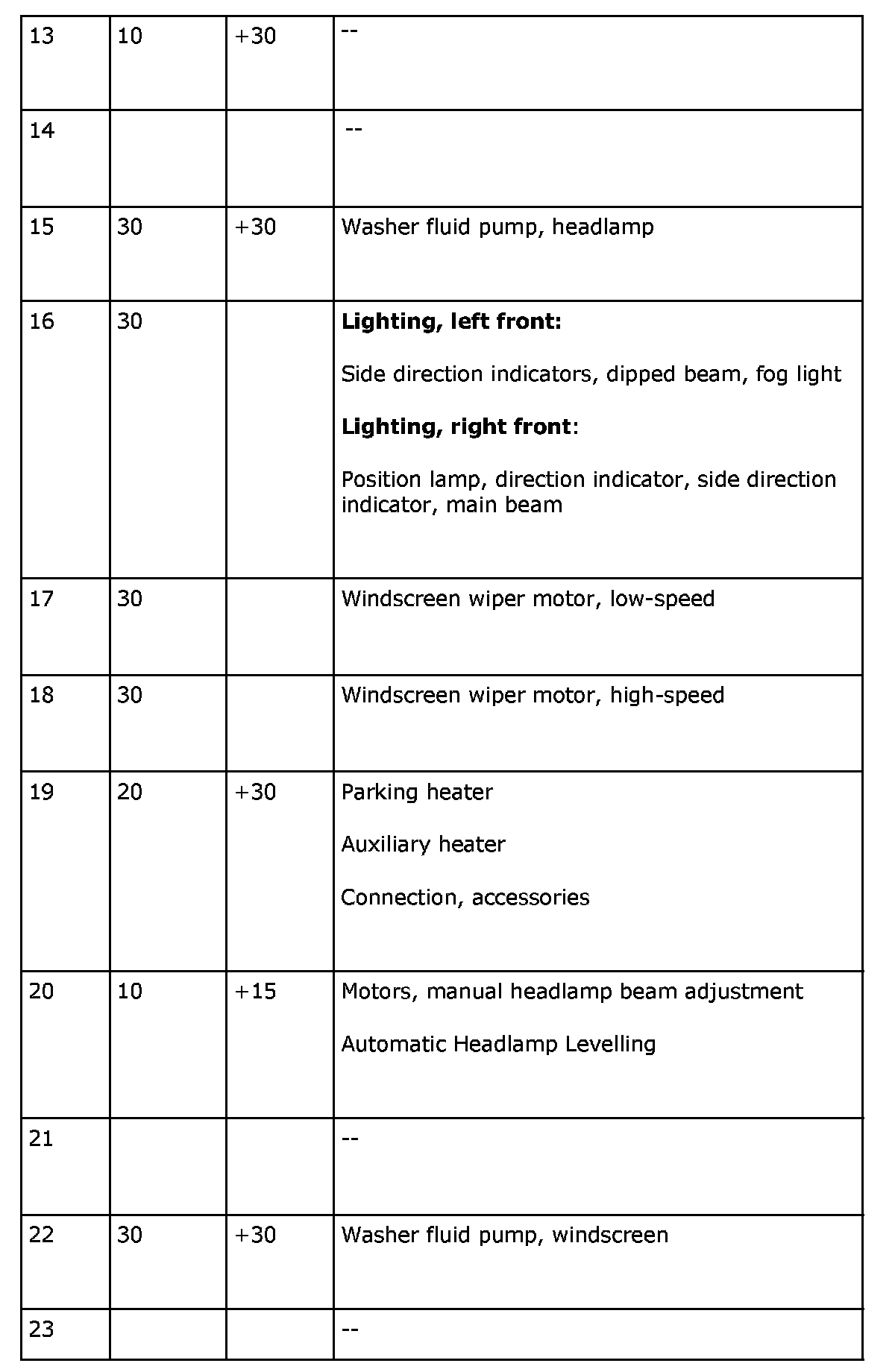

Fuses 13 - 23:

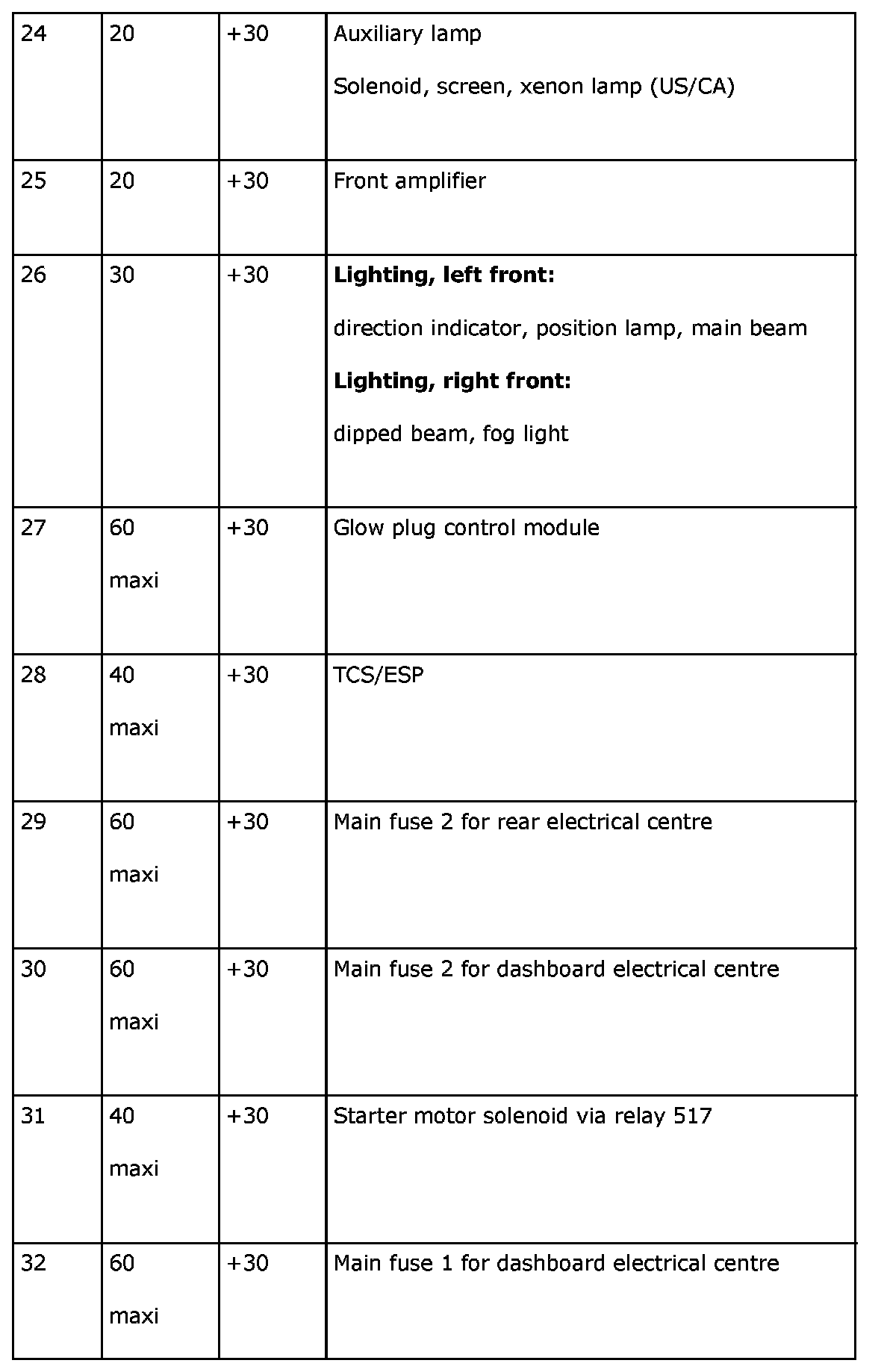

Fuses 24 - 32:

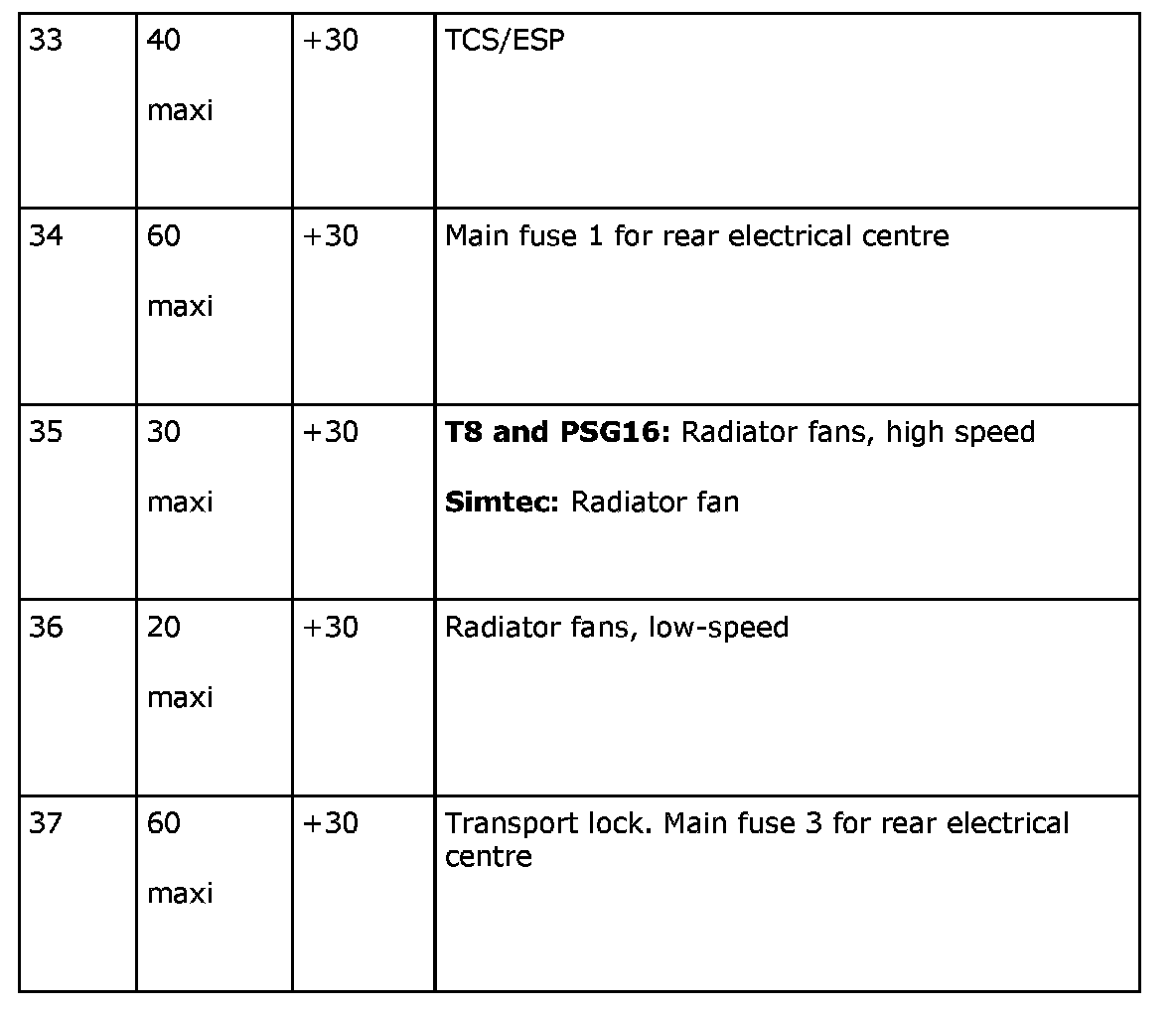

Fuses 33 - 37:
Relays
Panel Layout:
The electrical center can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.

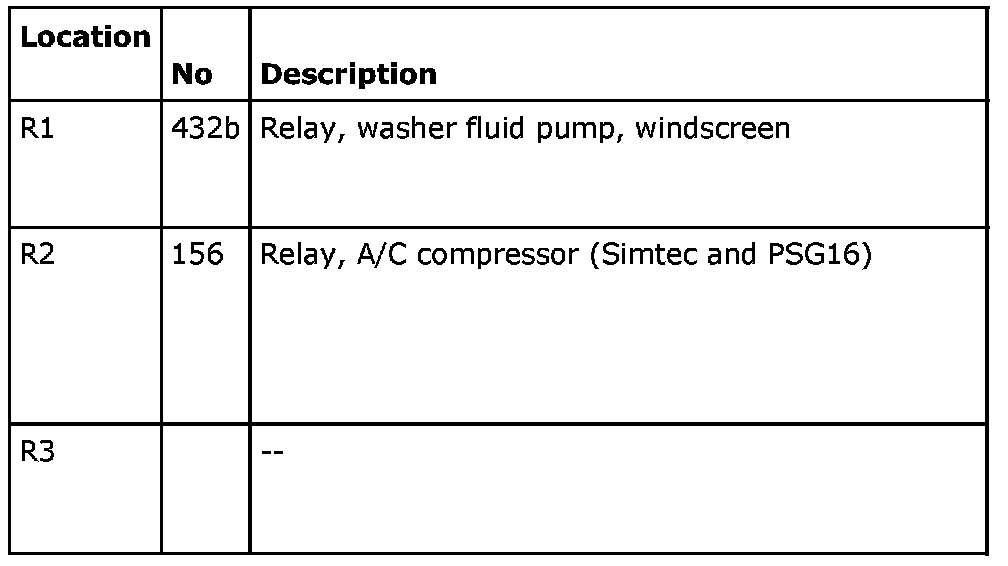

Relay Location R1-R3:

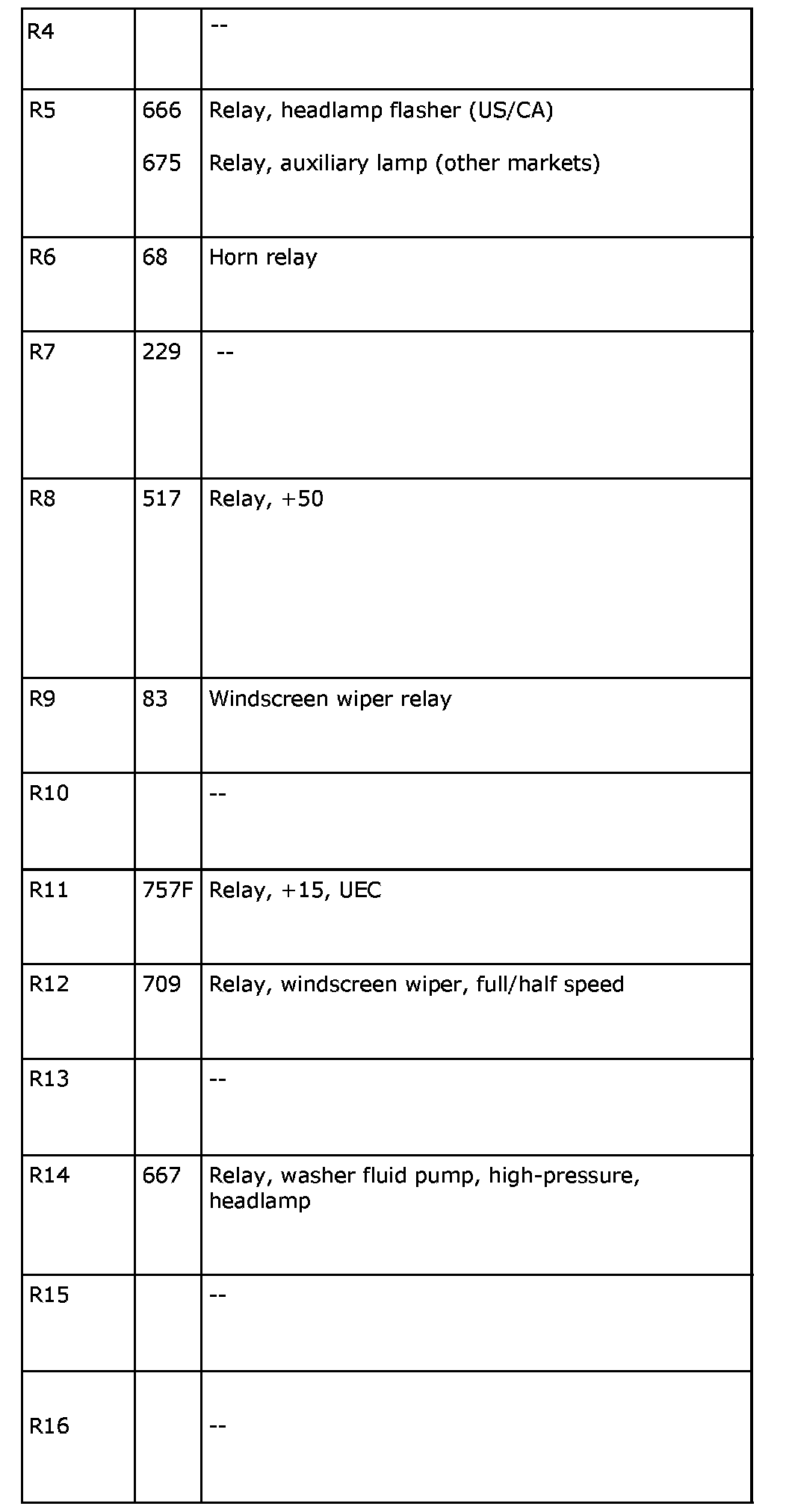

Relay Location R4-R16:
