Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Engine Bay Fuse Box 342 >> Fuse 31, Maxi Fuse

Fuse 31, Maxi Fuse

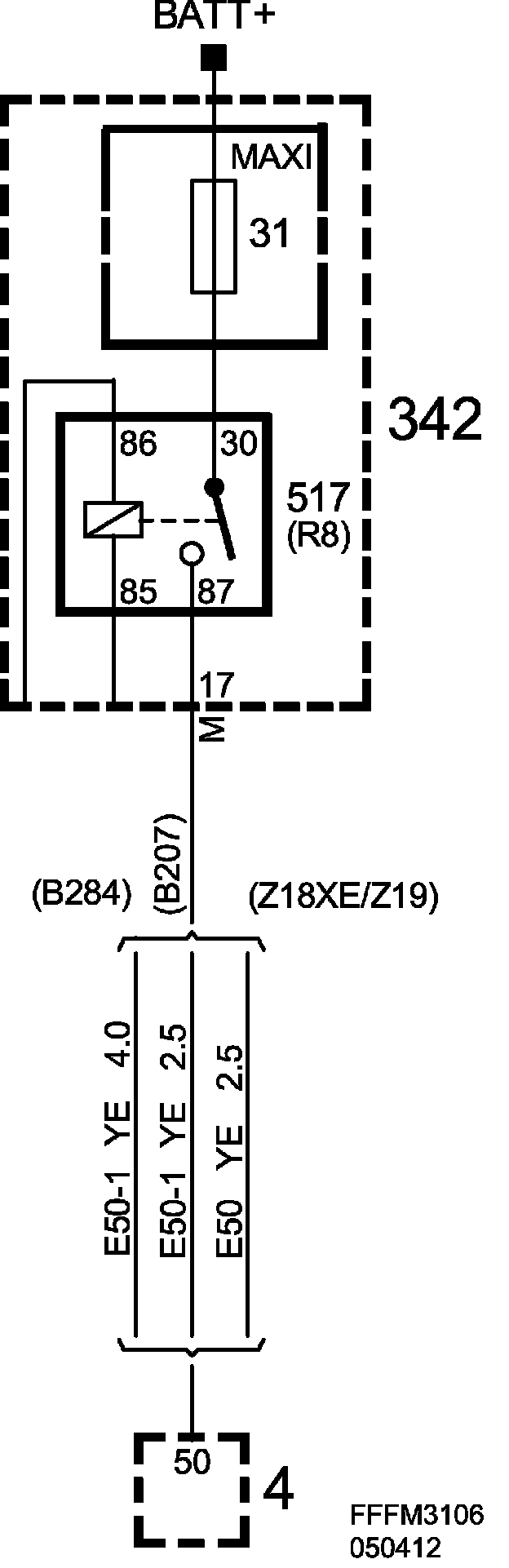

Fuse 31, Engine Bay Main Fuse Box 342, Maxi Fuse:

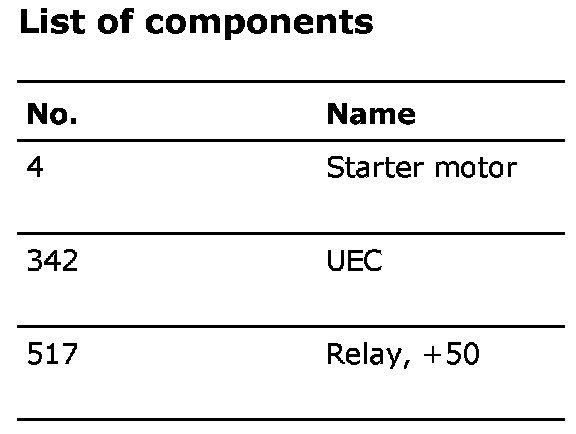

List Of Components:
