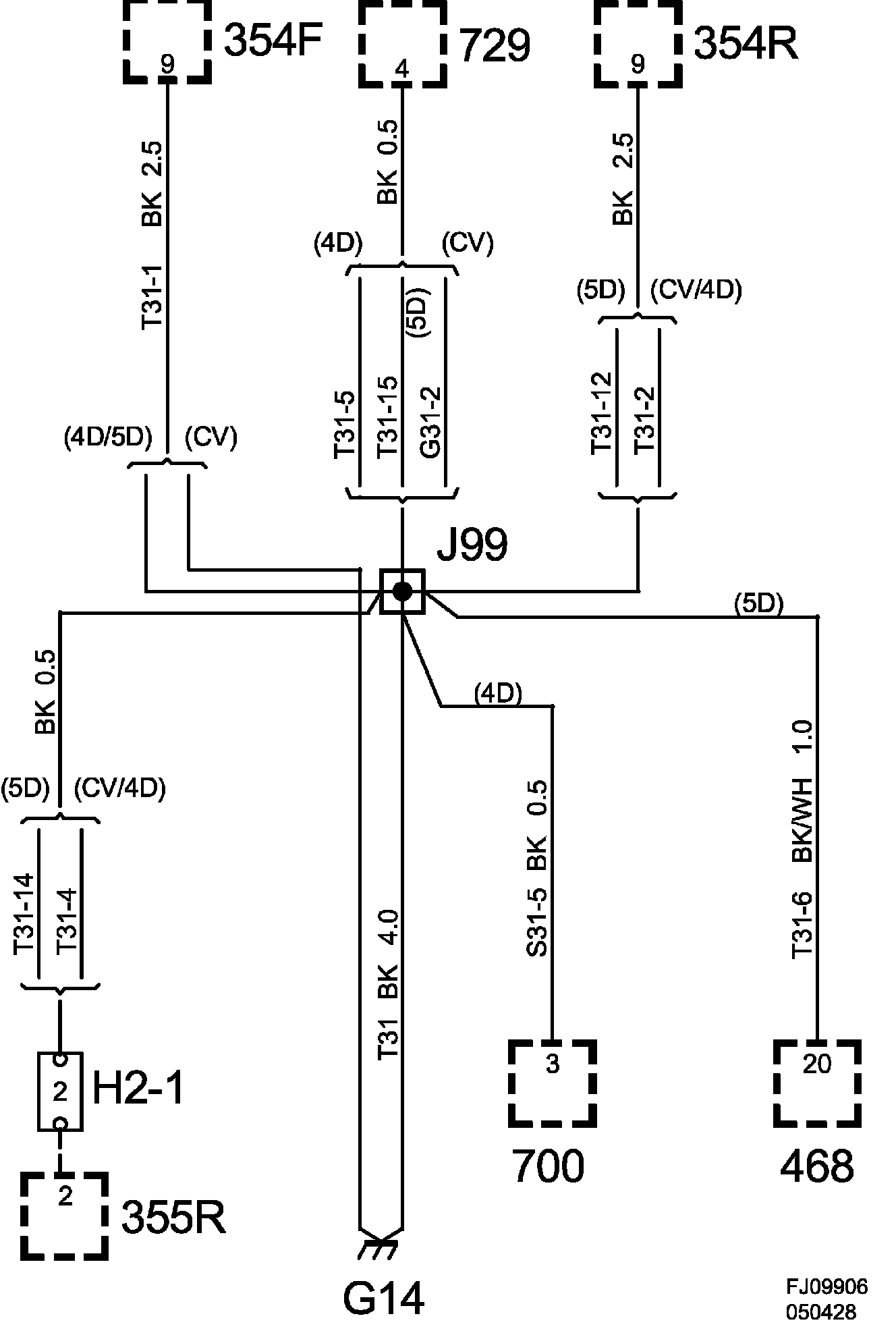

Crimp Connection J99, Main Wiring Harness

Location:

4D: Approx. 225 mm from branching of left seat towards branching of seat-belt tensioner, left B-pillar

5D: Approx. 170 mm from branching of left seat towards grounding point G33P/S

CV: Approx. 520 mm from branching point to grounding point G33P/S towards the LH rear door
