Crimp Connection J93, Main Harness

Location: Approx. 100 mm from branching point TCM control module (FA 57) towards the control module.

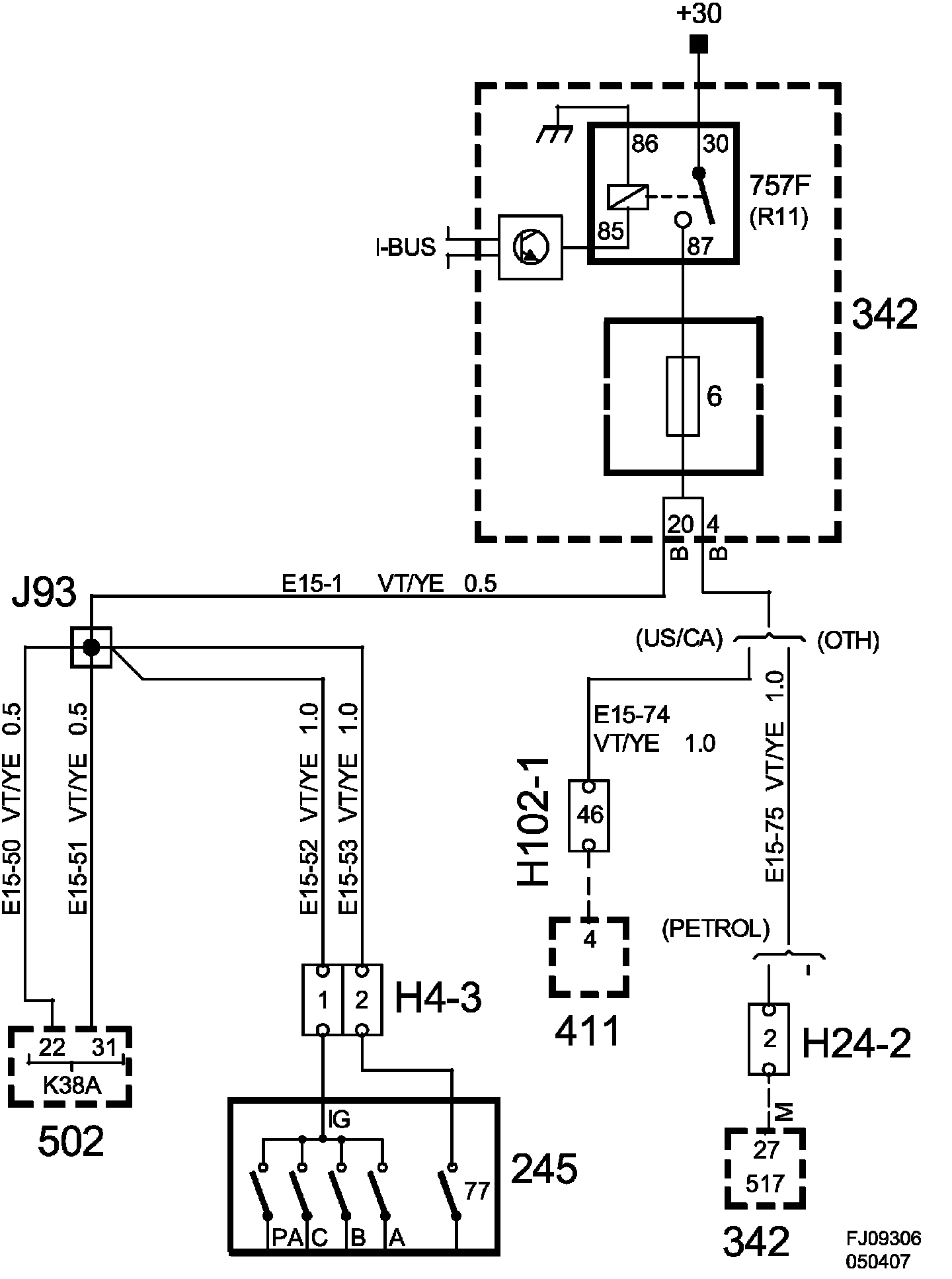

Crimp Connection J93, Main Harness:

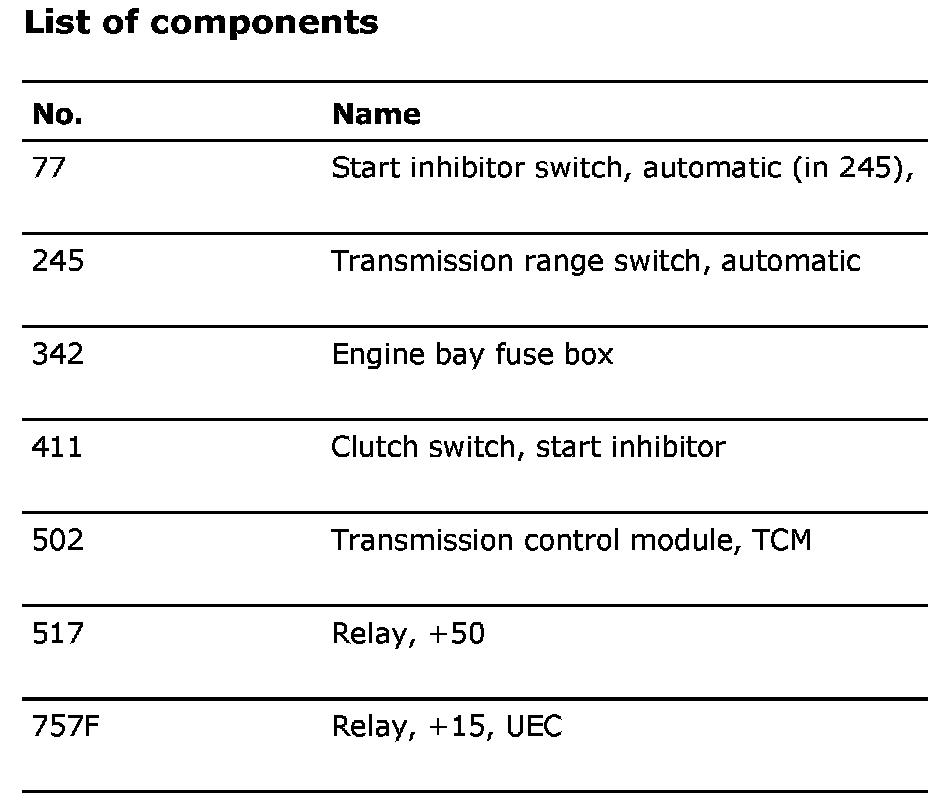

List Of Components:
