Crimp Connection J193, Instrument Harness



Location:

LHD: Approx. 20 mm from branching of column integration module towards grounding point G41

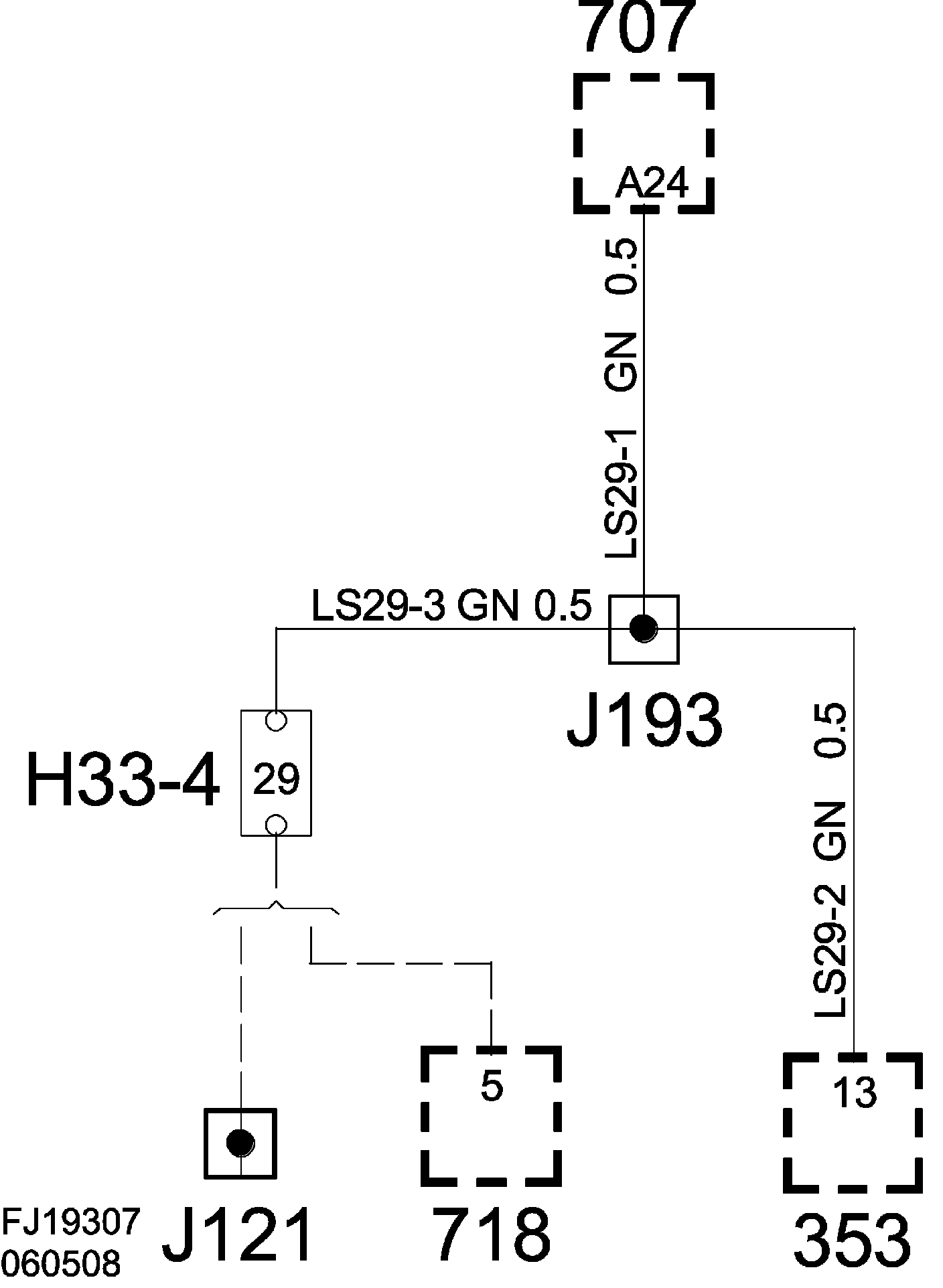

Crimp Connection J193, Instrument Harness:

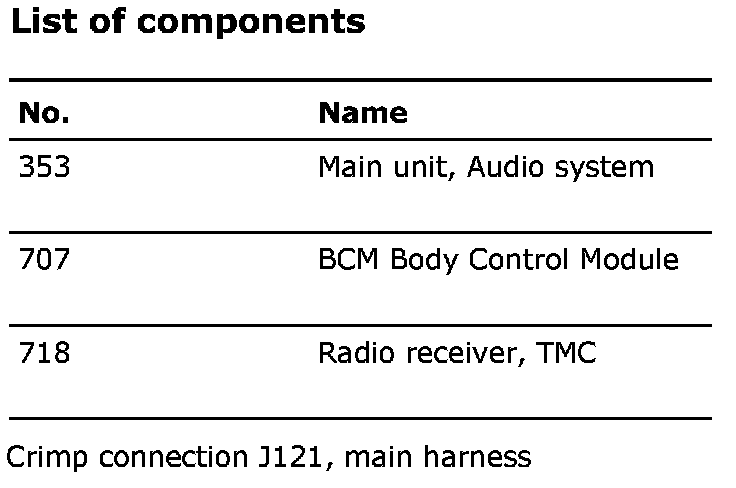

List Of Components:
