Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Crimps (Splices) >> Crimp Connection J122, Main Harness

Crimp Connection J122, Main Harness



Location:

4D: Approx. 30 mm from connector K16B of amplifier (354F)

5D/CV: -

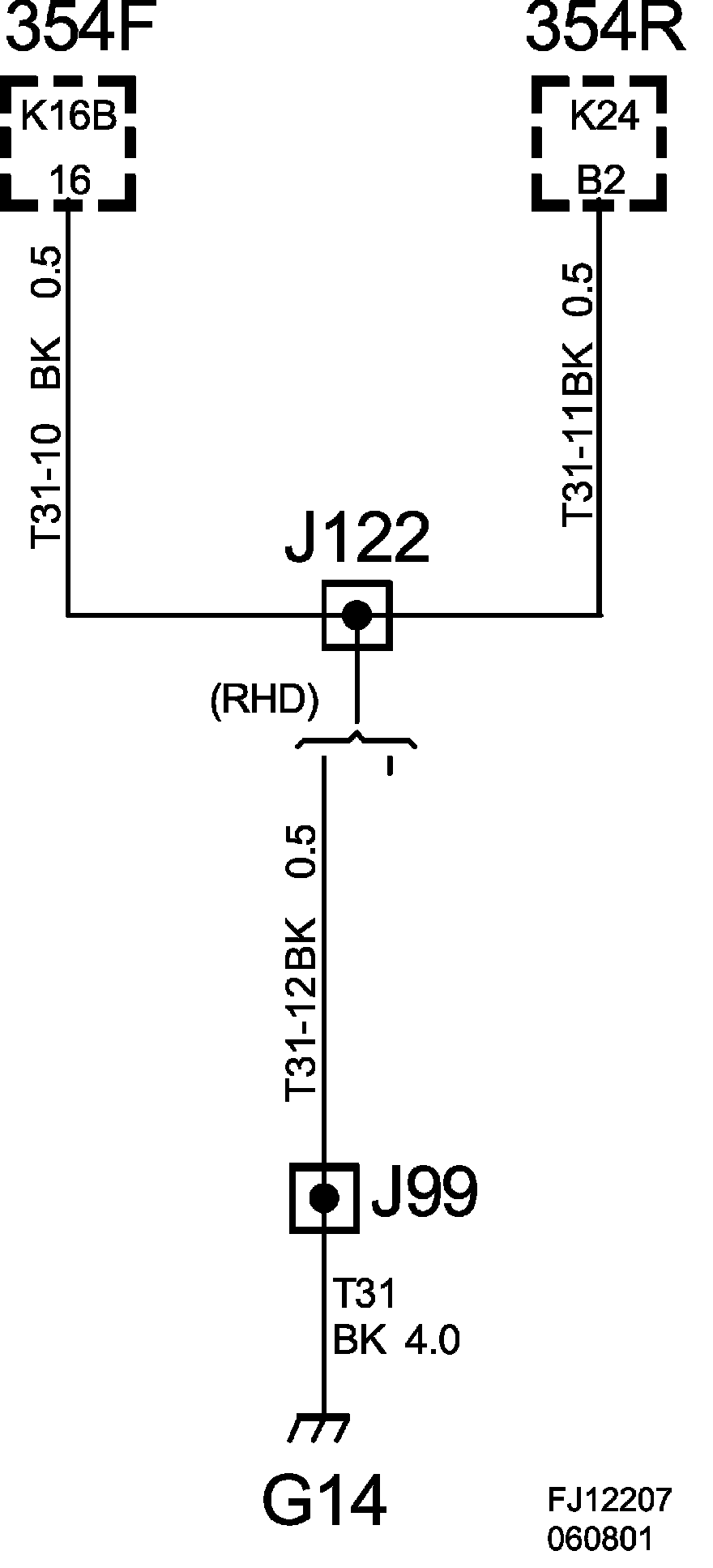

Crimp Connection J122, Main Harness:

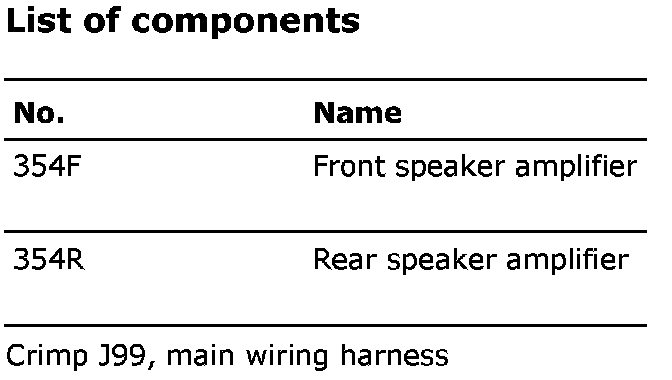

List Of Components:
