Crimp Connection J121, Main Harness



Location:

4D: Approx. 460 mm from branching of airbag control module towards right seat

5D: Approx. 110 mm from branching of grounding point G34P/S towards airbag control module

CV: Approx. 330 mm from branching of fuel pump module towards control module for rear right window lift

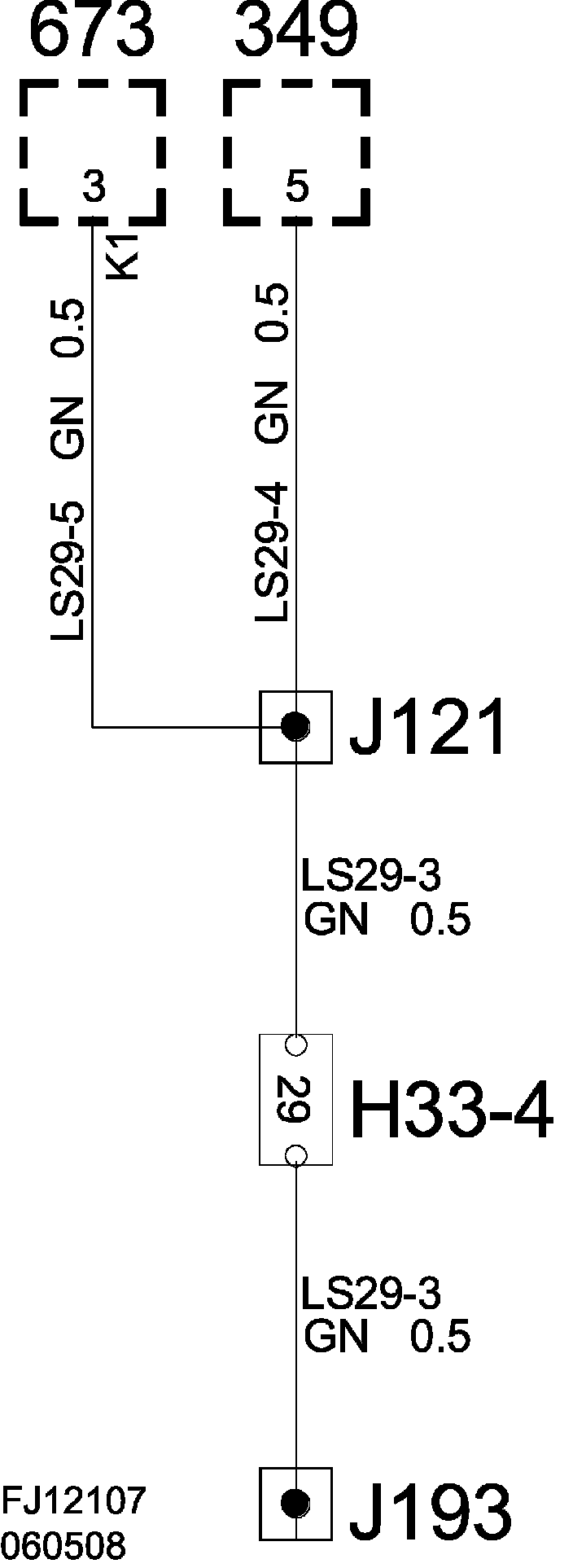

Crimp Connection J121, Main Harness:




List Of Components:
