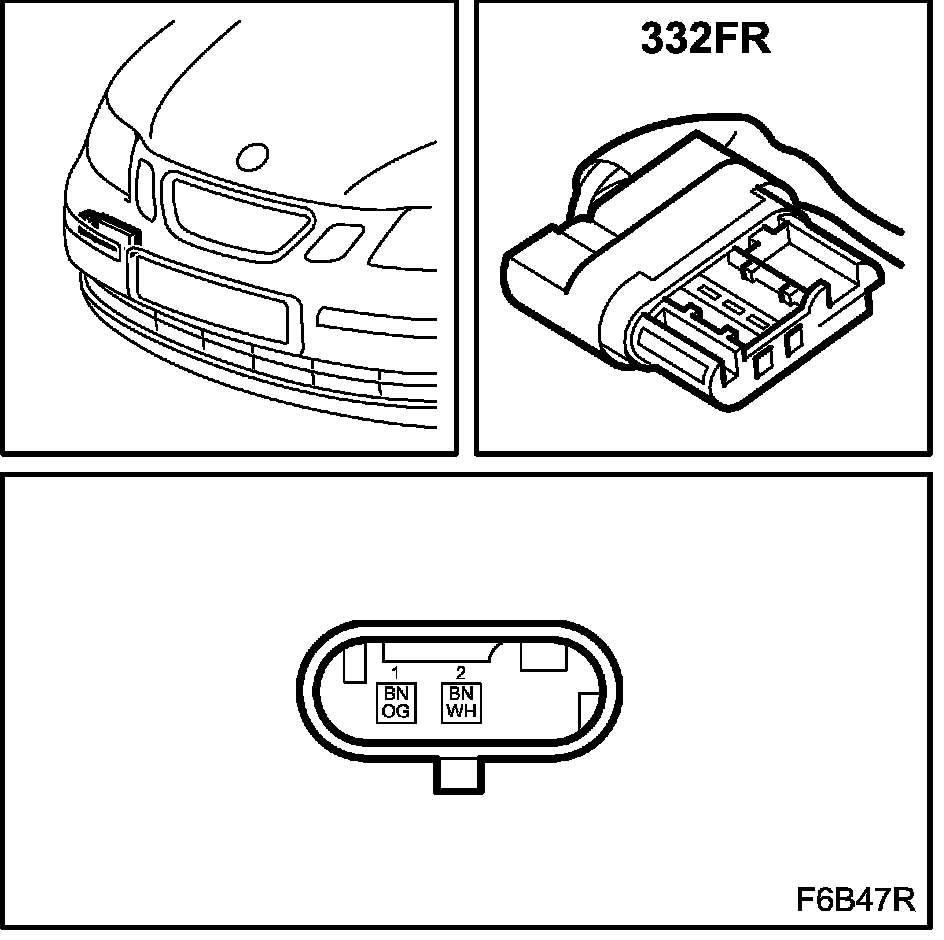

Impact Sensor, Front Right (332FR)
Impact Sensor, Front Right (332FR)
Impact Sensor, Front, Right (332FR)
Location: On the bumper member under the RH horn.
