Crimp Connection J98, Main Wiring Harness



Location:

4D/5D: Approx. 160 mm from branching point to grounding point G33P/S towards LH rear door

CV: Approx. 120 mm from branching point to grounding point G33P/S towards LH rear door

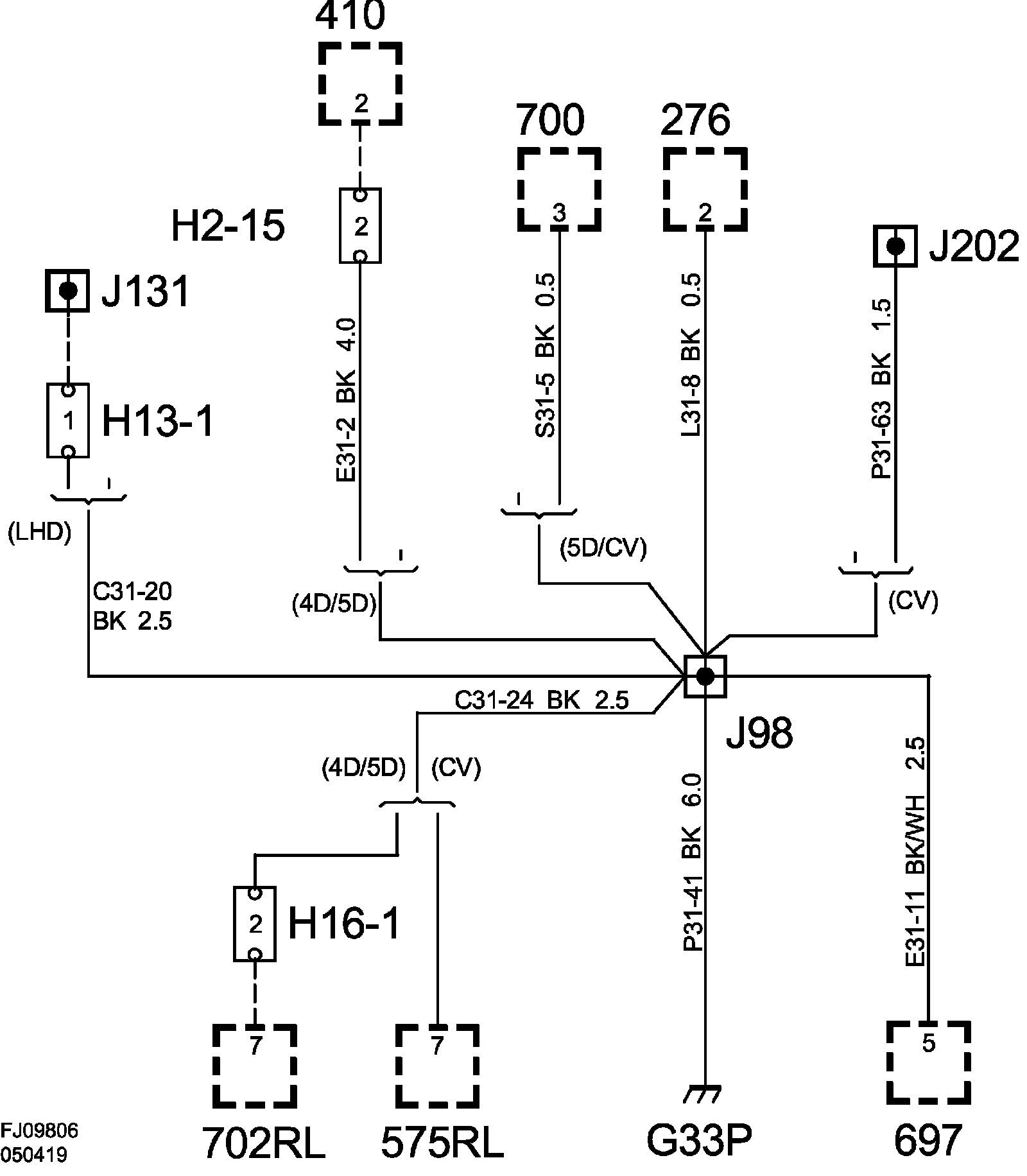

Crimp Connection J98, Main Wiring Harness:

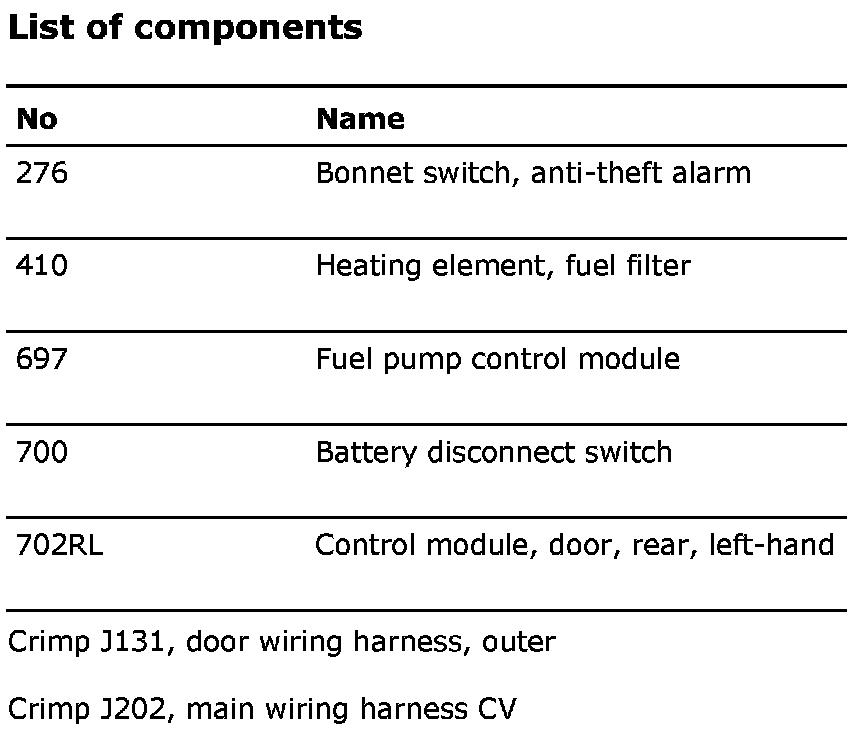

List Of Components:
