Crimp Connection J90, Instrument Harness



Location:

LHD: Approx. 80 mm from branching of grounding point G41 towards grounding point G43

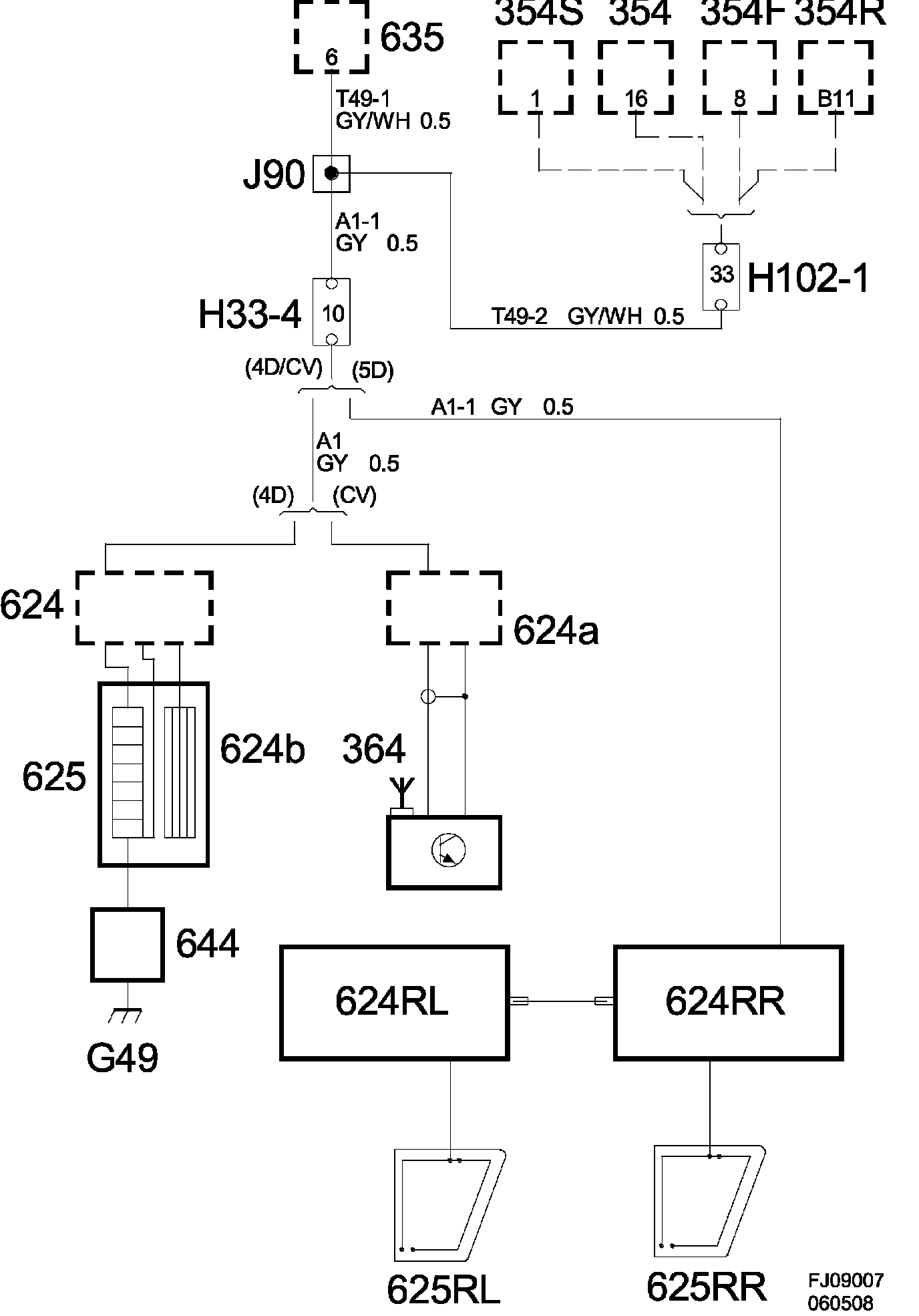

Crimp Connection J90, Instrument Harness:

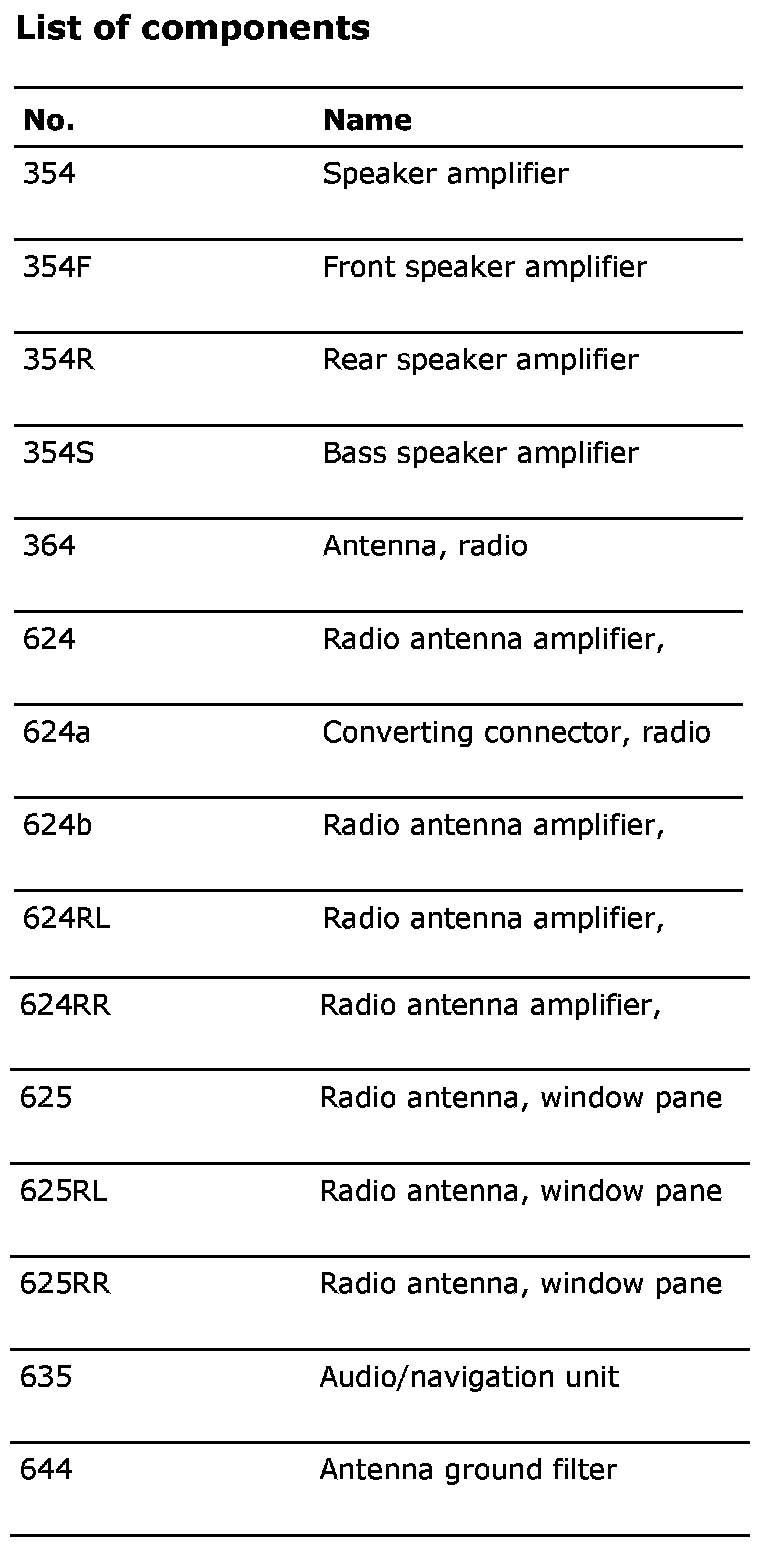

List Of Components:
