Crimp Connection J85, Instrument Harness



Location:

LHD: Approx. 30 from branching of gear selector module towards the cigarette lighter

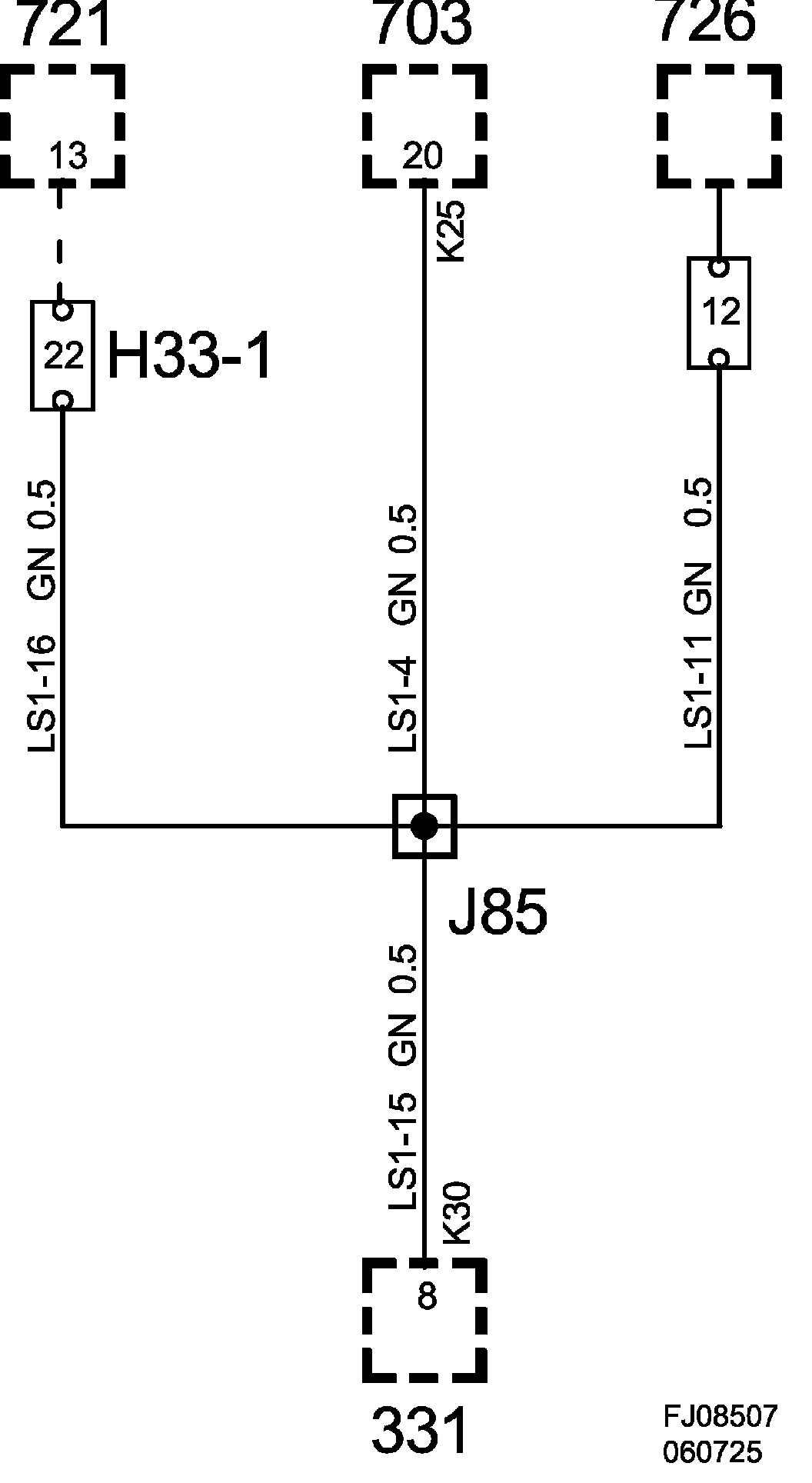

Crimp Connection J85, Instrument Harness:

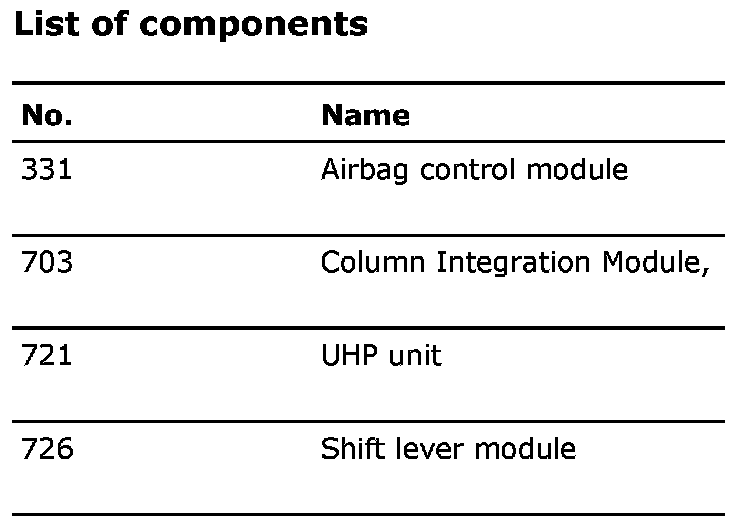

List Of Components:
