Crimp Connection J78, Dashboard Harness



Location:

LHD: Approximately 210 mm from branching of the cigarette lighter towards the airbag control module

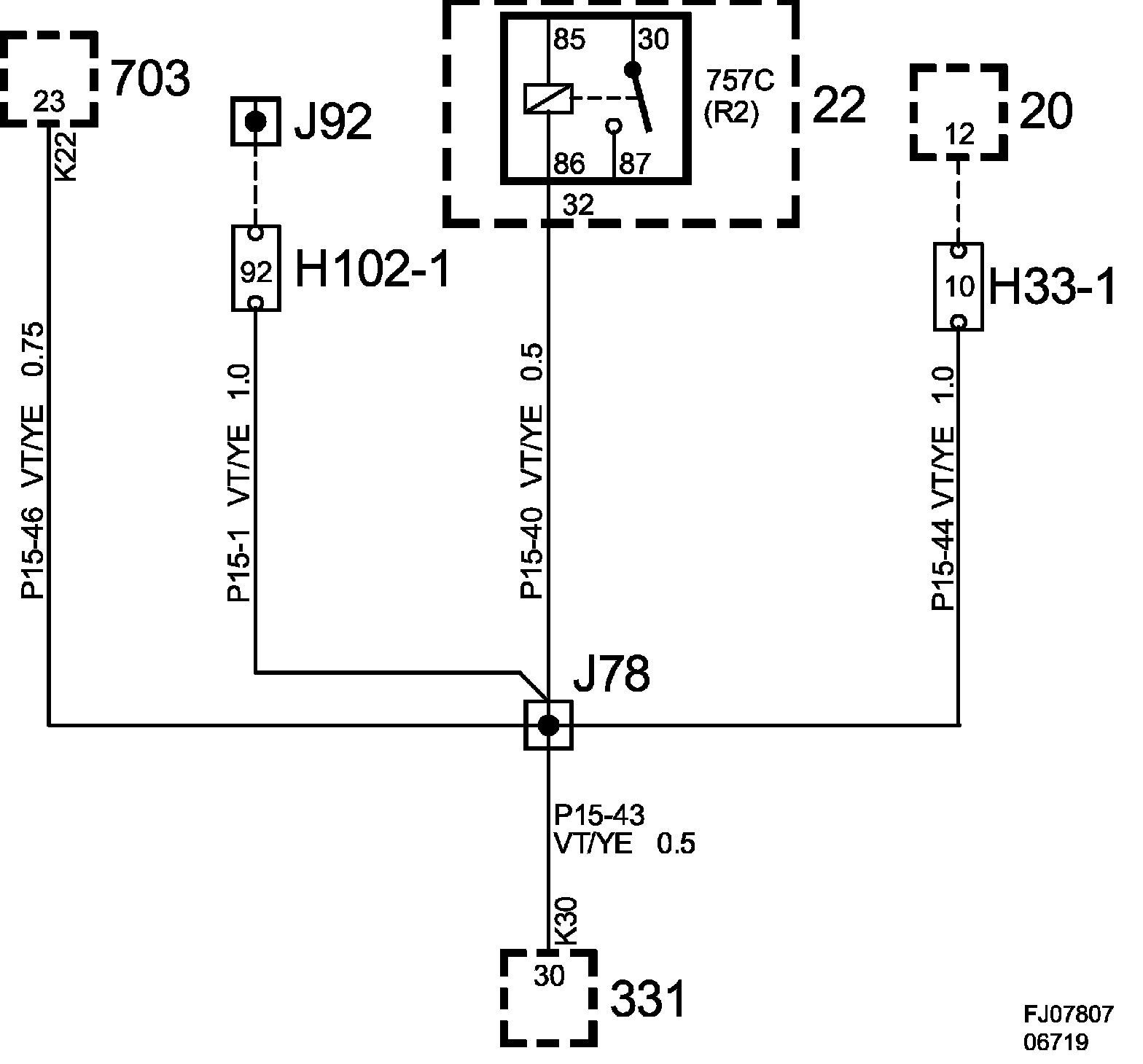

Crimp Connection J78, Dashboard Harness:

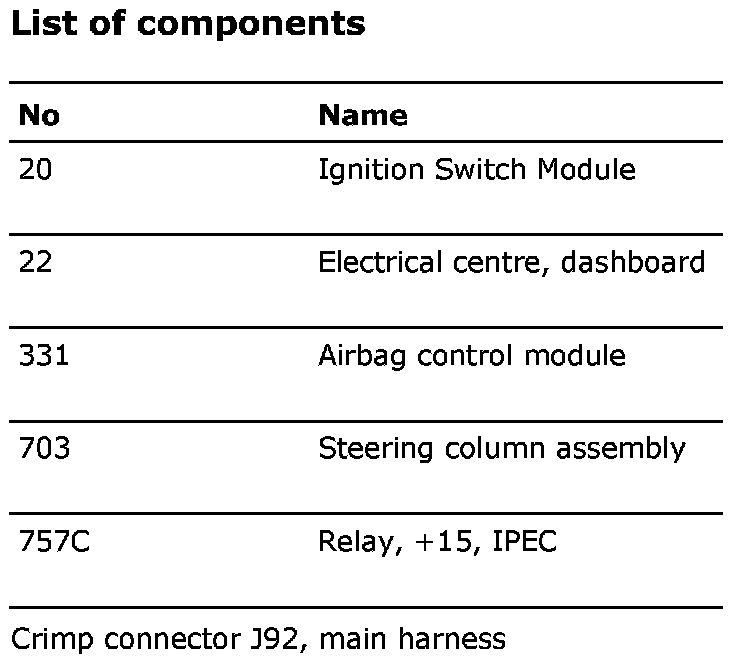

List Of Components:
