Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Crimps (Splices) >> Crimp Connection J74, Instrument Harness

Crimp Connection J74, Instrument Harness



Location:

LHD: Approx. 250 mm from branching of light switch unit towards the column integration module

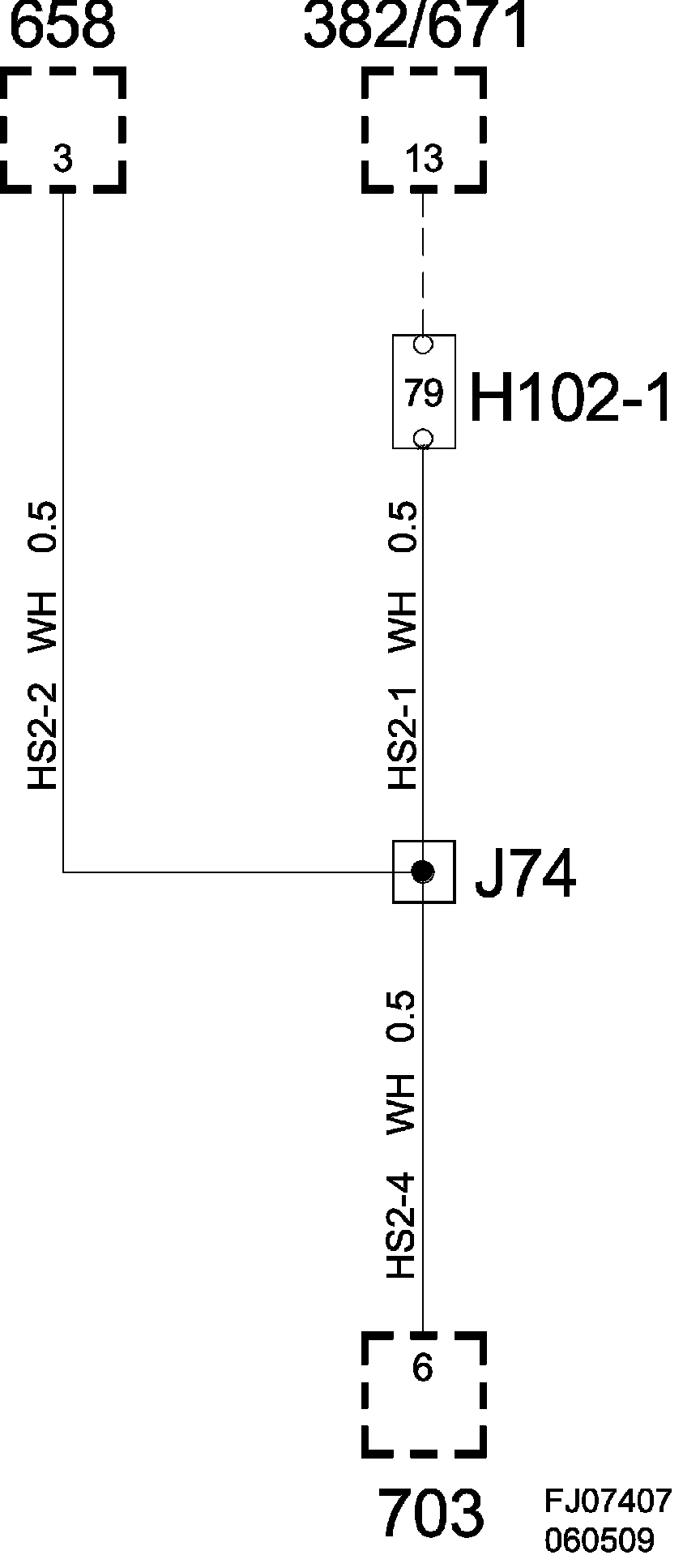

Crimp Connection J74, Instrument Harness:

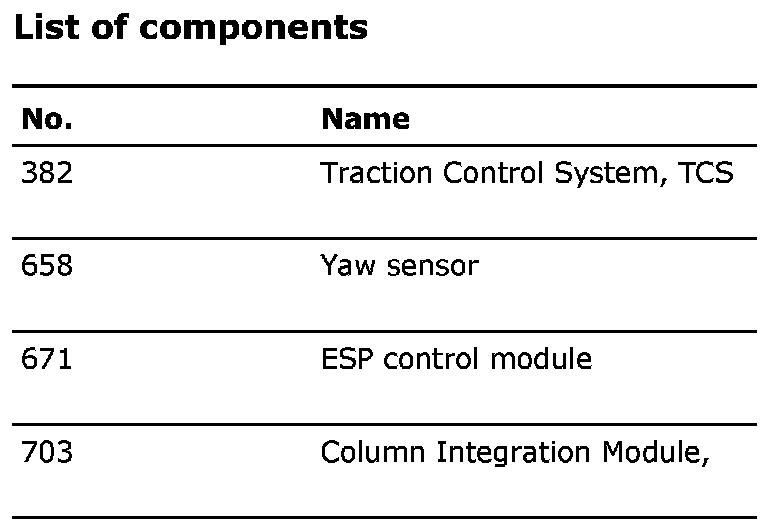

List Of Components:
