Crimp Connection J171, Parking Heater Wiring Harness



Location: Approx. 30 mm from branching point parking heater towards grounding point G30A

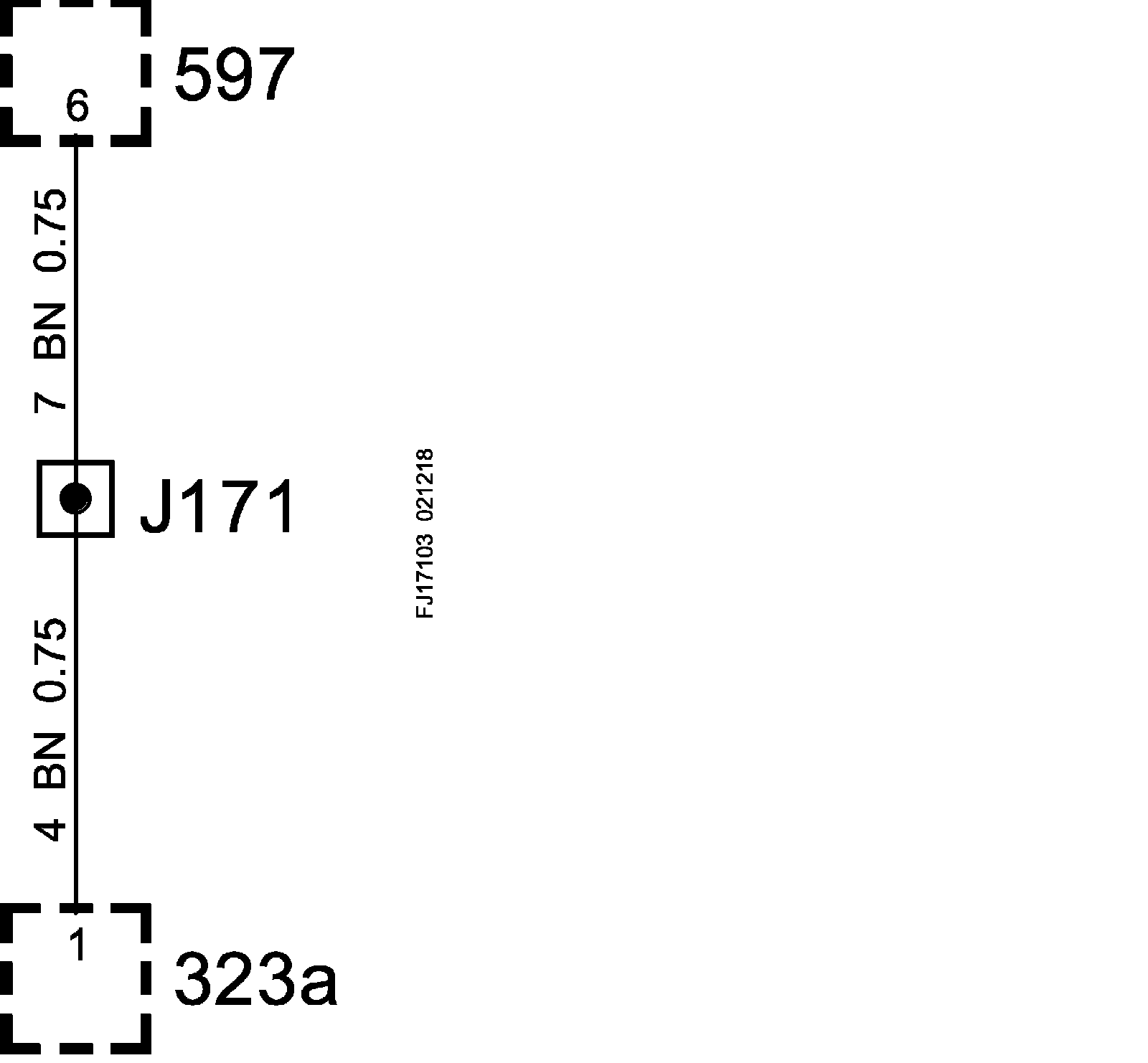

Crimp Connection J171, Parking Heater Wiring Harness:

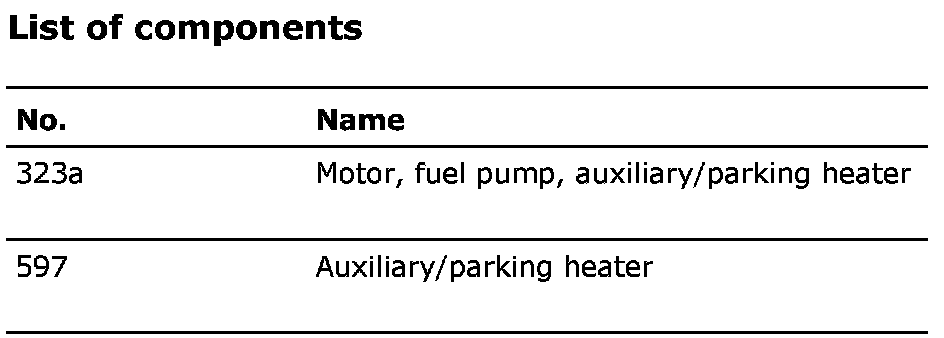

List Of Components:
