Crimp Connection J170, Parking Heater Wiring Harness



Location: Approx. 60 mm from branching point parking heater towards grounding point G30A

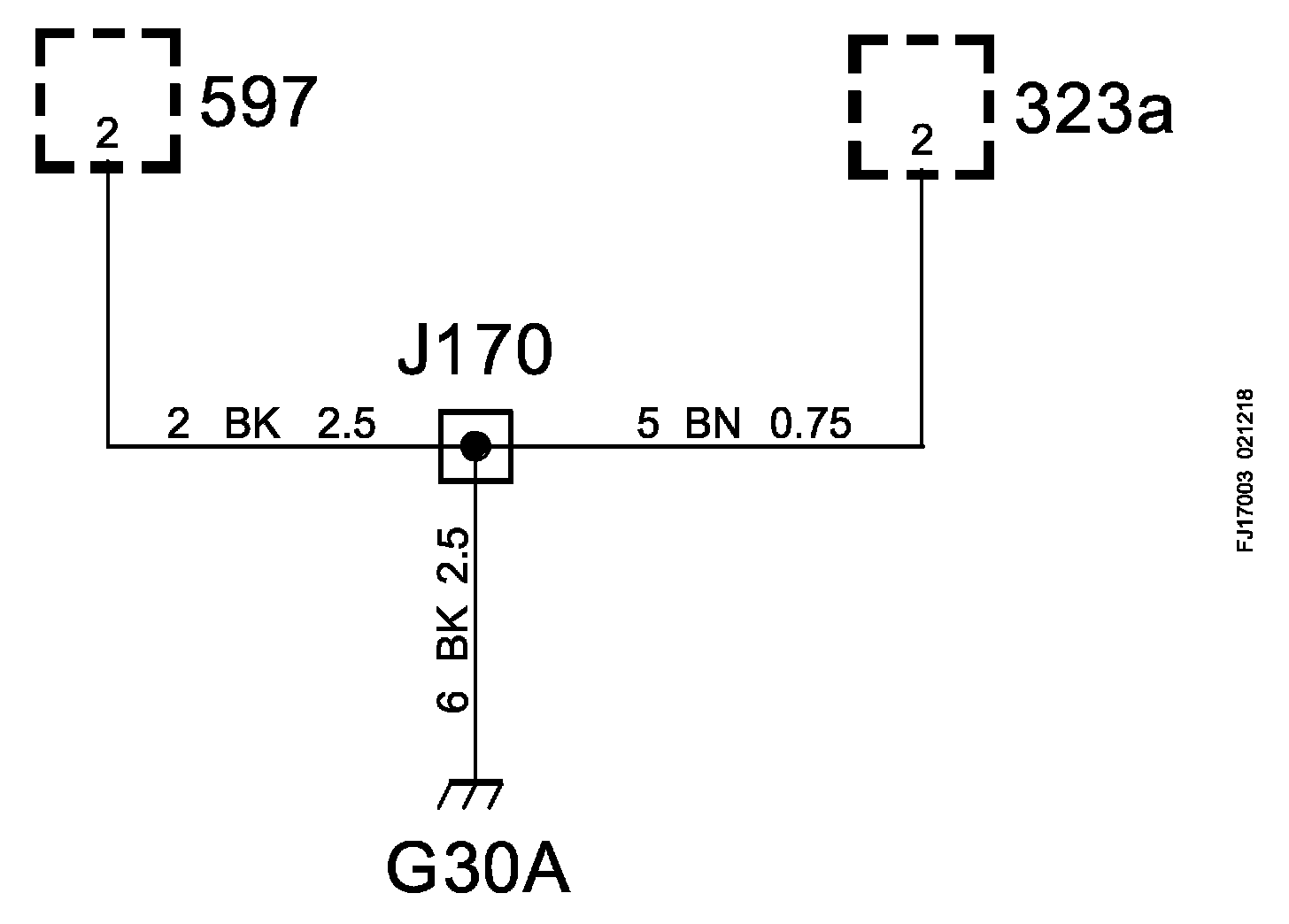

Crimp Connection J170, Parking Heater Wiring Harness:

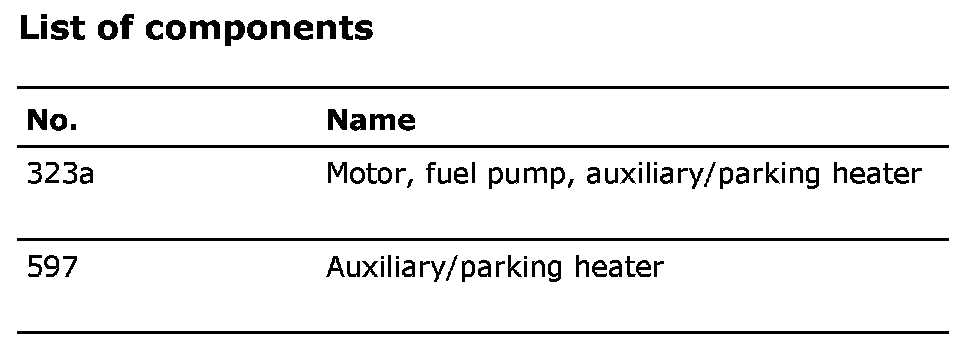

List Of Components:
