Crimp Connection J146, Main Wiring Harness 4D/5D



Location

4D: Approx. 380 mm from the REC

5D: Approx. 50 mm from branching point grounding point G3 towards REC

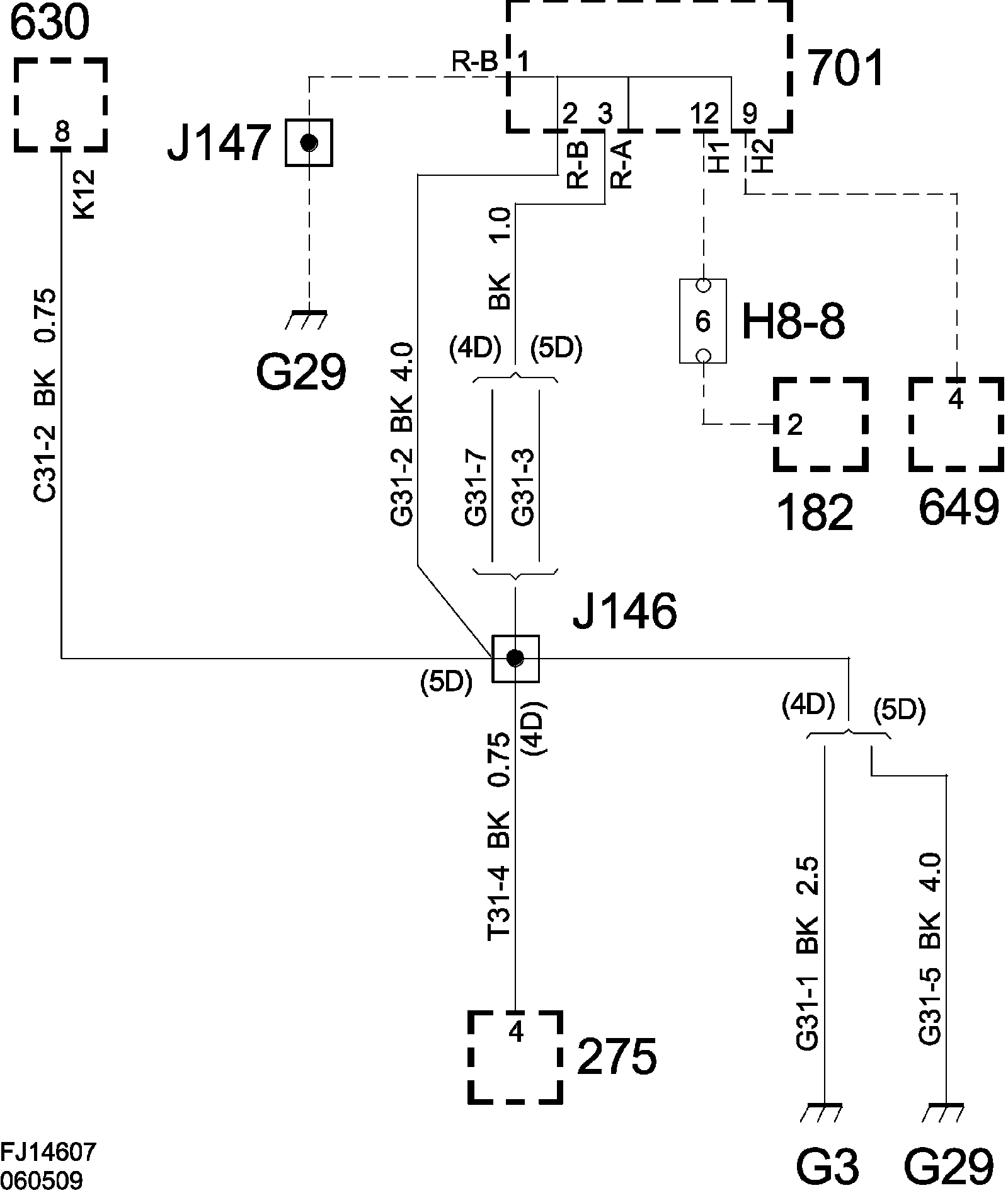

Crimp Connection J146, Main Wiring Harness 4D/5D:

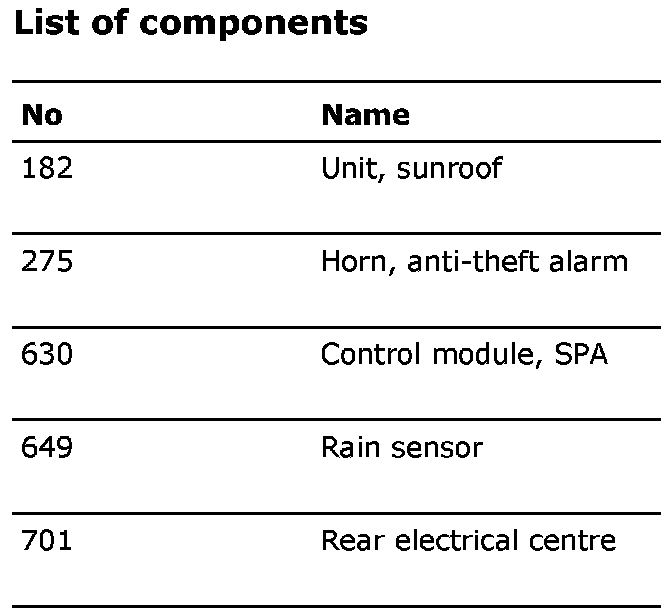

List Of Components:
