Crimp Connection J107, Main Harness



Location:

4D: Approx. 70 mm from connector K16A of OnStar control module

5D/CV: Approx. 30 mm from connector K16A of OnStar control module

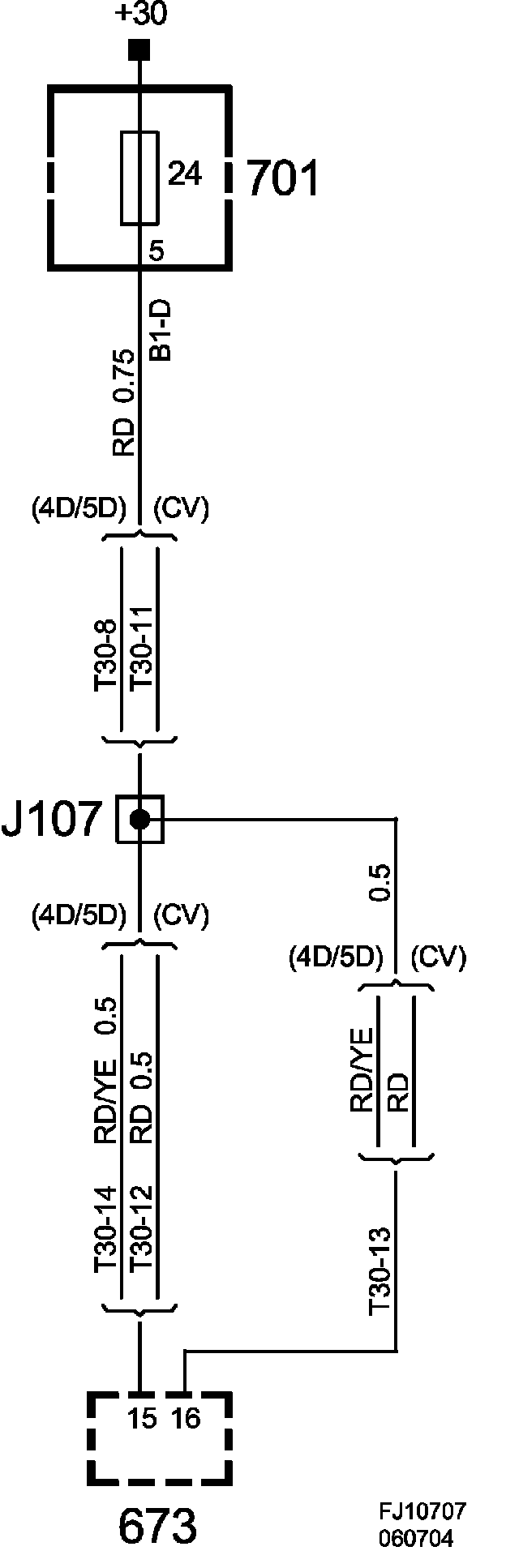

Crimp Connection J107, Main Harness:

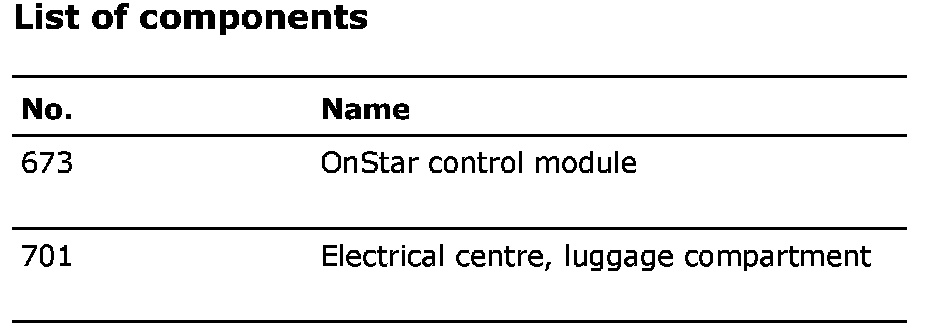

List Of Components:
