Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Seat Connectors In Numeric Order >> 357b >> Convertible

Convertible

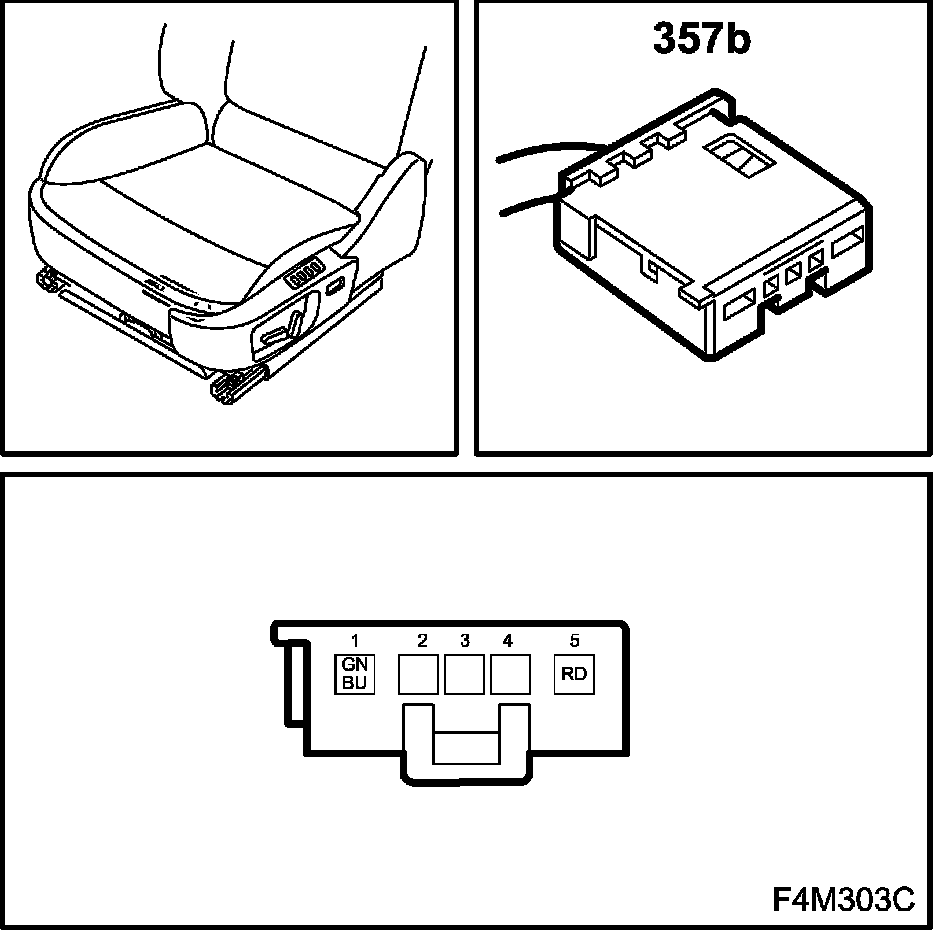

Motor, Slope Adjustment, Electrically Operated Seat (357b) - LH

Location: Under the seat cushion.
