Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Seat Connectors In Numeric Order >> 357Da >> Sedan and Wagon (SportCombi)

Sedan and Wagon (SportCombi)

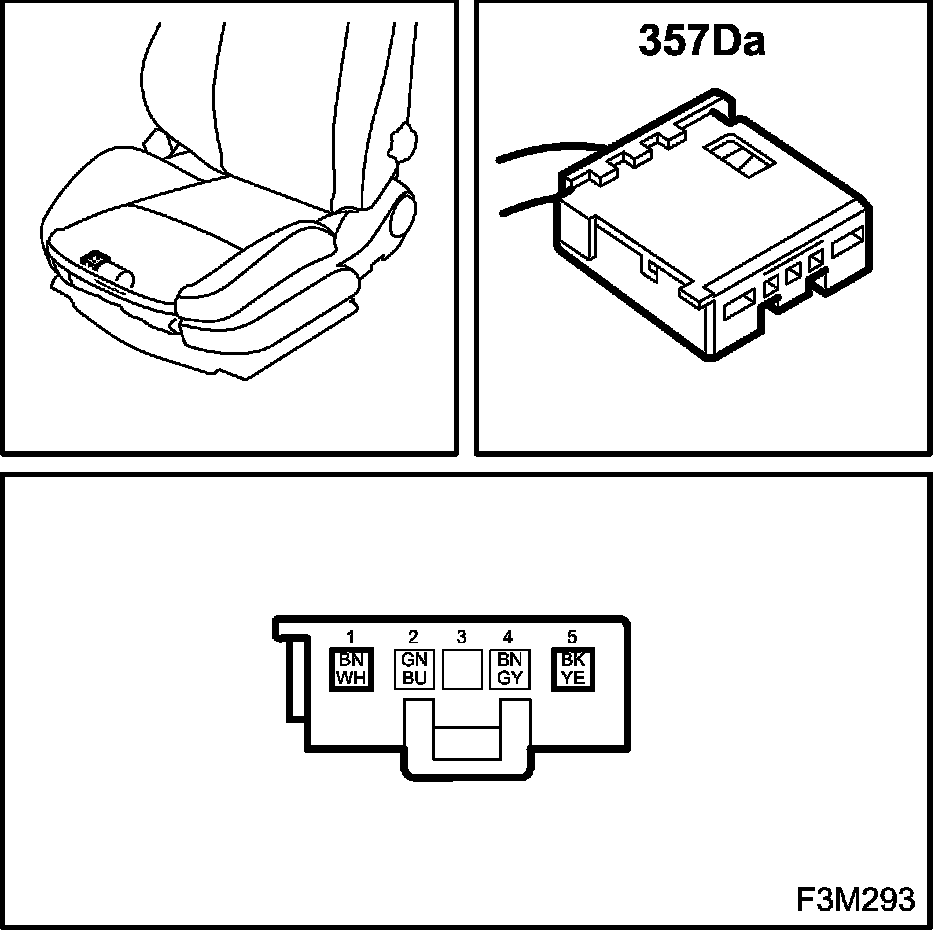

Motor, Length Adjustment, Electrically Operated Seat (357Da) - LH

Location: Under the seat cushion.
