Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Seat Connectors In Numeric Order >> 357D (uppercase D is a switch) >> Convertible

Convertible

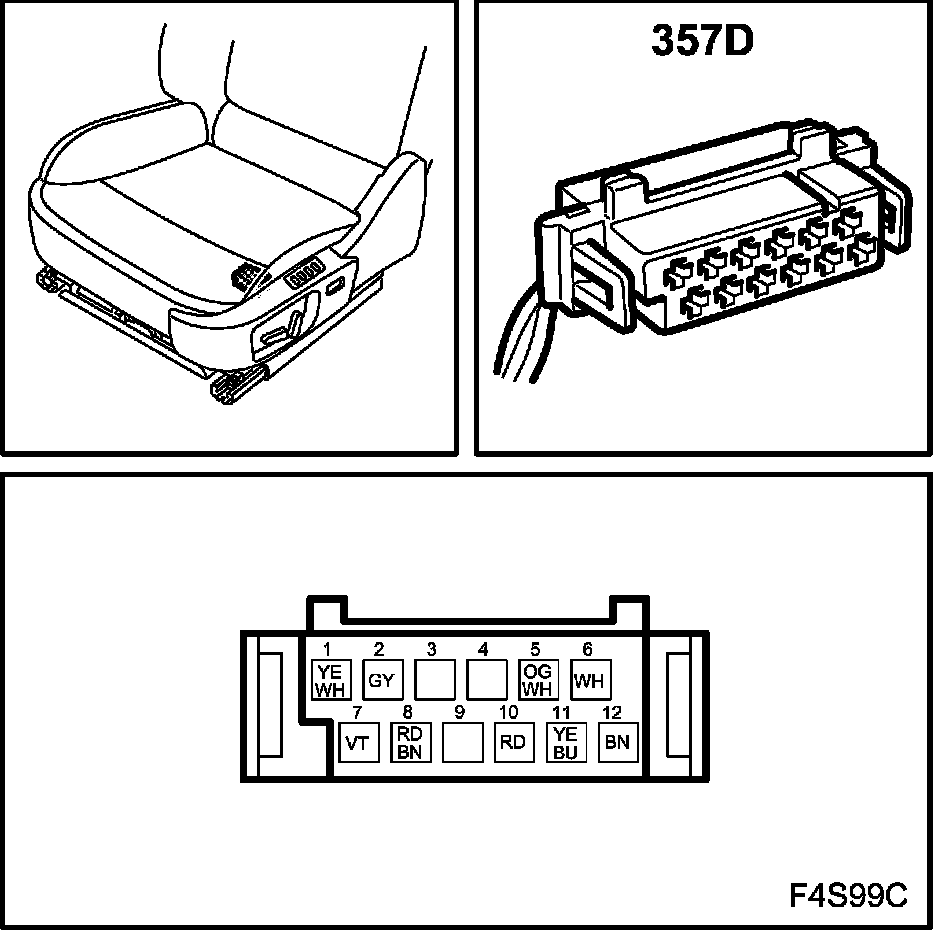

Switch, Power Seat (357D) - LH

Location: On the outside of the seat towards the door.
