Home
>>
Saab
>>
2007
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>

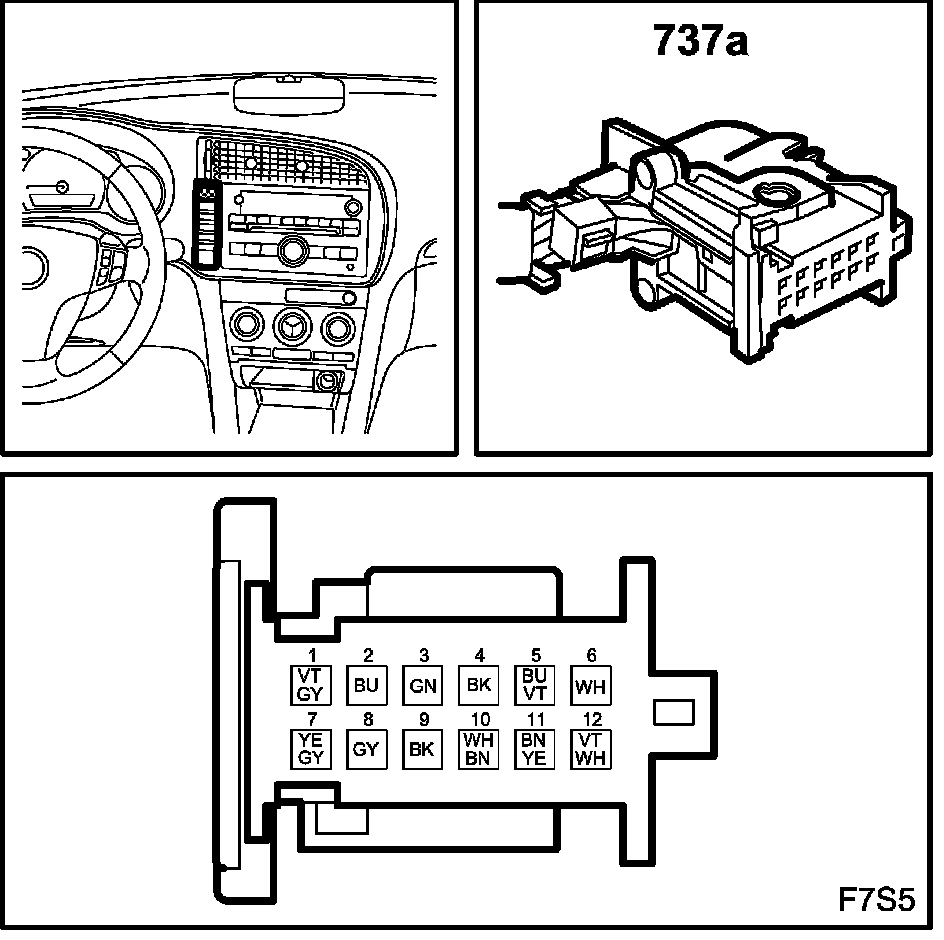

Switch Panel (737a)
Switch Panel (737a)
Switch Panel (737a)
Location: On the dashboard panel next to the main instrument unit.
